Automatic Wire Rod Peeling Machine
Introduction
1. Main Parts
Automatic Loader 1 set
Horizontal & Vertical Straightening Machine 1 set
Semi-auto / CNC Peeling Machine 1set
Bending Machine 1set
Automatic Unloader 1set
2. Technology
Automatic Loader → Straightening → Peeling → Bending → Automatic Unloader

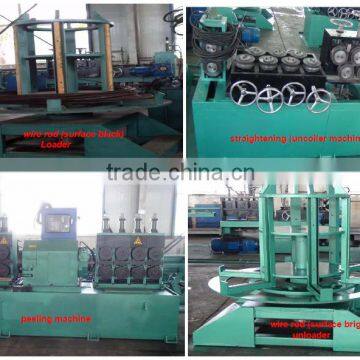

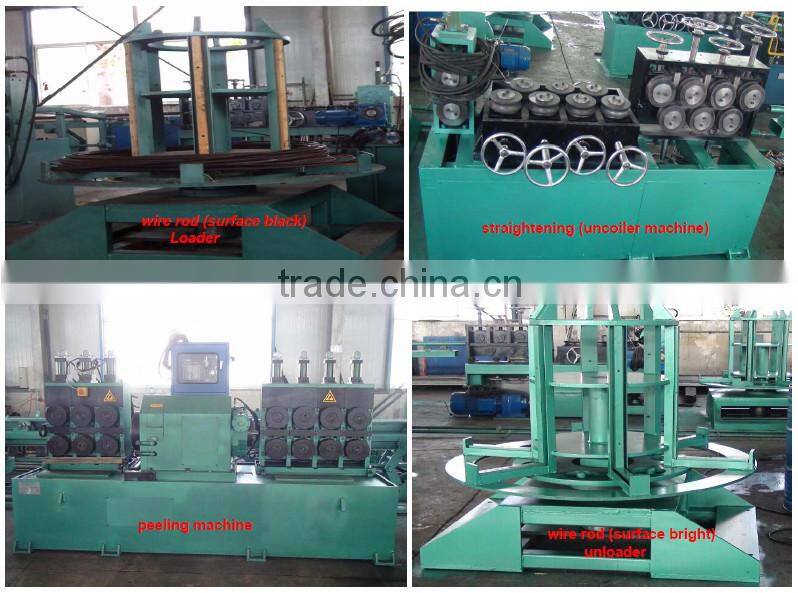

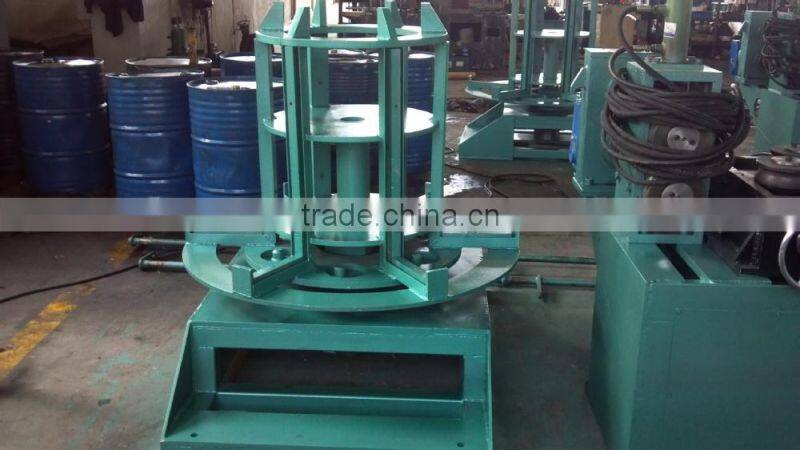

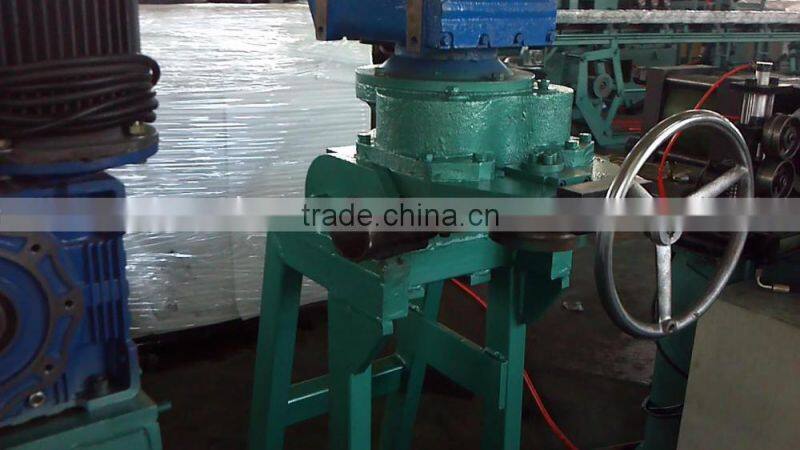

Show of The Machine
Main Technical Parameters
Specification |
KP25 |
|
|
Requirements before Peeling
|
Diameter range(mm) |
Φ8~Φ25 (without dead bending ) |
Yield strength σb(Mpa) |
≤900 |
|
Surface hardness |
≤HB320 |
|
Requirement for curvature(mm/m) |
peeling≤1. 5 but no dead blend |
|
Diameter tolerance |
d-2-GB/T702-2004 |
|
Roundness |
≤50% of diameter tolerance |
|
Surface roughness(Ra) |
≤25mm |
|
|
After Peeling
|
Dia peeling depth(mm) |
0.5~1.5 |
Diameter range(mm) |
Φ7.5~Φ23.5 |
|
Diameter tolerance |
≤IT10 |
|
Surface roughness(Ra) |
≤6.3μm |
|
Roundness (mm) |
≤0.03 |
|
Speed(stepless speed) |
1.0~8.0 m/min |
|
Motor of uncoiler machine |
15kw |
|
Feeding motor(uncoiler machine) |
2.2 kw |
|
Main motor (centerless lathe) |
45 kw |
|
Feeding motor (centerless lathe) |
4 kw x 2 |
|
More information, feel free to contact me by following:
Lily Wan
