Machine Stripping Copper Wire

Name: Machine Stripping Copper Wire
Brand: haige
SKU: 104601927
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New, New

Type:

Other, Horizontal, wire rod to wire rod

CNC or Not:

Normal

Yantai Haige Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao seaport

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Horizontal, wire rod to wire rod

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter dia 25mm

Place of Origin Shandong, China

Brand Name haige

Model Number KP25

Voltage 380V/440V

Power(W) 75KW

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

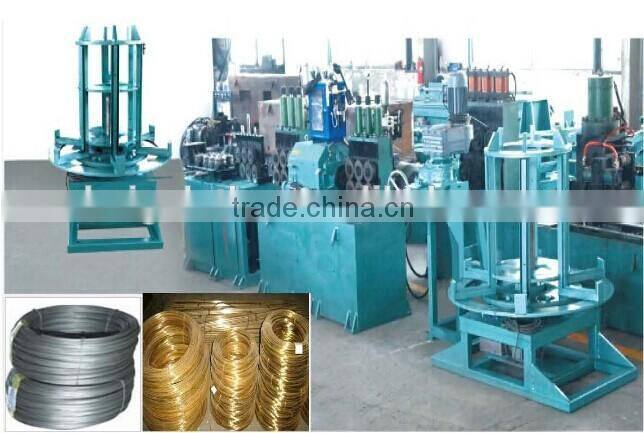

machine stripping copper wire

from wire rod to wire rod

1. composition parts

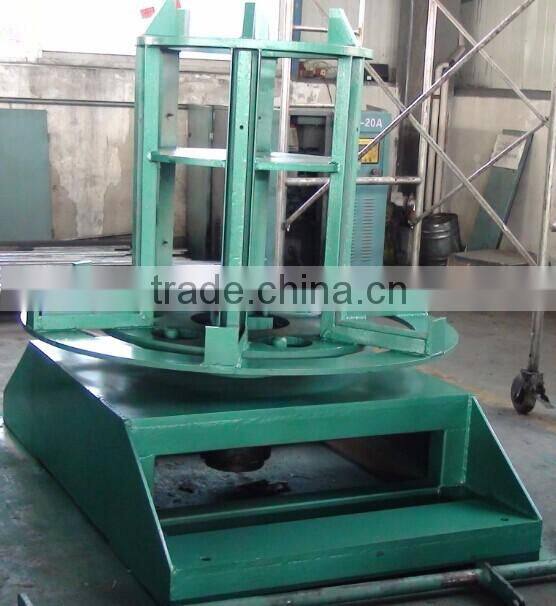

Loader 1 set

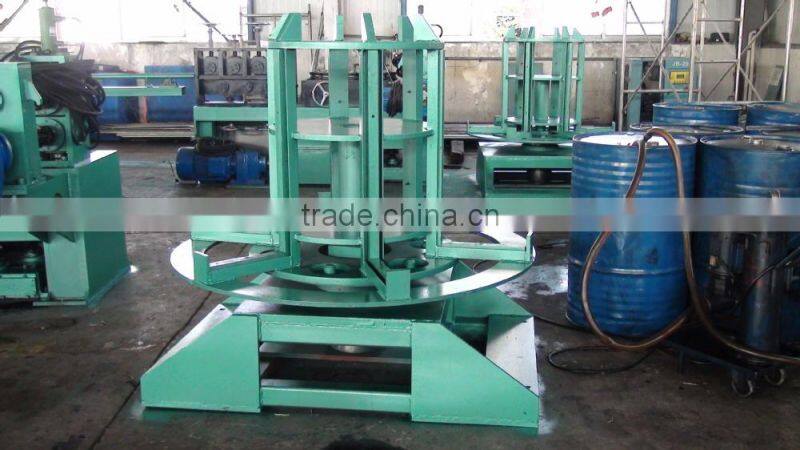

Uncoil machine 1 set

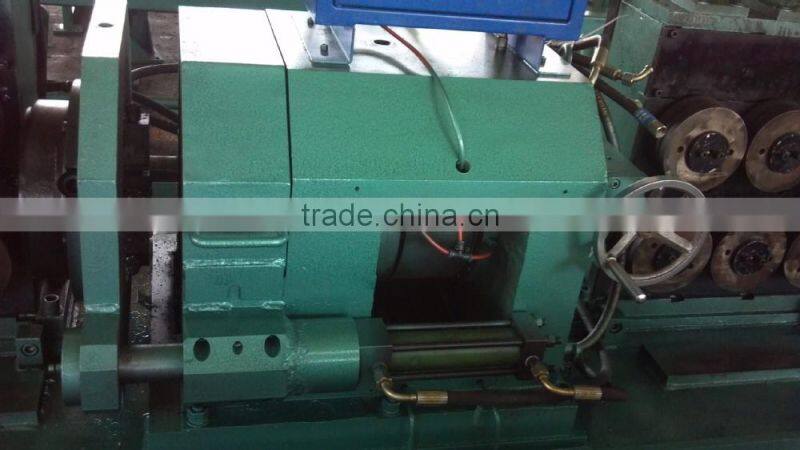

Peeling machine 1set

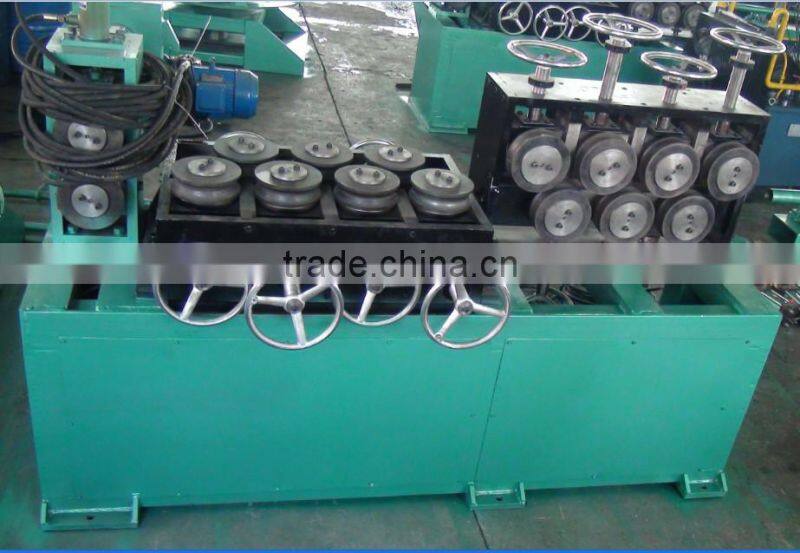

Pre-bending device 1set

Unloader 1set

2. Process Description

Loader→Uncoil machine→Centerless lathe→Pre-bending→Unloader

Main Technical Parameters

Specification		KP25
Requirements before Peeling	Diameter range(mm)	Φ8~Φ25 (without dead bending )
	Yield strength σ_b(Mpa)	≤900
	Surface hardness	≤HB320
	Requirement for curvature(mm/m)	peeling≤1. 5 but no dead blend
	Diameter tolerance	d-2-GB/T702-2004
	Roundness	≤50% of diameter tolerance
	Surface roughness(Ra)	≤25mm
After Peeling	Dia peeling depth(mm)	0.5~1.5
	Diameter range(mm)	Φ7.5~Φ23.5
	Diameter tolerance	≤IT10
	Surface roughness(Ra)	≤6.3μm
	Roundness (mm)	≤0.03
Speed(stepless speed)		1.0~8.0 m/min
Motor of uncoiler machine		15kw
Feeding motor(uncoiler machine)		2.2 kw
Main motor (centerless lathe)		45 kw
Feeding motor (centerless lathe)		4 kw x 2
