round copper bar centerless lathe with good quality
Series WXC centerless lathe is the highefficiency lathe which is specialized in rough
and precise processing of the metal bars surface. It removes the decarburized layer,
cracks and other defects from the surface of the bars with high precision.In the working
process, the metal bar doesn’t rotate and just walks forward. The cutter tools are driven to
rotate by the cutter head to rotate fastly to peel the surface of the bars.
Advantages compared with the general lathe
1. The over-long metal bars or the wire rods can also be processed.
2. The precessing speed: 1~12m/min which is several times faster than the general lathe.
3. High precision. The diameter tolerance ≤IT9 while the surface roughness ≤6.3μm after peeling.
The surface roughness can be less than 0.8μm if our straightening machines are used afterward.
Technical Parameters
Specification |
WXC80S |
|
Before Peeling |
Diameter Range(mm) |
Φ21~Φ85 |
Raw Material Length(mm) |
≥2200 |
|
Tensile Strength (M pa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-88 second group |
|
Roundness |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25~50μm |
|
After Peeling |
Diameter Range |
Φ20~Φ80 |
Unilateral Cutting Depth (mm) |
0.35~1.50 |
|
Diameter Tolerance |
≤IT9 |
|
Surface Roughness(Ra) |
≤3.2μm |
|
Roundness |
≤0.3mm |
|
Feeding Cutting Speed(m/min) |
1.0-10.0 (reduce feed speed for continuous chips materials) |
|
Cutter Head Rotational Speed(rpm) |
290~800 (Six Poles) |
|
Main Machine Motor(KW) |
75 |
|
|
Main Machine Size (Length*Width*Height) |
3.5m X 3.5m X 2.4m |
|
Main Machine Weight (T) |
8.5 |
|
Total Capacity(KW) |
95 |
|
Compressed Air Supply |
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil- water separator and compressed air freezing drier |
|

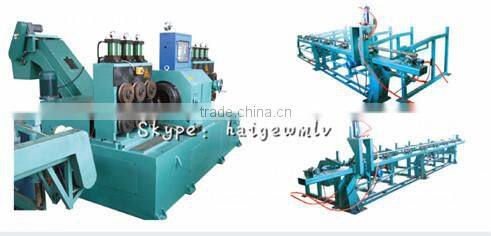

Equipment Show
Composition
The equipment is usually composed of main machine and the table bed.
Main machine
consists of bed,spindle, air/oil
lubrication system,front-clamping
feeding system,rear-clamping
extracting system,front guide and
middle-rear guide system,etc.
Table bed
consists of the loader and unloader.

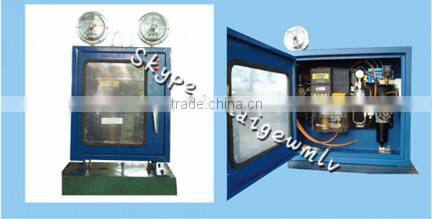

The air/oil lubrication system
is specially designed to lubricate
and cool the spindle bearings
during their highspeedrotation.
It is composed of pump, oil and air
distribution block and air source
processing unit.

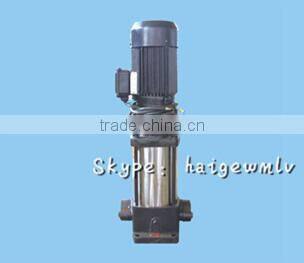

Cutting fluid circulation
cooling system
consists of circulating water pump,
pipeline, nozzle,etc.The cooled cutting
liquid is taken by the water pump from
reservoir to the nozzle nearthe cutter
head through pipeline and sprays
on the tools and scraps. Thus it takes
away the cutting heat and drops into
chip mouth with the scraps under the
cutter head and flows back to the
reservoir through the pipeline to be
cooled.

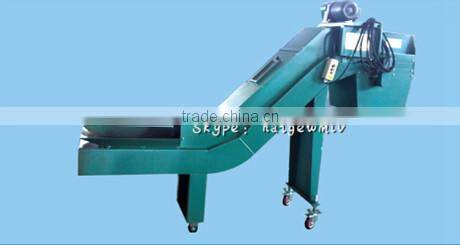

Chip conveyor
is provided by our outsourcing
supplier. The scraps falls onto the
chain plate through the chip mouth
under the cutter head and they are
taken out by transmission and
collected intensively.

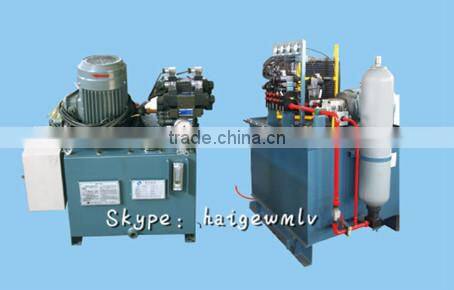

Hydraulic system
consists of motor pumps, control
valves, hydraulic oil tank, hydraulic
pipeline etc.Clamping and loosening
bars are realized through the
cylinders in the front-clamping
feeding and rear-clamping extracting
systems.

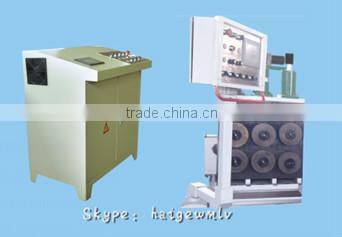

The electrical system
includes power supply system and
controlling system, integrated by 1
power distributioncabinet and 1
button station,realizing the electric
control of the main transmission,
front- clampingfeeding system, rear- clamping extracting system,cooling
system, hydraulic system, conveyor
and the table bed.
A. Warranty period: 1 year,except for fast-wearing parts
B. Reply your enquiry in 24 working hours
C.Customized design is available. OEM& ODM are welcomed.
D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.
E.Special discount can be provided to our distributor.
Yantai Haige Machine Tools Co., Ltd is a professional company in
manufacturing of *Round metal bar peeling machine
(used to quickly remove the rusted layer, cracks and other defects from the surface of the round black bars)
*Round metal bar straightening machine
(used to straighten and calender the metal bars after peeling)
*Skiving roller burnishing machine
(used to process the inner wall of the cylinder or the metal tube/Pipe)
*Piston rod polishing machine
|
