Main Technical Parameters of WXC100S Metal Bar Peeling Machine
Specification |
WXC100S |
|
|
RAW
|
Diameter Range(mm) |
Φ25~Φ100 |
Raw Material Length(mm) |
≥3000 |
|
Tensile Strength (Mpa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25~50mm |
|
|
FINISHED
|
Diameter Range |
Φ24~Φ98 |
Unilateral Cutting Depth (mm) |
0.5~2 |
|
Diameter Tolerance |
≤h9(standard tolerance grade) |
|
Surface Roughness(Ra) |
≤6.3μm |
|
Roundness(mm) |
≤0.04 |
|
Feeding Cutting Speed(m/min) |
0.5~5(for continuous chips and high strength and hardness should reduce the speed) |
|
Cutter Head Rotational Speed(rpm) |
240~670(Six Poles) |
|
Host Machine Motor Power(KW) |
90 |
|
Auxiliary Machine Motor Power(KW) |
7.5(clamping and feeding)+7.5(Carriage) |
|
|
Host Machine Outline Dimensions (Length*Width*Height) m |
4.4m X 3.0m X 2.5m |
|
|
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m |
16m X 3.2m X 2.2m |
|
|
Host Machine Weight (including auxiliary weight) (T) |
13.5 ( 20.2) |
|
Total Capacity(KW) |
130 |
|
|
Compressed Air Source (user prepare by themselves) |
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier. |
|
All-round service
Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine’s features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.
Semi-automatic Hydraulic Peeling Machine
CNC Bar Peeling Machine
During processing,the bar itself doesn’t rotate.The cutter head drives the tools rotating at high speed to peel the surface of the bar.After peeling,the bar keeps walking straight ahead.
A. 12 months Warranty period.
B. 24 hours welcome to your enquiry.
D.Engineers can offer overseas service,including
overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
Factory Introduction
Yantai Haige Machine Tools Co.,Ltd. was built in 1997,which is mainly producing series WXC Centerless Lathe(Bar Peeling Machine),Series JY Bar Straightening Machine,Abrasive Belt Grinder (Belt Sander Polishing Machine) and auxiliary machine,etc.
We regard Customer’s Satisfaction as our unremitting pursuit.
Based on more than ten years manufacturer and design experience,our machine have been exported to Russia,Vietnam,India,Korea and other countries and regions.
Factory real landscape
Processing Machinery
Accessories Area
Administrative Area

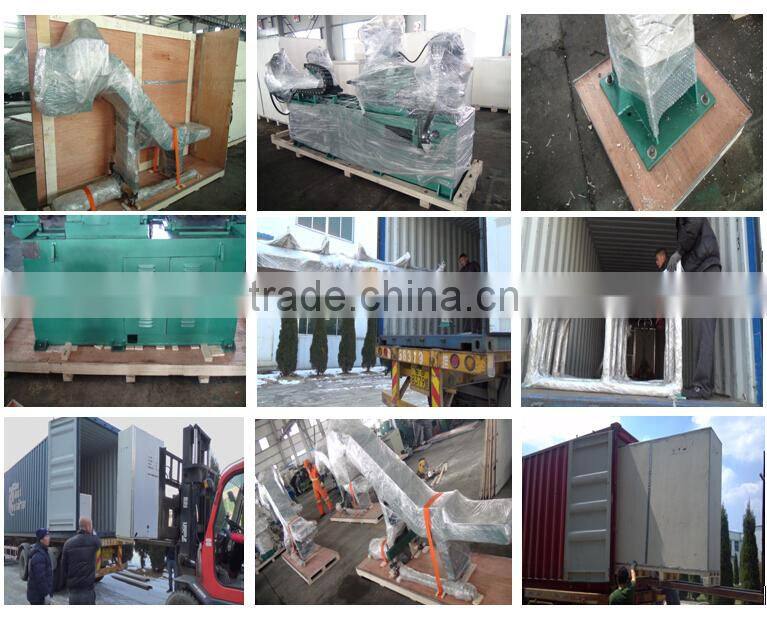

Inside taking multi protection measures:
The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.
Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.
Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.
Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.
Outside wooden case with export fumigation
Any questions,please feel free to contact me.I will give you soon reply.
