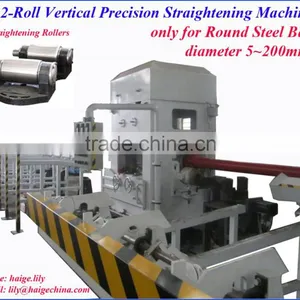

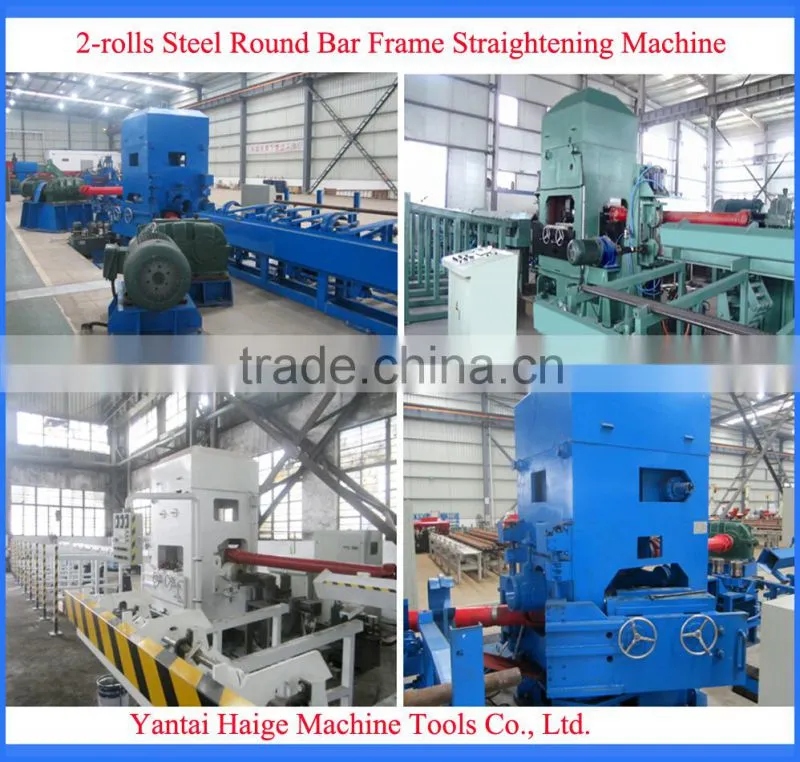

Round Steel Bar Straightener
Series JY straightening machine, this machine is mainly used for precision straightening and roll calendering for the bar after peeled or grinded and rough pre-straightening for the black bar.
Due to straightening and roll calendering can be completed at the same time, so that the working efficiency is high.
Principle of Operation

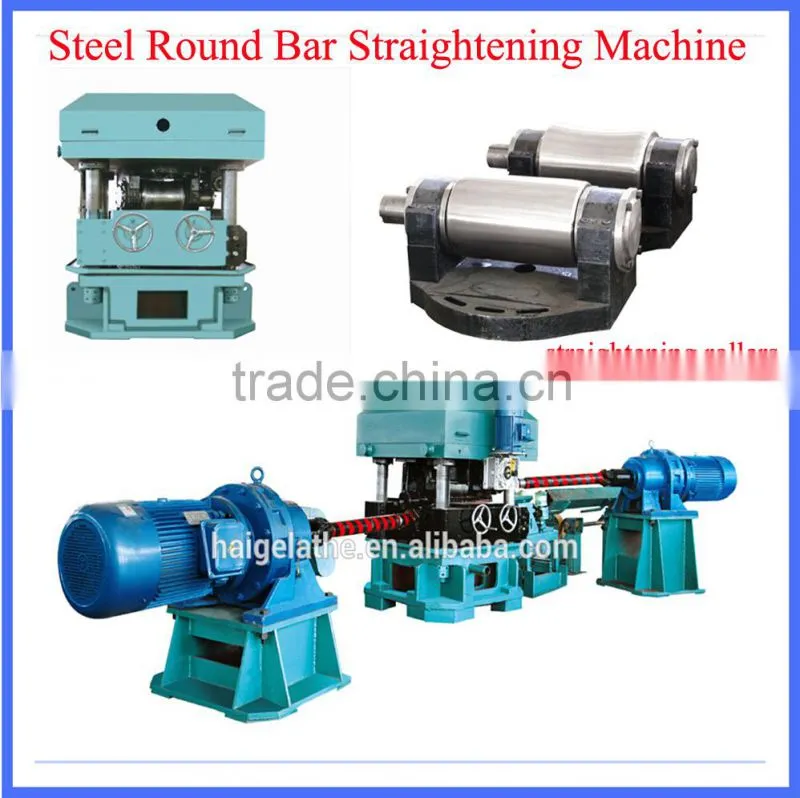

The machine adopts special curve between upper and lower concave and convex two straightening rolls to realize straightening and roll calendering at the same time.
Machined Components, Pump Shafts, Valves, Fasteners, Machine Tools, Dairy Equipments, Surgical & Medical Parts, Threaded Bars, Studs, Bolts, Pins, Hinges and Handles.
we have much experience in exporting transportation packaging.
Taking multi protection measures:
The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.
Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.
Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.
Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.
