Help CenterNTS300 Common Rail Test Bench
US$ 3,000 - 4,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
NANTAI
Model Number:
NTS300
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bosch Common Rail Test Bench CR3000A-708,common Rail Test BenchUS$ 1,000 - 7,000MOQ: 1 Set -
Best Advanced Common Rail System Test Bench CR3000AUS$ 5,000 - 8,000MOQ: 1 Set
-
CRS300 Common Rail Pump and Common Rail Injector Test BenchUS$ 1,000 - 4,000MOQ: 1 Set
-
CRS3 Common Rail Injector and Common Rail Pump TesterUS$ 3,000 - 5,000MOQ: 1 Set
-
EPS100 Common Rail Injector Test BenchNegotiableMOQ: 1
Place of Origin
China
Brand Name
NANTAI
Model Number
NTS300
Power
Electronic
Usage
Auto Testing Machine

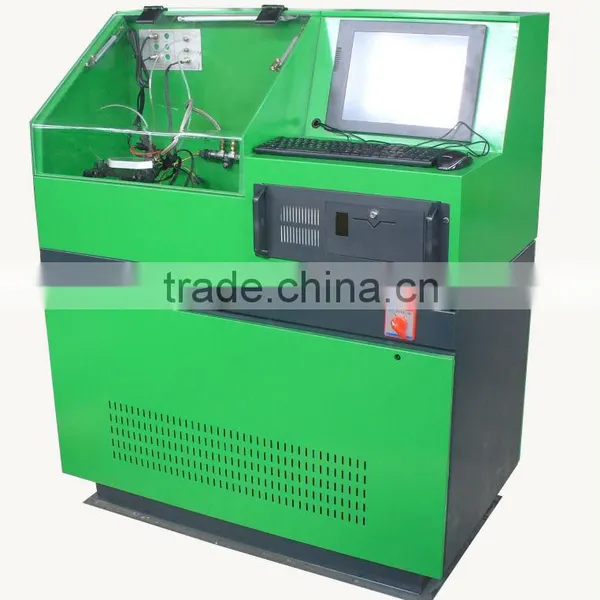

NTS300 COMMON RAIL INJECTORS test bench is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH(DENSO) original common rail pump to provide 0~1600 bar for rail pressure(DENSO). The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement and convenient operation.
CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 400 kinds of injecotors data can be searched and used.
4. It is installed BOSCH(DENSO) common rail pump to provide 0~1600 bar for denso rail.
5. Rail pressure can be tested in real time
6. Provide pressure overload protect by DENSO rail.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise
TECHNICAL PARAMETER
1. Pulse width: 0.1~20ms
2. Continuous injection times: 0~100
3. Fuel temperature: 40±2°C
4. Rail high pressure: 0~1600 bar
5. Test oil filtered precision: 5μ
6. Input power: 380V/50hz/3phase or 220V/60hz/3phase
7. Rotation speed: 0~3000RPM
8. Oil tank capacity:16L
9. Weight:300KG.
