Home > Products > Steel bar straightening machine > china two-rolls straightening machine for steel round bar frame structure

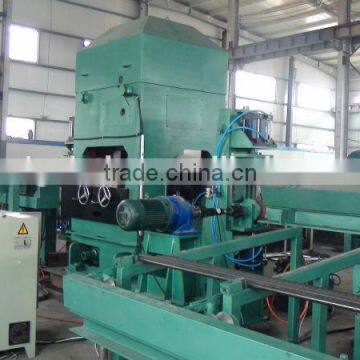

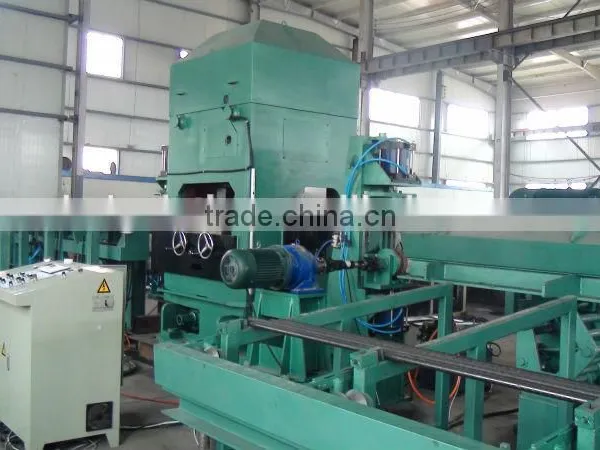

china two-rolls straightening machine for steel round bar frame structure

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Qingdao seaport
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, metal bar straightening machine
Use	Other, straightening for round steel bar	Place of Origin	Shandong, China
Brand Name	haige	Model Number	JY80A (Frame type)
Voltage	380V/440V	Power(W)	100KW
Dimension(LWH)	7.1X2.8X3.0m	Weight	18.5t
Certification	ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

china two-rolls straightening machine for steel round bar

Business Scope

Yantai Haige Machine Tools Co., Ltdis a professional manufacturer of round steel bar ourside diameter peeling machine and surface two-rolls straightening machine and bar automatic production line and cylinder processing equipment.

Including woking videos as follows:

if you can't open the links in you country, please feel free to contact me ---Lily Skype ID: haige.lily

1. Round bar surface peeling turning and straightening machine

/programs/view/Vf-Ii6I7r00/

/programs/view/ykH3aavVHow/

2. Round bar surface processing automtatic production line

/programs/view/gabTXYCHxZA/

/programs/view/9KlXb6WBqso/

3. Cyinder processing equipment, including cnc skiving roller burnishing machine and CNC piston rod polishing machine

/v_show/id_XNzU4NjU3Mzgw.html

4. Automatic single head and double-heads high-speed circular saw machine

/programs/view/hxxKFELuiuU/

5. Automatic double-heads chamfering machine

/programs/view/otte05MnKVs/

Processing Equipment and Scene

Introduction and show of Equipment

Series JY straightening machine, this machine is mainly used for precision straightening and calendering for the bar after peeling or grinding and rough pre-straightening for the black bar.

Due to calendering and straightening can be completed at the same time, so that the working efficiency is high.

The machine adopts sepcial curve between upper and lower concave and convex two straightening rolls to realize calendering and straightening at the same time.

There are three structures,including two-beams and four-columns structure, prestressed structure and frame structure.

Technical Parameters

Specification	JY80A
Requirements	Diameter Range(mm)	20≤dia≤80
	Length(mm)	≥2000
	Surface Hardness	≤HB380(≤HRC42)
	Yield Strength(Mpa)	σb≤450
	Straightness(mm/m)	≤3
	Diameter Tolerance	≤IT10
	Circular Degree	dia≤50	≤50% of diameter tolerance
		50<dia≤80	≤65% of diameter tolerance
		dia>80	≤70% of diameter tolerance
	Surface Roughness(Ra)	3.2μm~6.3μm
After Straightening	Straightness(mm/m)	≤0.40
	Surface Roughness(Ra)	≤0.8μm
	Diameter Tolerance	≤IT8
Straightening speed (m/min)	2~14
Total Capacity(kw)	100
Outline Dimension(m)	7.1X2.8X3.0
