steel bar straightening machine
Business Scope
Yantai Haige Machine Tools Co., Ltdis a professional manufacturer of round steel bar ourside diameter peeling machine and surface two-rolls straightening machine and bar automatic production line and cylinder processing equipment.
Including woking videos as follows:
if you can't open the links in you country, please feel free to contact me ---Lily Skype ID: haige.lily
1. Round bar surface peeling turning and straightening machine
2. Round bar surface processing automtatic production line
/programs/view/9KlXb6WBqso/
3. Cyinder processing equipment, including cnc skiving roller burnishing machine and CNC piston rod polishing machine
4. Automatic single head and double-heads high-speed circular saw machine
5. Automatic double-heads chamfering machine

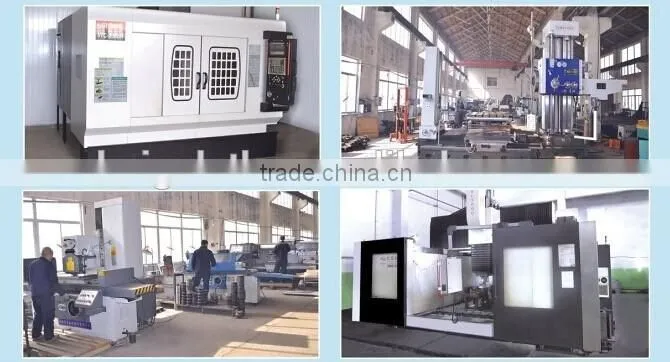

Processing Equipment and Scene

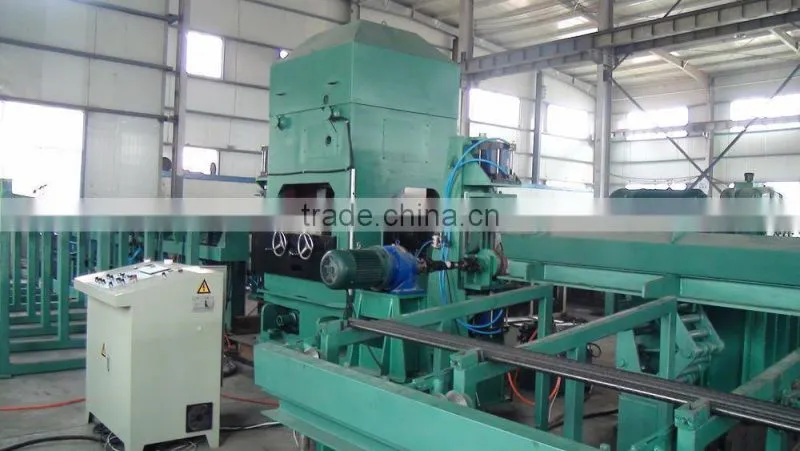

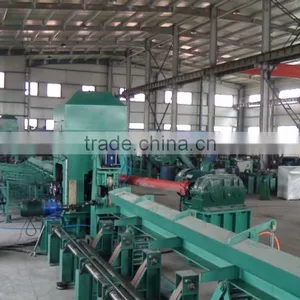

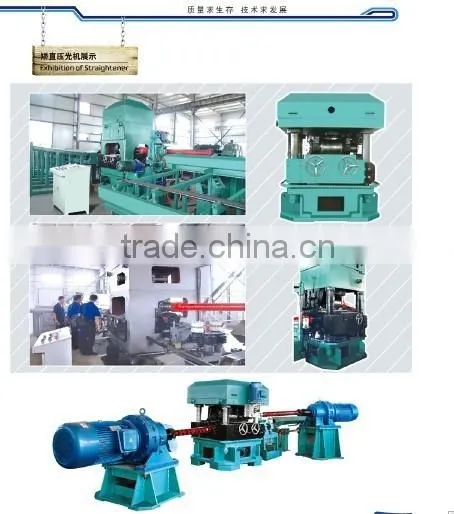

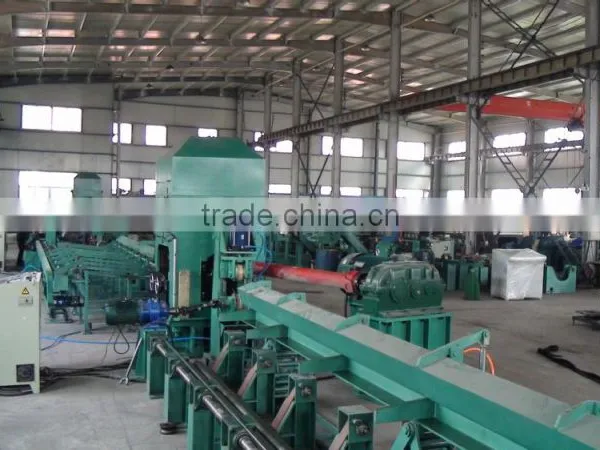

Introduction and show of Equipment
Series JY straightening machine, this machine is mainly used for precision straightening and calendering for the bar after peeling or grinding and rough pre-straightening for the black bar.
Due to calendering and straightening can be completed at the same time, so that the working efficiency is high.

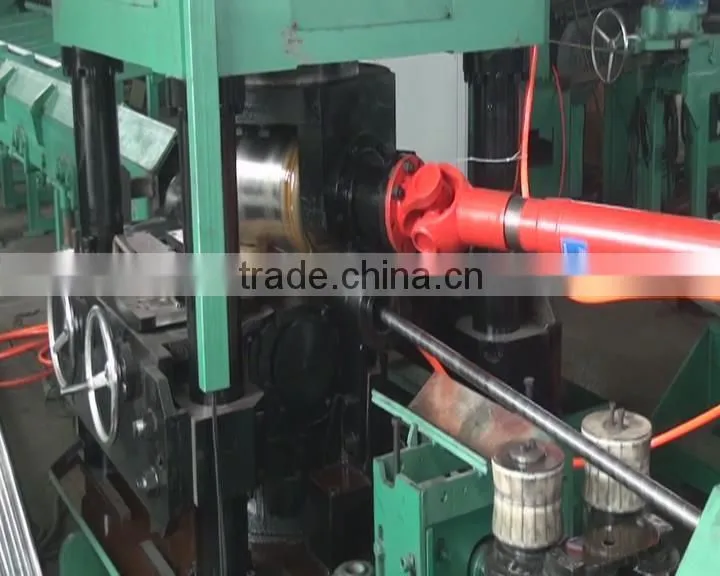

The machine adopts sepcial curve between upper and lower concave and convex two straightening rolls to realize calendering and straightening at the same time.

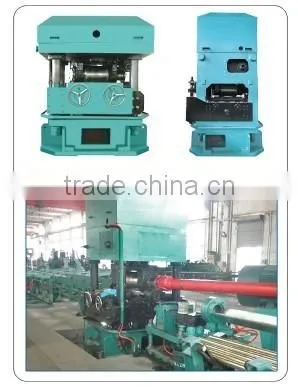

There are three structures,including two-beams and four-columns structure, prestressed structure and frame structure.
Technical Parameters
| Specification | JY80A | ||||
| Requirements | Diameter Range(mm) | 20≤dia≤80 | |||
| Length(mm) | ≥2000 | ||||
| Surface Hardness | ≤HB380(≤HRC42) | ||||
| Yield Strength(Mpa) | σb≤450 | ||||
| Straightness(mm/m) | ≤3 | ||||
| Diameter Tolerance | ≤IT10 | ||||
| Circular Degree | dia≤50 | ≤50% of diameter tolerance | |||
| 50<dia≤80 | ≤65% of diameter tolerance | ||||
| dia>80 | ≤70% of diameter tolerance | ||||
| Surface Roughness(Ra) | 3.2μm~6.3μm | ||||
|
After Straightening |
Straightness(mm/m) | ≤0.40 | |||
| Surface Roughness(Ra) | ≤0.8μm | ||||
| Diameter Tolerance | ≤IT8 | ||||
| Straightening speed (m/min) | 2~14 | ||||
| Total Capacity(kw) | 100 | ||||
| Outline Dimension(m) | 7.1X2.8X3.0 | ||||
More Information, Welcome to contact me by following
Lily wan
