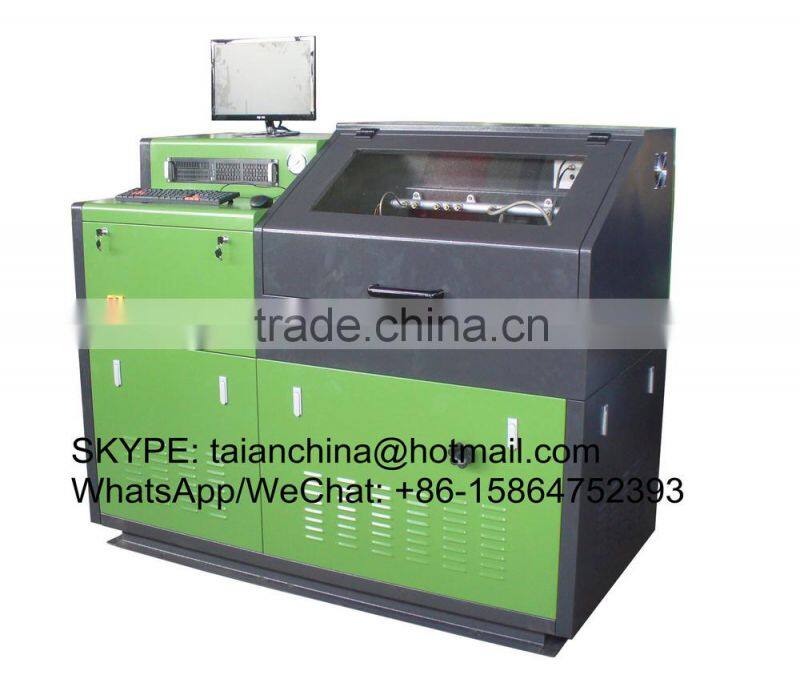

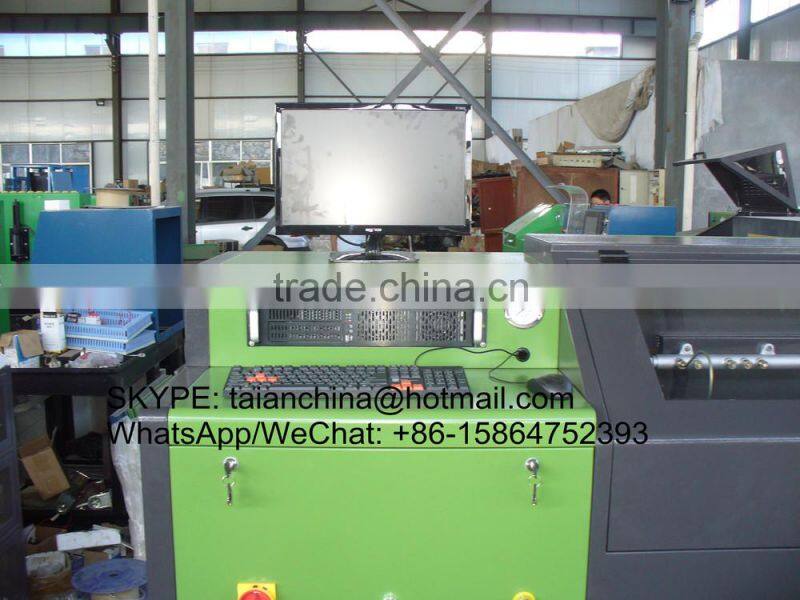

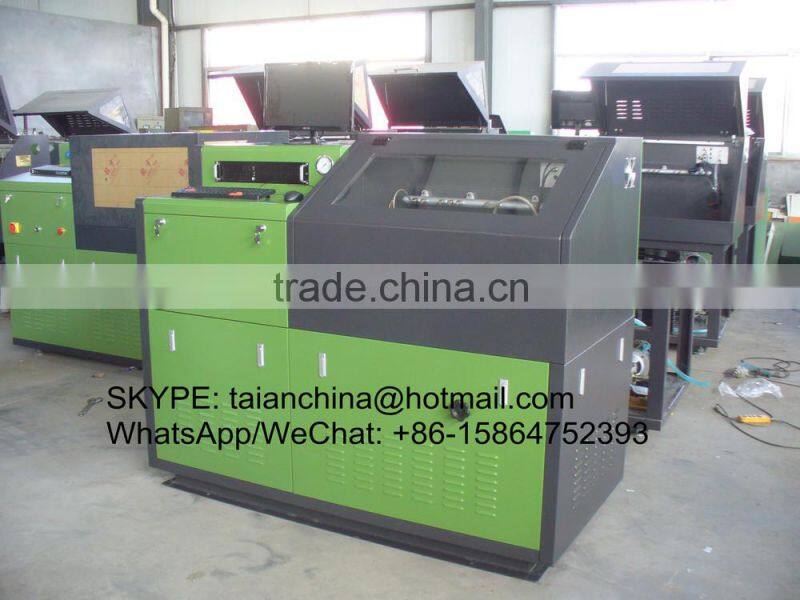

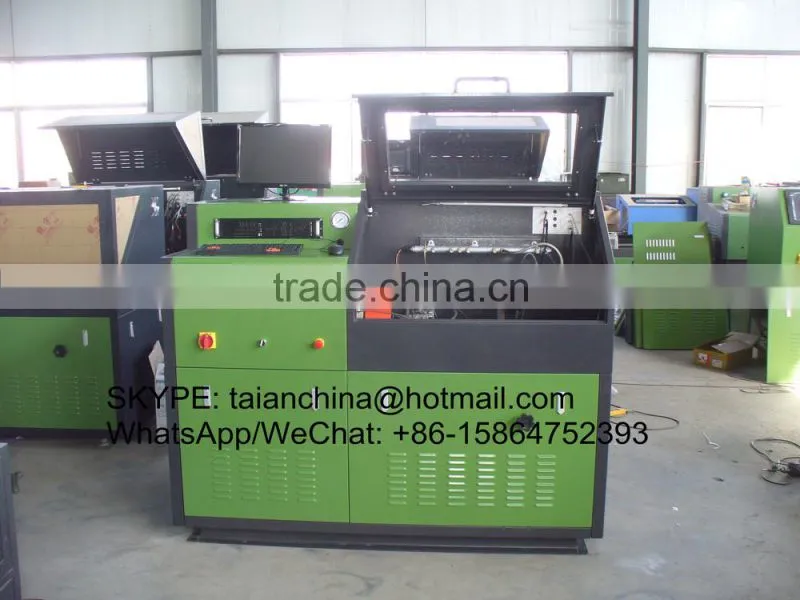

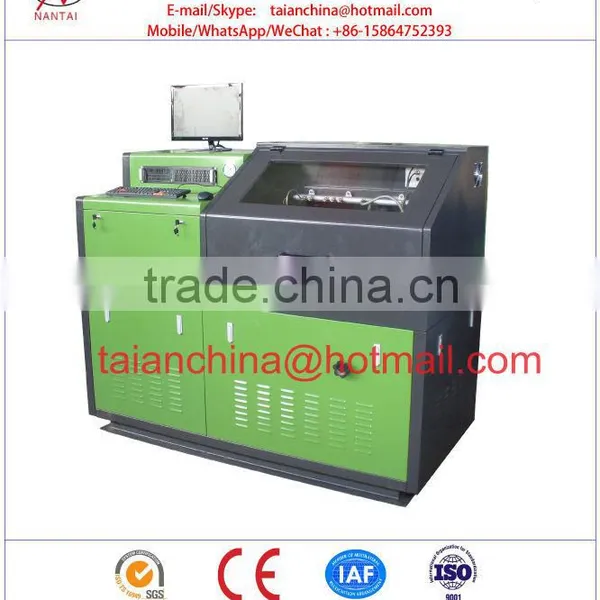

CR3000A Common Rail System Test Bench
US$ 1,000 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Voltage:
220V/380V
Power:
7.5KW,11KW,15KW,18.5KW,22KW
Certification:
CE/ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Common Rail Injector/pump Test Bench CR3000A-708US$ 5,000 - 8,000MOQ: 1 Set -
COMMON RAIL INJECTOR TEST BENCH NTS100US$ 1,000 - 1,800MOQ: 1 Set
-
NTS300 Common Rail Injector Test BenchUS$ 1,000 - 5,000MOQ: 1 Set
-
High Quality! CR3000A Common Rail Diesel Test Bench With CE CertificationUS$ 5,000 - 7,700MOQ: 1 Set
-
CRS300 Bosc/ Denso/ Siemens Common Rail Tester SystemUS$ 3,000 - 4,000MOQ: 1 Set
Voltage
220V/380V
Power
7.5KW,11KW,15KW,18.5KW,22KW
Certification
CE/ISO
Applicable Models
auto car
Brand Name
nantai
Model Number
cr3000a
Warranty
1 Years
Interface:
Optional Fuction:

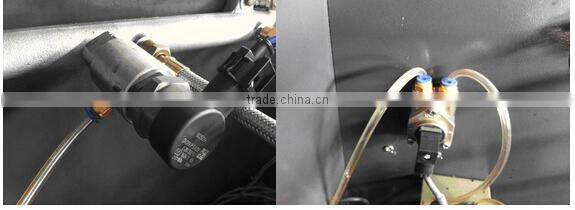

1,One flow sensor(Injection,return oil.turn test)
2, Two Flow Sensors(Recommend,test fast,Injection,return oil ,test at the same time)
3,Weight Sensor(Many injectors can tested at the same time,Test easily and quickly,Low requirements on temperature and oil quality)

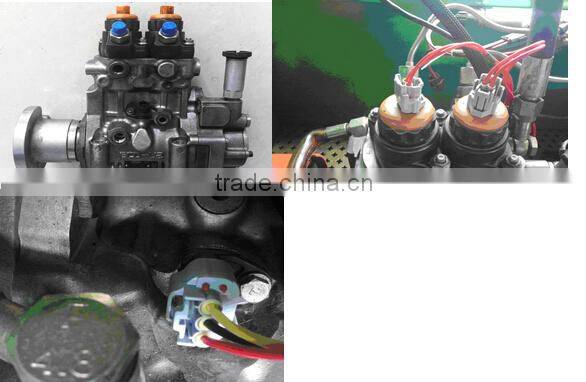

4,DRV Valve And Pump Delivery Sensor,Used in CR PUMP Testing.
5,Can Test Denso HP0 pump.
6, Can Test Bosch,Siemens piezo Injectors
7,With BOSCH CP1 PUMP
8,Injectors Mounting bracket, convenient and reliable injector clamping
CR3000A-708 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system,
can test common rail pump,common rail injector at same time.
1,Pump testing: pump delivery, pressure,PVC working status, leakage of itself,
2,Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
3,it can test pressure sensor,and DRV valve
4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS

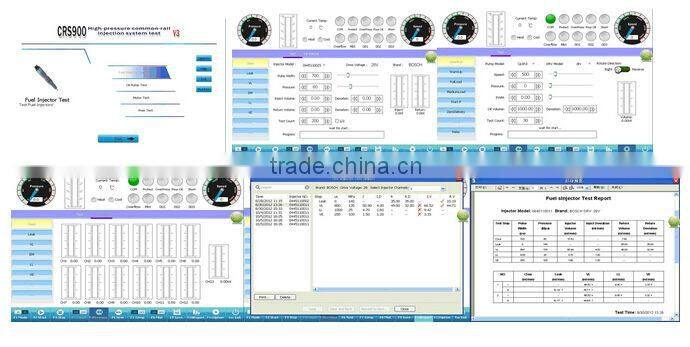

5. Testing data inside( pump and injector)
6. Electronic fuel delivery measuring, automatic detection.
Technical parameters
1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
1,Pump testing: pump delivery, pressure,PVC working status, leakage of itself,
2,Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
3,it can test pressure sensor,and DRV valve
4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS
5. Testing data inside( pump and injector)
6. Electronic fuel delivery measuring, automatic detection.
Technical parameters
1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
