1. Introduction
1.1 Description

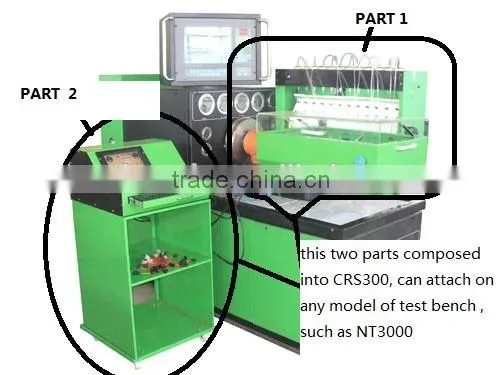

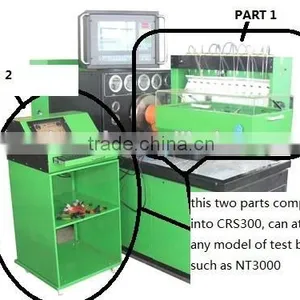

CRS300 COMMON RAIL TEST BENCH is the professional tester which is used for testing common rail system, can finish the high-pressure common rail system functional testing. It can install on any model of the test bench, such as 12PSB-III, NT3000 etc... which produced by us or other factory.
1.2 System Application:
The system is suitable for detection of BOSCH, DENSO and DELPHI common rail pump and injectors. Such as CP1, CP2, CP3, HP3 series injector pump and the type of Electromagnetic injectors.
Technical parameters
- Fuel Injector open voltage
l Control range: 12v, 80v
l Control accuracy: phase adjustment
- Injector opening frequency control: 0-1000HZ
l Control accuracy: 1HZ
- Fuel injector hold time
l Control range: 0-65535us
- Delivery oil count
l Control times: 0-1000times
l Control accuracy: 1 times
7. Fuel pressure control: 0-2000 bar
l Control accuracy: 1bar
- Electronic power support: 3 phase 380V / 3 phase 220V
1.4 Main Functions:
- Detection of the common rail injectors: Clean, pre-injection, main injection, the maximum injection, minimum( start)spraying, return oil quantity.
- Cleaning of nozzles.
- Detection: Common rail pressure sensor, pressure regulator.
- Testing environment: Oil temperature regulation, counting measure, adjust the common rail pressure, also can adjust the injection pulse width and duty cycle.
- Support system: BOSCH, DELPHI, DENSO
