Help CenterCR3000A-708 Common Rail System Test Bench for Common Rail Pump and Common Rail Injector Testing Together
Related Products
-
Common Rail Injector Tester CR1000(EM)+ PJ40US$ 200 - 300MOQ: 1 Set -
EPS100 Common Rail Injector Tester/bosch Piezo Injector TesterUS$ 1,800 - 2,000MOQ: 1 Set
-
PQ1000 Common Rail Injector Test Bench/common Rail Injector TesterUS$ 1,000 - 1,200MOQ: 1 Set
-
CR3000A-708 Common Rail System Test Bench for Common Rail Pump and Common Rail Injector TestingUS$ 5,000 - 8,000MOQ: 1 Set
-
PQ1000 Common Rail Diesel Injection Fuel Injection Injector Test Bench With Bosch Piezo Injector FunctionUS$ 1,000 - 1,100MOQ: 1 Set
Specifications
CR3000A-708 common rail system test bench for common rail pump and common rail injector testing togetherit can test BOSCH, CP1, CP2, CP3, DENSO HP0, HP2, HP3, DELPHI, SIEMENS injectors, test all types of the Common rail injectors.
Optional Fuction:
1. One flow sensor(Injection,return oil.turn test)
2.Two Flow Sensors
Recommend,test fast,Injection,return oil ,test at the same time)
3Weight Sensor(Many injectors can tested at the same time,Test easily and quickly,Low requirements on temperature and oil quality)
4,DRV Valve And Pump Delivery Sensor,Used in CR PUMP Testin
5,Can Test Denso HP0 pump
6,Can Test Bosch,Siemens piezo Injectors
7.With CP1 PUMP
8,Injectors Mounting bracket, convenient and reliable injector clamping

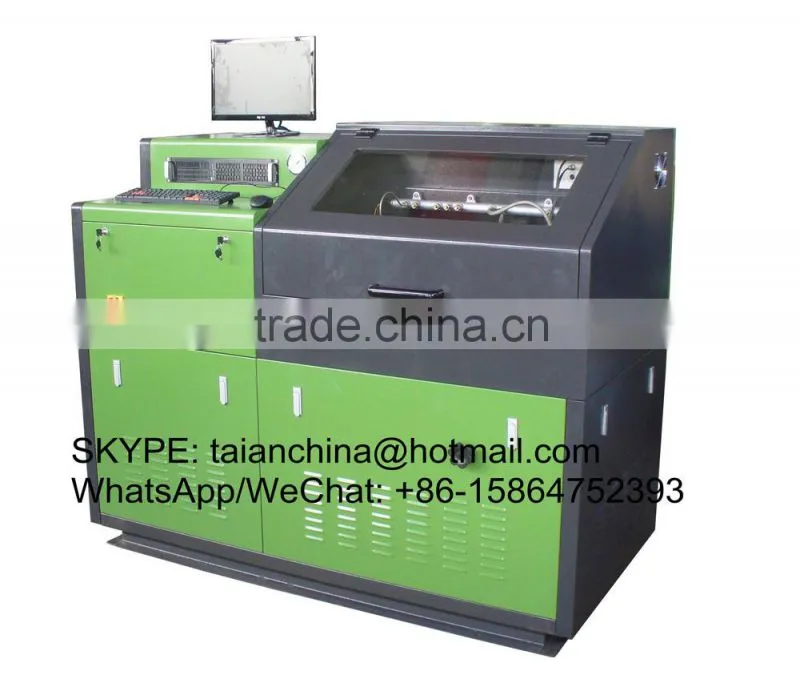

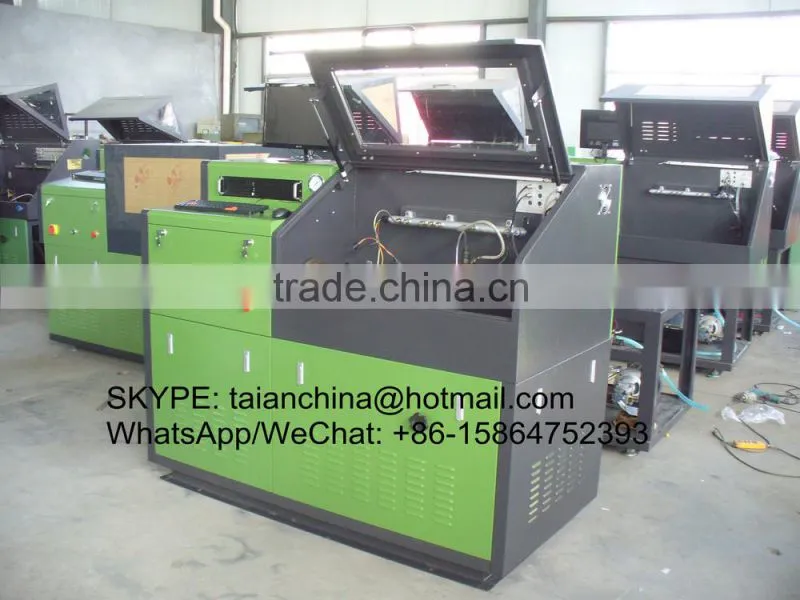

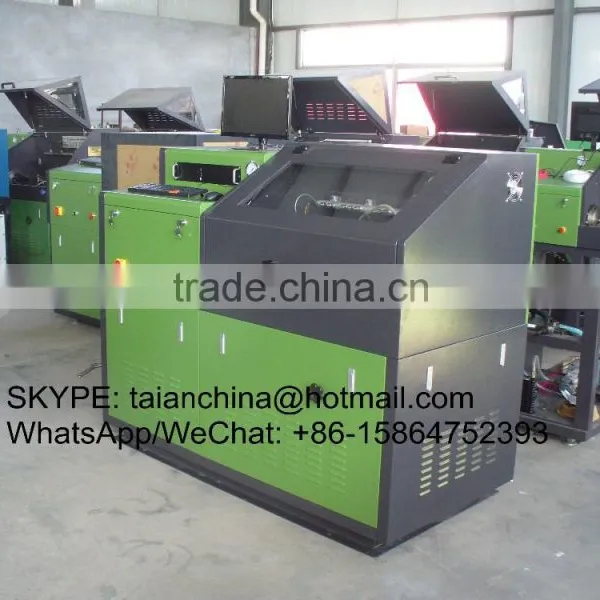

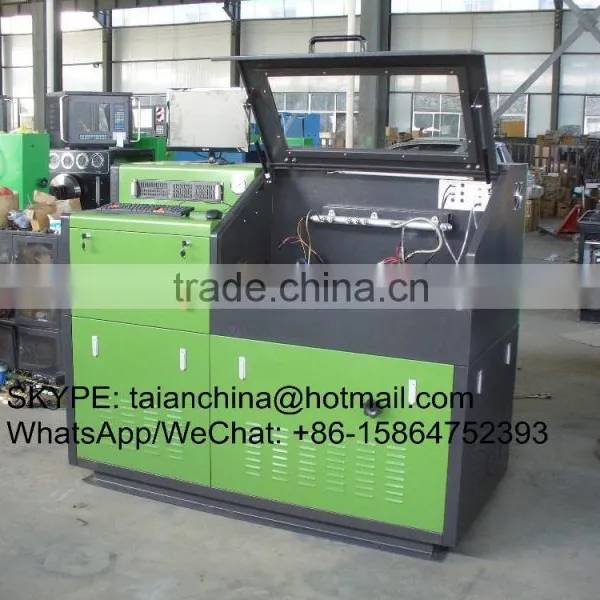

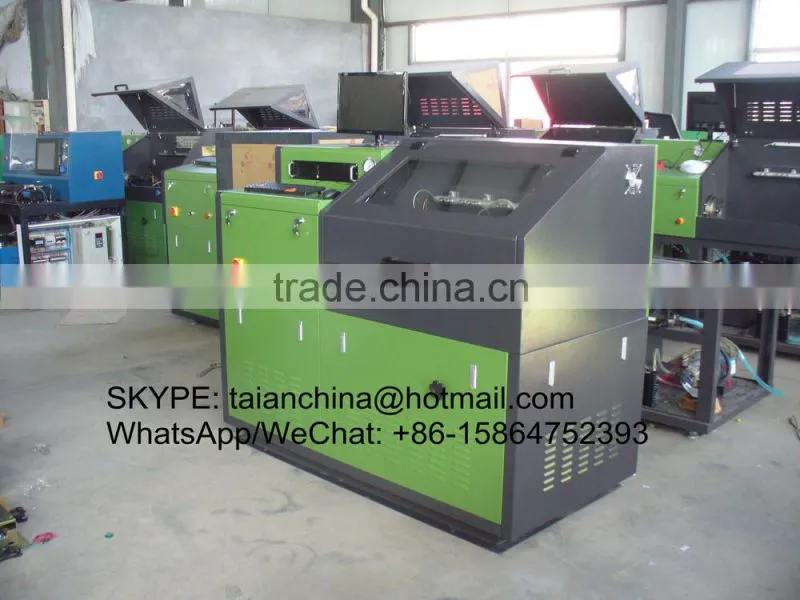

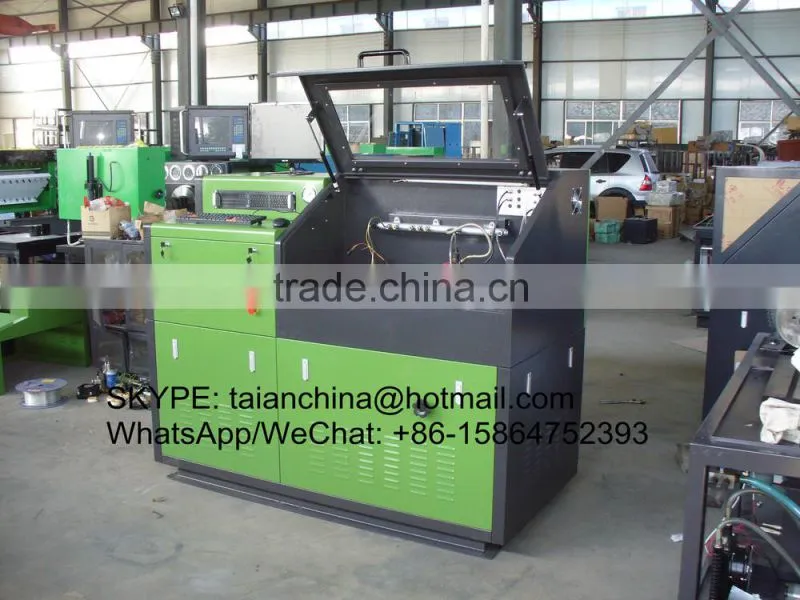

CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can test common rail pump,common rail injector at same time.
1 Pump testing: pump delivery, pressure,PVC working status, leakage of itself,
2.Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
3.it can test pressure sensor,and DRV valve
4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS
5. Testing data inside( pump and injector)
6. Electronic fuel delivery measuring, automatic detection.
Technical parameters
1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
standard export pacakge
one year warranty
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
Manager: Jun gang hou
Mobile: +86-15864752393
QQ: 87982354
(E- Mail/Skype: taianchina@ )
WhatsApp/WeChat: +86-15864752393
Wechat: taianchina
E-mail: commonrail@
