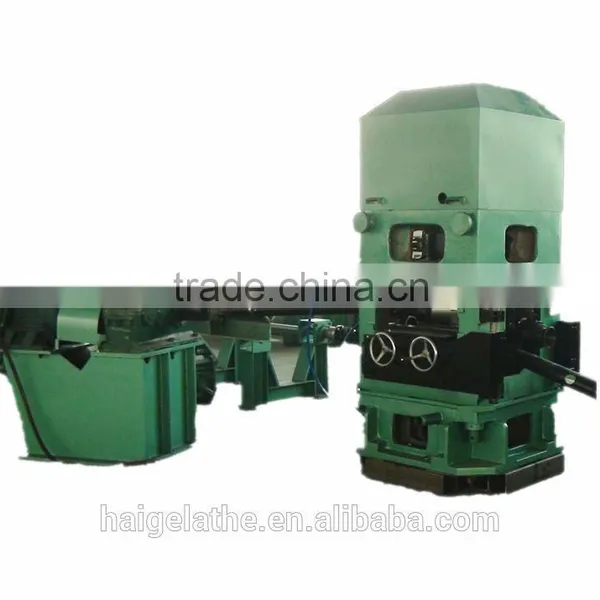

Help CenterSimple Operation 2 Roller Straightner With Auto Loading Device
Related Products
-
Low Cost Cnc Lathe Machine Price for Steel Round Bar / Rod / TubeUS$ 1 - 5,000,000MOQ: 1 Set -
Bar Surface Peeling and Straightening and Polishing Machines Production LineUS$ 1 - 5,000,000MOQ: 1 Set
-
Round Steel Bar Rod Automatic Peeling and Straightening and Polishing Machine Production LineNegotiableMOQ: 1 Set
-
Round Steel Bar Rod Surface Processing Automatic Production LineNegotiableMOQ: 1 Set
-
Seamless Pipe Surface Peeling Machine ManufacturerNegotiableMOQ: 1 Set
Yantai Haige Machine Tools Co.,Ltd
----Professional Manufacturer of Centerless Lathe &Straightening Machine
Yantai Haige Machine Tools Co.,Ltd. was built in 1997,which is mainly producing series WXC Centerless Lathe(Bar Peeling Machine),Series JY Bar Straightening Machine,Abrasive Belt Grinder (Belt Sander Polishing Machine) and
auxiliary machine,etc.
We regard Customer’s Satisfaction as our unremitting pursuit.
Based on more than ten years manufacturer and design experience,our machine have been exported to Russia,Vietnam,India,
Korea and other countries and regions.
Series JY Straightening Machine is mainly used for precision straightening and calendering for the bar after peeling or
grinding and rough pre-straightening for the black bar.

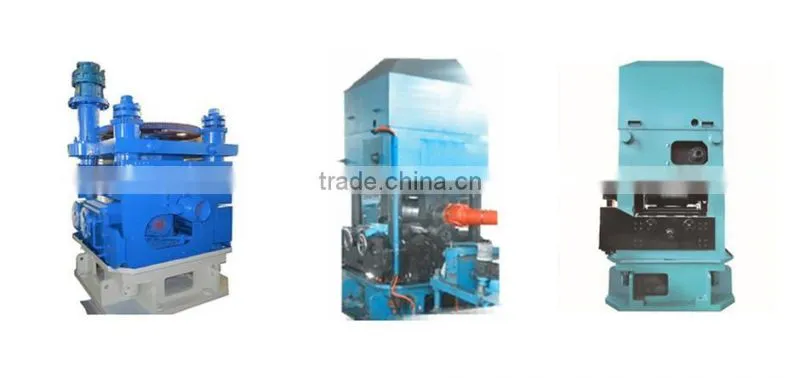

Series JY two-rolls Straightening Machine includes two-beams and four-columns structure,prestressed structure and frame structure.
The Feature of Bar Straightener
1.high feeding straightening speed,due to calendering and straightening at the same time,so the working speed can reach
10~30m/min
2.Straightening and calendering at the same time
High precision,straightness can reach 0.15mm/m to 0.4mm/m,surface roughness Ra≤0.8μm.
Main Parts
Series JY straightening machine is mainly used forprecision straightening for the metal bar after peeling or grinding and
pre-straightening for the metal bar.
The machine adopted special curve between upper concave and the lower convex two straightening rolls to realize
calendering and straightening at the same time,which greatly improved the working efficiency.
Series JY two-rolls Straightening Machine consists of two-beams and four-columns structure,prestressed structure and frame structure.

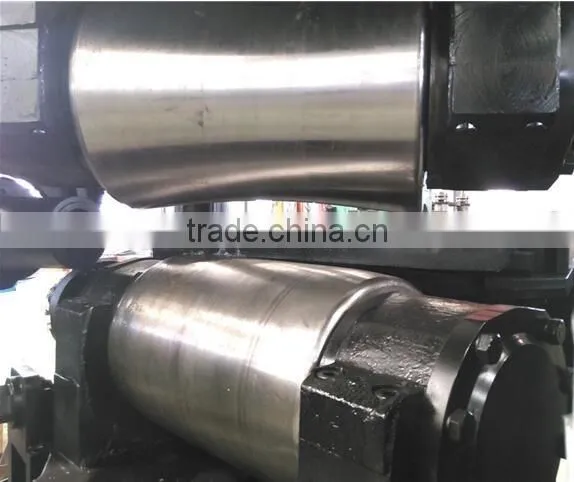

The most vital part of a straightener is the two
straightening rollers, which designed by our qualified engineers.The upper roller is concave and the lower one is convex,
which formed a special curve to press strongly onto the materials to realize straightening,as well as calendering.
Packaging Show
Straightening machine:
Series JY straightening machine is mainly used forprecision straightening for the metal bar after peelingor granding and pre-straightening for the metal bar.
The machine adopted special curve between upper concave and the lower convex two straightening rolls to realize calendering and straightening at the same time,which greatly improved the working efficiency. Series JY two-rolls Straightening Machine consists of two-beams and four-columns structure,prestressed structure and frame structure.
Characteristics
1,fast feeding and straightening speed,which can reach 10-30m/min.
2,with special carves ,it can straighten and calender materials at the same time.
3,highe precision.straighteness can be 0.15-0.4mm/m,surface roughness Ra≤0.8μm.
The most vital part of a straightener is the two
straightening rollers, which desigined by our qualified engineers.The up roller is concaveand the lower one is convex,which formed a special curve to press strongly onto thematerials to realize straightening,as well as straightening.
Main Machine
The upper and lower body respectively
install a straightening roller,the upper roller is concave ,the lower roller is convex.
According to the diameter and the material properties of the bar,respectively to adjust upper and lower straightening roller angle,electric lift part adjust the gap between the two straightening rolls,start the cooling lubrication system,driven by main motor,to complete calendering and straightening at the same time. Frequency conversion stepless speed,realtime display the gap between upper roll and lower roll.Guide sleeves are installed in the inlet and outlet.Its location can be adjusted,playing guide and support role.During processing,the bar can accurately enter and leace the straightening rolls.
CHARACTER:
♦ Optimum straightening effect, even with high strength materials
♦Straightener roll from alloyed and hardened chrome steel
♦ Two-roll principle with concave upper roller and convex bottom roller to ensure that the ends are straightened
♦Lateral guidance of the bar to be straightened between the straightener rolls by special guide ledges
♦Long striaghtening roller life due to coolant lubrication
We have exported to the following countries: Europe and the United States, Russia, Belarus, Pakistan, South Korea, North Korea, India, Vietnam, Taiwan, South Africa, Brazil, Thailand, etc.
If you have any questions, please feel free to contact us at the following:
