Main Taechnical Parameters—WXC130S | ||
MODEL |
WXC130S |
|
RAW |
Diameter Range(mm) |
Φ45~Φ130 |
Raw Material Length(mm) |
≥2800 |
|
Tensile Strength(Mpa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25-50μm |
|
FINISHED |
Diameter Range |
Φ44~Φ129 |
Unilateral Turning Depth (mm) |
1~2.5 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤12.5μm |
|
Curvature(mm/m) |
≤1.5 |
|
Roundness(mm) |
≤0.03 |
|
Feeding Cutting Speed(m/min) |
0.8-1.5 (for continuous chips and high strength and hardness should reduce the cutting speed) |
|
Cutter Head Rotational Speed(rpm) |
240-670 (Six poles) 360-1000 (Four poles) |
|
Main Machine Motor Power(KW) |
110 |
|
Auxiliary Machine Motor Power(KW) |
11(feeding part) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
5.3 X 3.5 X 3 |
|
|
Full Set Machine Outline Dimensions (Including auxiliary) (Length*Width*Height) m |
18M X 3.5M X 3M |
|
Main Machine Weight |
20.5 (29) |
|
Total Installed Capacity(KW) |
130 |
|
|
Compressed Air Source (users prepare by themselves) |
0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier |
|
About us
Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in
China to the markets abroad, which is located in Laishan district, Yantai City,
Shandong Province, China.

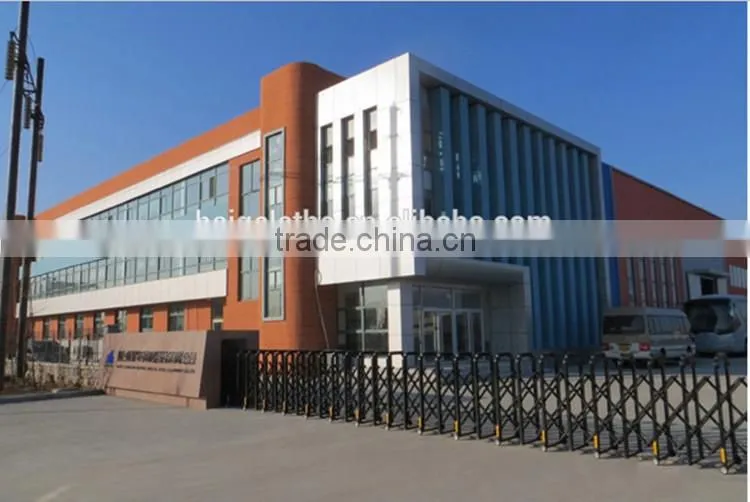

The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000
m². There are one hundred and forty staffs working in the factory. The factory is
mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing
equipment for steel(bright steel) for more than ten years.
So far, the company has produced and sold more than 1500 sets of equipments.
The machines are mainly used to process the surface of the steel, copper,
titanium, magnesium, aluminum and other metal round bars, pipes and wire from
Φ5mm~Φ500mm. The peeling machine, straightening machine and polishing

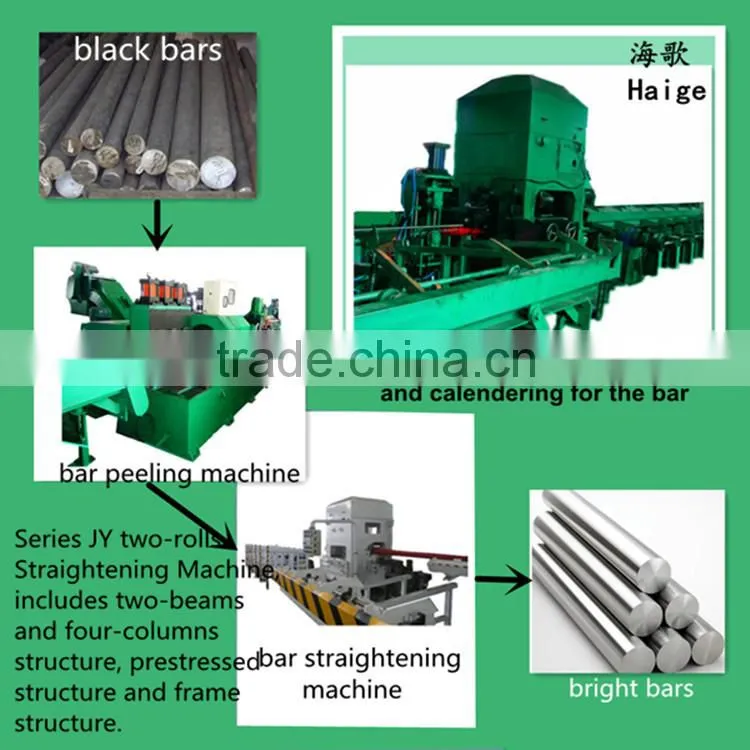

machine can be combined into automatic production lines for processing and
finishing of the bright steel which remove cracks, oxide layer, decarburized layer
and other defects from the bar surface quickly. High quality bright bars, pipes
and wire can be produced with high precision and high surface roughness
whose working efficiency is several even more than ten times higher than
that of the traditional technique.Our company is capable of supplying
automatic production line in full sets by expanding varieties of the niche
mechanical equipments.
Other machine tools
bar peeling machine
List of Main Technical Parameters of Centerless Lathe
|
Model |
Diameter range |
Length required |
Diameter cutting depth |
Diameter tolerance |
Surface roughness |
CNC or not |
WXC40S |
6-40mm |
≥1.4m |
0.5-2mm |
IT≤9 |
Ra≤6.3μm |
CNC |
WXC60C |
14-65mm |
≥2.2m |
0.5-2mm |
IT≤9 |
Ra≤6.3μm |
Semi-auto |
WXC80S |
20-85mm |
≥2.2m |
0.5-2.5mm |
IT≤9 |
Ra≤6.3μm |
CNC |
WXC100S |
25-100mm |
≥3.0m |
1.0-4.0mm |
IT≤9 |
Ra≤6.3μm |
CNC |
WXC130S |
40-135mm |
≥2.8m |
1.0-5.0mm |
IT≤9 |
Ra≤6.3μm |
CNC |
WXC160S |
45-165mm |
≥4.0m |
1.0-5.0mm |
IT≤10 |
Ra≤6.3μm |
CNC |
WXC200S |
85-205mm |
≥4.0m |
1.0-5.0mm |
IT≤10 |
Ra≤6.3μm |
CNC |
WXC260S |
100-260mm |
≥4.0m |
1.0-5.0mm |
IT≤10 |
Ra≤6.3μm |
CNC |
WXC350S |
150-355mm |
≥4.5m |
1.0-10.0mm |
IT≤10 |
Ra≤6.3μm |
CNC |
WXC500S |
320-500mm |
≥5.0m |
1.0-10.0mm |
IT≤10 |
Ra≤6.3μm |
CNC |
|
Model |
Diameter range |
Length required |
Diameter cutting depth |
Diameter tolerance |
Surface roughness |
CNC or not |
WXC40C |
6-40mm |
≥1.4m |
0.5-2mm |
IT≤9 |
Ra≤6.3μm |
Semi-auto |
WXC60B |
14-60mm |
≥2.2m |
0.5-2mm |
IT≤9 |
Ra≤6.3μm |
Semi-auto |
WXC80C |
20-80mm |
≥2.2m |
0.5-2.5mm |
IT≤9 |
Ra≤6.3μm |
Semi-auto |
WXC100C |
25-100mm |
≥3.0m |
1.0-4.0mm |
IT≤9 |
Ra≤6.3μm |
Semi-auto |
WXC130C |
40-130mm |
≥2.8m |
1.0-5.0mm |
IT≤9 |
Ra≤6.3μm |
Semi-auto |
WXC160C |
45-160mm |
≥4.0m |
1.0-5.0mm |
IT≤10 |
Ra≤6.3μm |
Semi-auto |
WXC200C |
85-200mm |
≥4.0m |
1.0-5.0mm |
IT≤10 |
Ra≤6.3μm |
Semi-auto |
WXC260C |
100-260mm |
≥4.0m |
1.0-5.0mm |
IT≤10 |
Ra≤6.3μm |
Semi-auto |
WXC350B |
150-350mm |
≥4.5m |
1.0-10.0mm |
IT≤10 |
Ra≤6.3μm |
Semi-auto |
WXC500C |
320-500mm |
≥5.0m |
1.0-10.0mm |
IT≤10 |
Ra≤6.3μm |
Semi-auto |
bar straightening machine

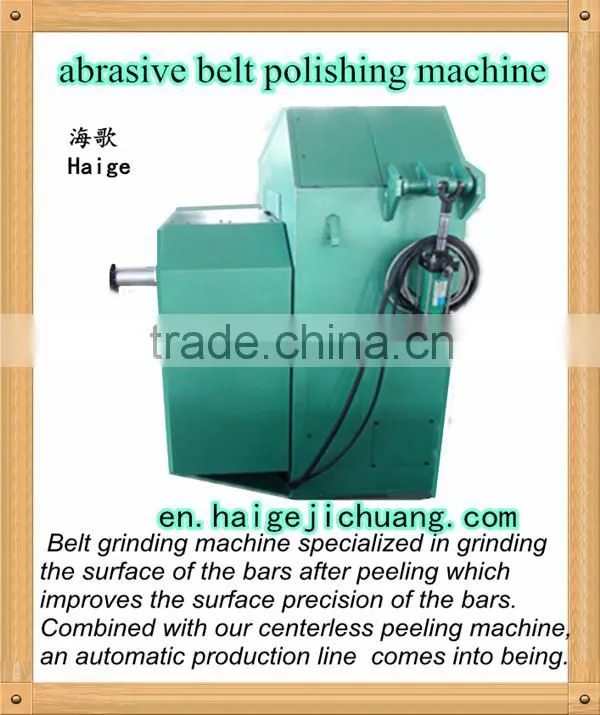

belt sander polishing machine
There are lots of accessoties for you to choose.More information,please contact me.
