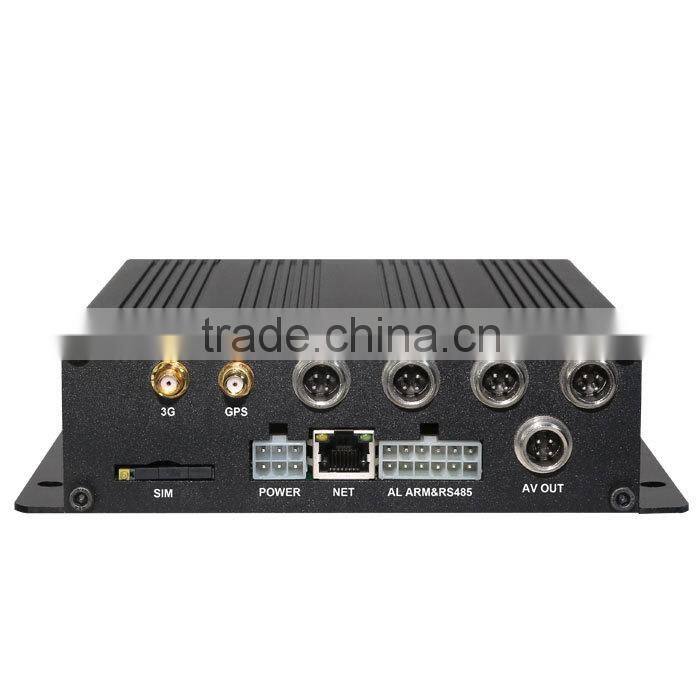

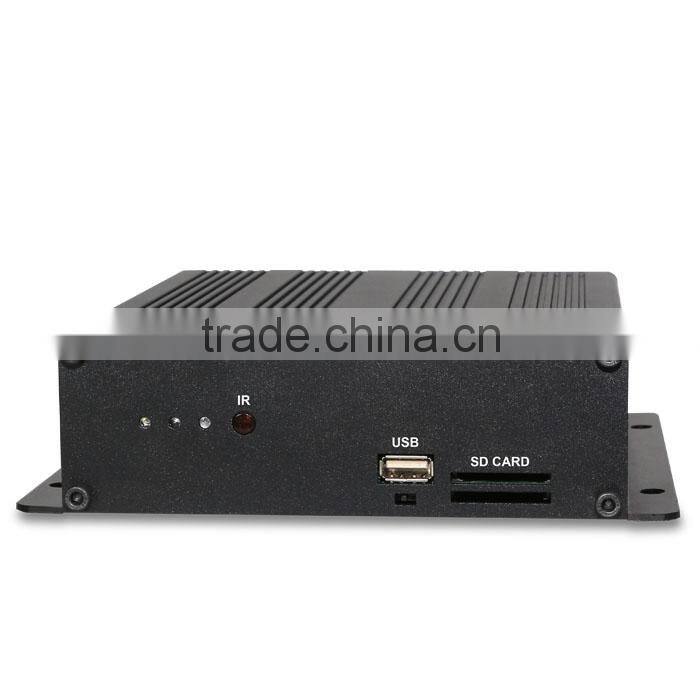

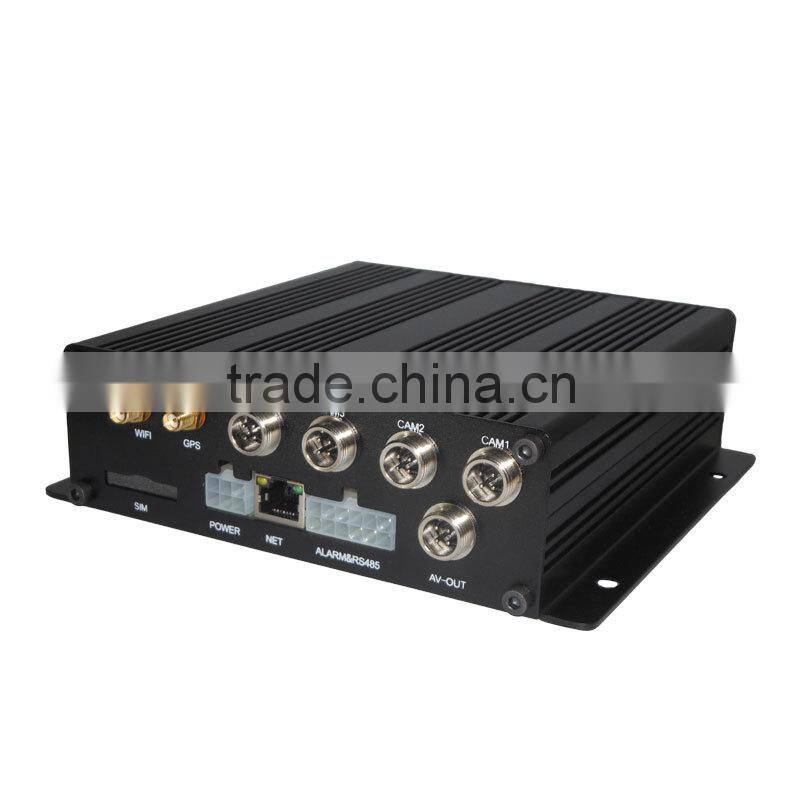

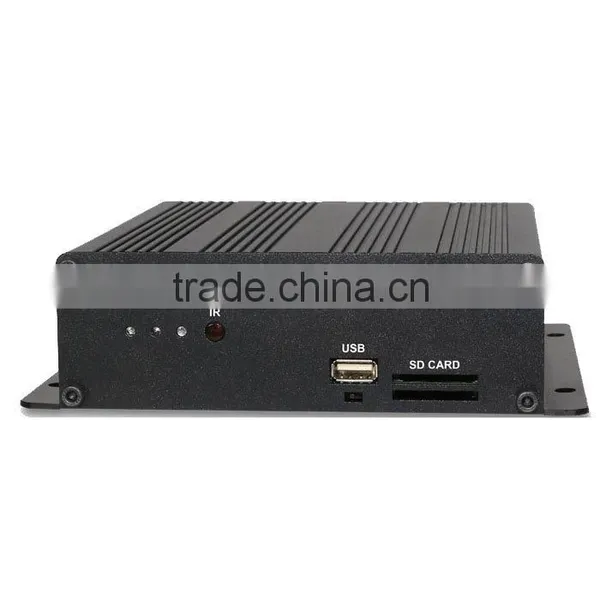

100% Factory WiFi 3G Optional Aluminum Alloy Housing 4CH SD Card Mobile DVR for Trucks
Application :
Car ,Bus ,Tracks ,Tractor ,etc.
Key Spec :
| Operating system | Embedded LINUX operating system |
| System resources |
Multiplex real time synchronous record, multiplex real time playback, multiplex and multi-people network operation, USB backup |
| Operating interface | 16-bit true color graphic menu operation interface, support mouse action |
| Image display | 1/4 image display |
| Video standard | PAL(625TVL,50Hz/s);NTSC(525TVL,60Hz/s) |
| Image coding | H.264(Main Profile); JPEG screenshot |
| Monitoring quality | Monitor: D1 |
| Playback quality | D1/Half-D1/CIF/QCIF |
| Code capacity | 4xD1 real time |
| Decode capacity | 2xD1 real time |
| Motion detection | 392(22*18) surveyed areas available for each image; |
| multi-level sensitivity | |
| Audio compression | G711A |
| Voice talk back | Support |
| Video mode | Manual> alarm> dynamic detection> timing |
| Local playback | Synchronous playback of selected cameras(Camera1-4) |
| Video retrieval | point-in-time retrieval, date retrieval, event retrieval and channel retrieval |
| Occupied disk space per channel | Video: CIF 4~5G/day*channel, D1 16~20G/day*channel; |
| Audio: 691.0M/day*channel | |
| Image storage | Local hard disk, network, SD card |
| Backup pattern | Network backup, USB mobile HDD, USB record, SATA record, SD card |
| Video input | 4 inputs |
| Video output | 1BNC output(1.0Vp-p,75Ω) |
| Audio input | 4 inputs |
| Audio output | 1 RCA output(200-3000mV,5K) |
| Alarm input | 8 inputs( multiplex vehicle signal) |
| Alarm output | 1 output |
| Network interface | RJ45 10M/100M Self-adaption toEthernet port |
| PTZ control | 1 RS485 interface |
| USB interface | 1 USB interface ( multiplex WIFI interface, switchable) |
| SD card | Support double SD cards |
| (Maximum 96 G. support recording, redundancy recording, backup and screenshot etc.) | |
| GPIO signal |
Support speed signal, turn light signal, braking signal etc. inputs; support vehicle information SOD superposition and storage etc. |
| GPS module | Onboard GPS module, support GPS information superposition, timing etc. |
| WIFI module/ 3G module |
Onboard WIFI module (support RT3070 series module, multiplex USB interface), support equipment’s active registering and reporting to the platform |
| (alternative) | Onboard 3G module, support EVDO,WCDMA and TD-SCDMA, support equipment’s active registering and reporting to the platform; perfect narrow-band transmission strategy to ensure the stability and fluency of 3G network media stream |
| Others | Support power-on delay and power-off delay; support fixed timing starting up and shutdown function |
| Player | Player specially for In-vehicle, support Google Map to record driving routes of vehicles; support display of vehicle information |
| Platform software |
Support active registration mode, dispense with port mapping and thoroughly solve the connecting problem of 3G network |
| Supporting SDK | Provide perfect SDK for secondary development and integration |
| Power supply | Wide voltage input of 10V to 40V |
| Power consumption | <10W(Hard Disk excluded) |
| Operating temperature | 0℃-+55℃ |
| Operating humidity | 10%-90% |
