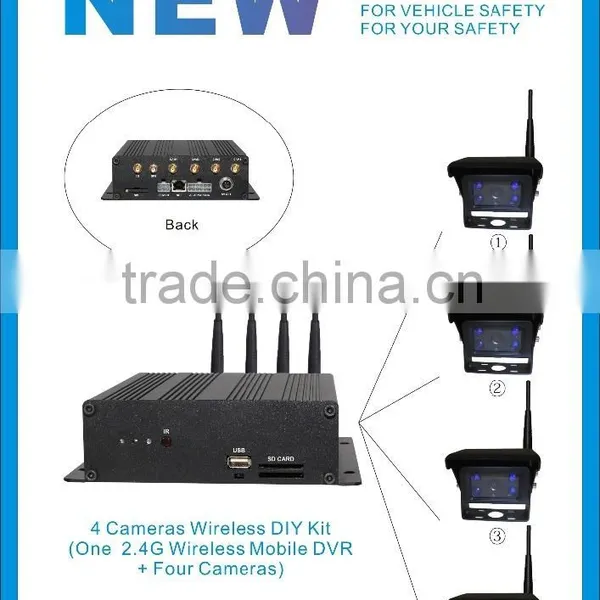

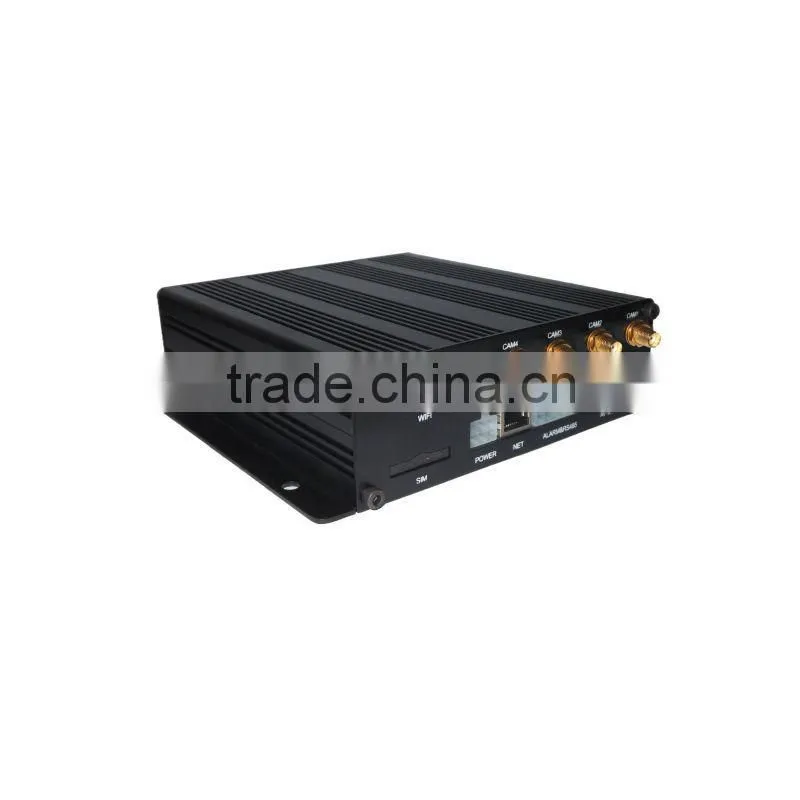

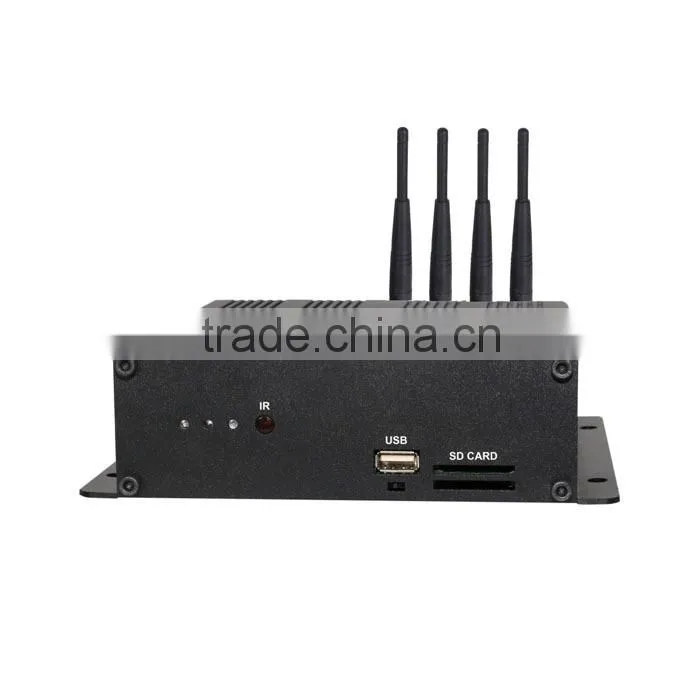

Mobile DVR Type Support 4 Wireless Camera Double SD Card GPS&WiFi&3G Optional 4 Channel Mobile DVR for Car Bus Truck with 1 Year Warranty
Type of Product:
2.4G Digital Wireless DVR
Features:
2.4GHz Digital Wireless DVR :
| Operating system | Embedded LINUX operating system |
| System resources | Multiplex real time synchronous record, multiplex real time playback, multiplex and multi-people network operation, USB backup |
| Operating interface | 16-bit true color graphic menu operation interface, support mouse action |
| Image display | 1/4 image display |
| Video standard | PAL(625TVL,50f/s);NTSC(525TVL,60f/s) |
| Image coding | H.264(Main Profile); JPEG screenshot |
| Monitoring quality | Monitor: D1 |
| Playback quality | D1/Half-D1/CIF/QCIF |
| Code capacity | 4xD1 real time |
| Decode capacity | 2xD1 real time |
| Motion detection | 392(22*18) surveyed areas available for each image; |
| multi-level sensitivity | |
| Audio compression | G711A |
| Voice talk back | Support |
| Video mode | Manual> alarm> dynamic detection> timing |
| Local playback | Synchronous playback of selected cameras(Camera1-4) |
| Video retrieval | point-in-time retrieval, date retrieval, event retrieval and channel retrieval |
|
Occupied disk space per channel |
Video: CIF 4~5G/day*channel, D1 16~20G/day*channel; |
| Audio: 691.0M/day*channel | |
| Image storage | Local hard disk, network, SD card |
| Backup pattern | Network backup, USB mobile HDD, USB record, SATA record, SD card |
| Video input | 4 inputs |
| Video output | 1BNC output(1.0Vp-p,75Ω) |
| Audio input | 4 inputs |
| Audio output | 1 RCA output(200-3000mV,5K) |
| Alarm input | 8 inputs( multiplex vehicle signal) |
| Alarm output | 1 output |
| Network interface | RJ45 10M/100M Self-adaption toEthernet port |
| PTZ control | 1 RS485 interface |
| USB interface | 1 USB interface ( multiplex WIFI interface, switchable) |
| SD card | Support double SD cards |
| (Maximum 96 G. support recording, redundancy recording, backup and screenshot etc.) | |
| GPIO signal |
Support speed signal, turn light signal, braking signal etc. inputs; support vehicle information SOD superposition and storage etc. |
| GPS module | Onboard GPS module, support GPS information superposition, timing etc. |
| WIFI module/ 3G module |
Onboard WIFI module (support RT3070 series module, multiplex USB interface), support equipment’s active registering and reporting to the platform |
| (alternative) |
Onboard 3G module, support EVDO,WCDMA and TD-SCDMA, support equipment’s active registering and reporting to the platform; perfect narrow-band transmission strategy to ensure the stability and fluency of 3G network media stream |
| Others | Support power-on delay and power-off delay; support fixed timing starting up and shutdown function |
| Player |
Player specially for In-vehicle, support Google Map to record driving routes of vehicles; support display of vehicle information |
| Platform software |
Support active registration mode, dispense with port mapping and thoroughly solve the connecting problem of 3G network |
| Supporting SDK | Provide perfect SDK for secondary development and integration |
| Power supply | Wide voltage input of 10V to 40V |
| Power consumption | <10W(Hard Disk excluded) |
| Operating temperature | 0℃-+55℃ |
| Operating humidity | 10%-90% |
2.4GHz Digital Wireless Camera :
CMOS Camera and CCD camera Optional
| Image Device | 1/3” PIXEL CMOS 960H | Image Device | 1/3'' SHARP CCD |
| TV System | PAL,NTSC | TV System | PAL / NTSC |
| Effective Pixel Array | 976(H)*496(V) | Resolution | 600 TV Lines |
| Effective Image Area | 4.88 mm x 3.67 mm | Minimum Illumination | 0.01 Lux / F1.0, B/W: 0.001 Lux / F1.0 |
| Sync. System | Internal | Effective Pixels | |
| Resolution | 700TV Lines | ||
| Vertical Sync Frequency | 50 Hz/60 Hz | White Balance | Auto |
| Video Output | 1.0Vp-p, 75Ohm | S/N Ratio | Better than 48 dB |
| AGC | Auto | Electronic Shutter | AOTO:1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
| S/N Ratio | Better than 48dB | Operating frequency | 2400 -2483.5 MHz |
| White Balance | Auto | Current Consumption | Max. 350 mA |
| BLC | Auto | Power Supply | DC 12-32 V |
| Storage Temperature | –50℃~95℃, RH95%MAX. | Operating Temperature | -20°C~70°C, RH 95% MAX. |
| Operating Temperature | –30℃~85℃ | Storage Temperature | -40°C~80°C, RH 95% MAX. |
| Minimum Illumination | 0.01 Lux | D-WDR | ON/OFF |
| Power Supply | DC12V | 2D-DNR | ON/OFF |
| Night vision distance | 5~10m | Back Light Comp | ON/OFF |
| Waterproof rating | IP69K | Sync. System | Internal |
| Image mode | mirror/normal (optional) | Microphone | Yes |
| Viewing Angle | 120° | BLC | Auto |
| Emitting frequency | 17dBM | AGC | Auto |
| Transmitting distance | 30-120M | Transmitting distance | 30-120M |
| Transmitting speed | 12Mbps | Transmit output power | 17 dBm |
| Receiving sensitivity | -78dBm | Decompression form | MPEG4 |
| Scan Mode | Progressive | Transmitting speed | 12Mbps |
| Operating frequency | 2400-2483.5MHz | Electronic Exposure | Up to 510:1 |
| Decompression form | MPEG4 | Lens Angle | 2.8mm/120° ,3.6 mm/92° |
| Waterproof protection level | IP69K |
Other DVR for vehicle :
4CH Mobile DVR with GPS Wifi or 3G Function
Max 4TB HDD Storage with WiFi 3G GPS G-sensor Function Aluminum Housing for Car Bus Track Tractor 4CH 8CH Mobile DVR
7 Inch Monitor and 4 Cameras with DVR Function
