2/4/6/8 channel SD HD 1080P Fleet Dash Cam with GPS CHINA Manufacturer Yuwei

Name: 2/4/6/8 channel SD HD 1080P Fleet Dash Cam with GPS CHINA Manufacturer Yuwei
Brand: YUWEITEK
Availability: InStock

FOB Price

USD $300 - $500 / Bag

20 Bags(Min.Order)

Supply Ability 50000 Bag / Bags per Month
Payment TermsT/T Credit Card Cash

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YUWEITEK	Place of Origin	China
Model Number	YUWEITK-V5-1	Certification	BQB
Warranty	1

Product Description

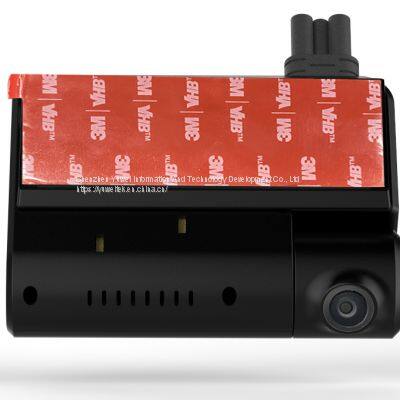

Mobile Dashcam with Max 4 Channel Video Recording

Product Features:

16 x 720P AHD Video input, support 960P AHD camera.
Waterproof & Dustproof IP67.
2 HDD / SSD slots, and 1 SD card (up to 512GB) for backup (at 4G / Wi-Fi model option).
Internal G-sensor, GPS, 3G.
Anti-Shock and Anti-Vibration MIL-STD-810G certified.
Hard drive auto-heating startup in freezing weather.
Operating temperature - 40℃ ~ + 80℃.
24V-36V wide voltage power supply.

Yuweitek V5 16 channel Mobile DVR which can connect and record simultaneously up to 16 cameras and an ethernet port to connect a forward facing IP camera. This DVR is Perfect protect your data well with waterproof & dustproof IP67.

Features:

1. Hidden antenna design, no need to install external antenna.

2. The integrated design of the car camera with external GPS module/antenna or built-in antenna provides better GPS signal and performance than other conventional driving recorder designs, avoiding interference from GPS signal and recorder circuit.

3. Support up to 3 channels of AHD camera input, including 1 channel of 1080P AHD+2 channels of 720P AHD full-frame recording.

4. Support ADAS, DSM, face recognition function (optional).

5. Dual TF card video storage, single card supports up to 512GB.

6. Compatible with H.265/H.264 video encoding.

7. The built-in Wi-Fi is used as a hotspot for wireless connection between the mobile phone and the device. Use the mobile APP to set up functions such as viewing device parameters, status, and playing videos.

8. Support microphone and speaker

9. A built-in yellow and blue two-color indicator light indicates the working status of the equipment, and the hidden design avoids interfering with the driver's sight.

10. Support emergency alarm button.

11. Built-in Mini USB 2.0 for recording data export and equipment maintenance.

13. Support low-voltage protection, when the voltage is lower than 8.5V, the device will automatically shut down (the shutdown voltage value can be set, the default value is 8.5V).

14.9V-36V DC power supply.

15. Working temperature -25℃~+75℃, storage temperature -40℃~+80℃.

Parameter classification	parameter item	Score indicator	Remark
Basic parameters	Exterior	Dash Camera integrated with terminal	Max 4-channel video version.
	product type	4G DVR Car Video Terminal
	network standard	4G full Netcom
	Memory	256MB(Flash)+1GB(DDR)
	front camera	1080P, MIPI Camera, 16:9 required, H:112°V:55°
	in-car camera	AHD 720P, with light sensor/infrared night vision,
	DSM camera	AHD Camera, single pass, infrared night vision, 16:9 required, H=60° V=42°
Hardware function	GPS	Support: GPS+BDS
	Wi-Fi	802.11b/g/n
	trumpet	8 ohms 1.5 watts, 1 channel, with sound cavity
	MIC	Built-in dual silicon microphone design
	Accelerometer	3-axis accelerometer
Interface	micro 5Pin USB	USB×1, data interface
	BMW connector	8Pin power supply (5-way IO input, SOS*2)
	5557-4	RS232×1
	SIM card holder	Micro SIM
	TF card holder	TF×2 (Card 1 and Card 2 support circular storage)
Power supply	Power supply	Original car battery, 12V/24V power supply
Button& Indicator light	Reset button	Multiplexing the Power button (hidden), long press the power button for 8 seconds to reset
	indicator light	2-color indicator
	Alarm key	Standard emergency alarm connector
Antenna	GPS Antenna	Built-in ceramic antenna
	4G antenna	FPC+IPEX transposon
	WIFI antenna	FPC+IPEX transposon
Memory card	4G～2TB, patented DXR streaming storage format
Electrical Specification	Operating temperature	-20℃～70℃
	Storage temperature	-40℃～85℃
	Static Protection	6KV contact, 10KV air
	Vibration test	car vibration
	Current consumption	When the working voltage is 12V, the current is from 500mA to 1A (depending on whether the algorithm is turned on, etc.) In flameout state: ≤3mA
	Other quality requirements	According to JT/T794 standard (including hard test, soft test, reliability, quality, etc.)

Advanced driver assistance features（ADAS）

Alarm Type	Illustrate DASH CAM	Default enable condition	Remark
Forward Collision Warning (FCW)	Real-time monitoring of the distance between the vehicles ahead can warn the driver as early as 2.7 seconds before a collision is expected to prevent rear-end collisions. Voice prompt: Collision hazard	Speed ≥ 30km/h	Optional
Lane Departure Warning (LDW)	Monitor the current lane markings and vehicle trajectory and issue an alarm when it is about to deviate from the lane unintentionally, reminding the driver to keep driving in a safe lane. Voice prompt: Lane departure	Speed ≥ 30km/h	Optional
Distance Monitoring and Warning (HMW)	Displays the distance (in seconds) of the vehicle ahead and warns when approaching a preset dangerous distance. Voice prompt: Be careful of the car ahead	Speed ≥ 30km/h	Optional

Driver Status Monitoring Function (DSM)

Alarm Type	Illustrate	Default enable condition	Remark
Fatigue driving warning	Recognition of closed eyes and yawning states (classified as mild and severe)	Speed ≥ 30km/h	Optional
distraction alert	Voice prompt: please pay attention to danger	Speed ≥ 30km/h	Optional
call alert	Recognize persistent head-to-side and low/head-up states	Speed ≥ 30km/h	Optional
smoking warning	Voice prompt: Please pay attention to road conditions	Speed ≥ 30km/h	Optional
Driver Change Tips	Recognize phone call gestures	Speed ≥ 30km/h	Optional
Invalidation prompt	Voice prompt: please do not call	Speed ≥ 30km/h	Optional
Invalidation prompt	Recognize smoking posture	Speed ≥ 30km/h	Optional

Parameter classification	parameter item	Score indicator dashcam	Remark
Basic parameters	Exterior	Dash Camera integrated with terminal	Max 4-channel video version.
	product type	4G DVR Car Video Terminal
	network standard	4G full Netcom
	Memory	256MB(Flash)+1GB(DDR)
	front camera	1080P, MIPI Camera, 16:9 required, H:112°V:55°
	in-car camera	AHD 720P, with light sensor/infrared night vision,
	DSM camera	AHD Camera, single pass, infrared night vision, 16:9 required, H=60° V=42°
Hardware function	GPS	Support: GPS+BDS
	Wi-Fi	802.11b/g/n
	trumpet	8 ohms 1.5 watts, 1 channel, with sound cavity
	MIC	Built-in dual silicon microphone design
	Accelerometer	3-axis accelerometer
Interface	micro 5Pin USB	USB×1, data interface
	BMW connector	8Pin power supply (5-way IO input, SOS*2)
	5557-4	RS232×1
	SIM card holder	Micro SIM
	TF card holder	TF×2 (Card 1 and Card 2 support circular storage)
Power supply	Power supply	Original car battery, 12V/24V power supply
Button& Indicator light	Reset button	Multiplexing the Power button (hidden), long press the power button for 8 seconds to reset
	indicator light	2-color indicator
	Alarm key	Standard emergency alarm connector
Antenna	GPS Antenna	Built-in ceramic antenna
	4G antenna	FPC+IPEX transposon
	WIFI antenna	FPC+IPEX transposon
Memory card	4G～2TB, patented DXR streaming storage format
Electrical Specification	Operating temperature	-20℃～70℃
	Storage temperature	-40℃～85℃
	Static Protection	6KV contact, 10KV air
	Vibration test	car vibration
	Current consumption	When the working voltage is 12V, the current is from 500mA to 1A (depending on whether the algorithm is turned on, etc.) In flameout state: ≤3mA
	Other quality requirements	According to JT/T794 standard (including hard test, soft test, reliability, quality, etc.)
