Specifications
2012 Hot Selling PC Stone Hammer Crusher1. Stone crusher can crush max size 220mm stone
2. High effiency
3.ISO&CE

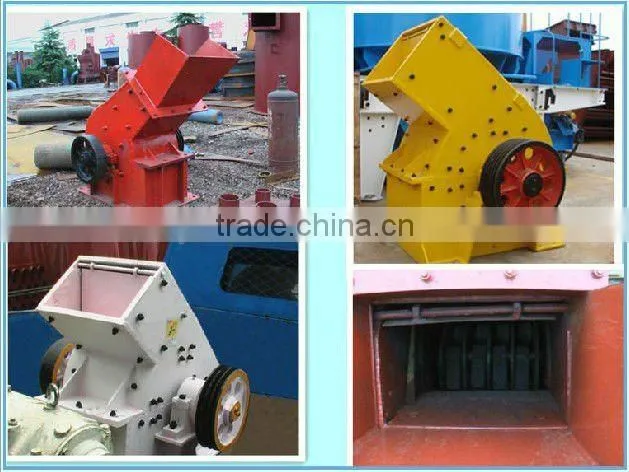

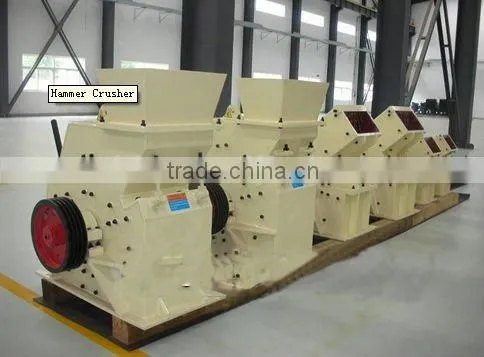

2012 PC400×300 Stone Hammer Crusher
Hammer Stone Crusher Application
Hammer crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum chemical industries.
Hammer Crusher Features.
1) Simple structure
2) High reduction ration
3) High efficiency
Working Principle
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers, when the material get into the working areas of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which a re crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being refreshed until they reached the required size.
Technical parameter of hammer crusher:
Model |
Capacity (t/h) |
Max Feed Size (mm) |
Motor Power (kw) |
Weight(t) |
PC350×180 |
0.7-3 |
50 |
5.5 |
0.4 |
PC450×240 |
5-7 |
80 |
11 |
0.6 |
PC400×300 |
5-10 |
≤100 |
11 |
0.8 |
PC520×310 |
7-10 |
≤100 |
15 |
0.8 |
PC600×400 |
10-15 |
≤150 |
30 |
1.3 |
