Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe

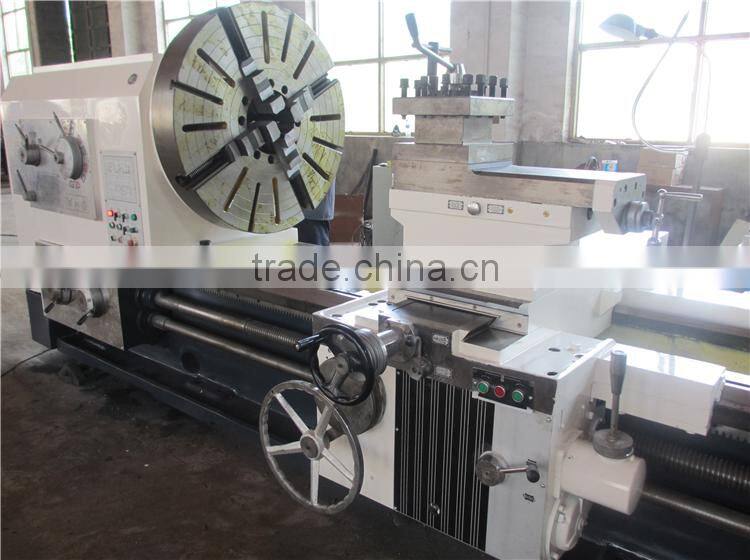

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe

Name: CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe
Brand: Hebei Zhenxing
SKU: 104540425
Availability: InStock

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe thumbnail-1

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe thumbnail-2

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe thumbnail-3

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe thumbnail-4

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe thumbnail-5

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe thumbnail-6

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe photo-1

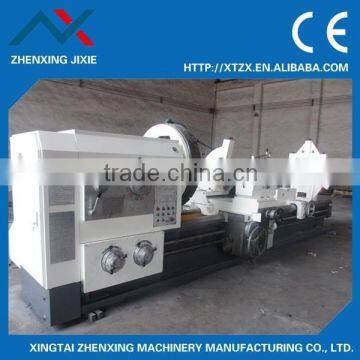

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe photo-2

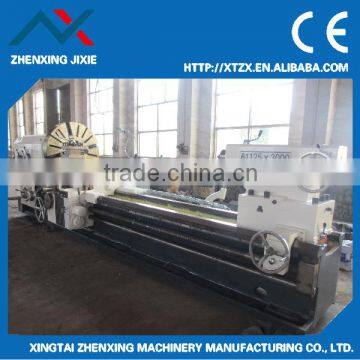

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe photo-3

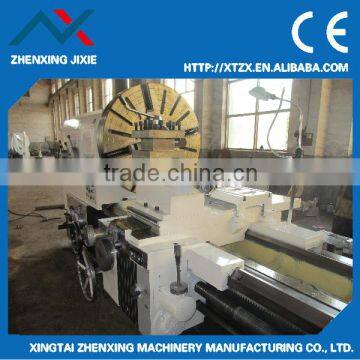

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe photo-4

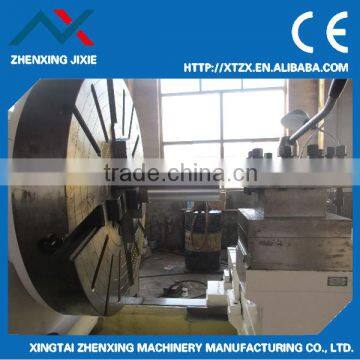

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe photo-5

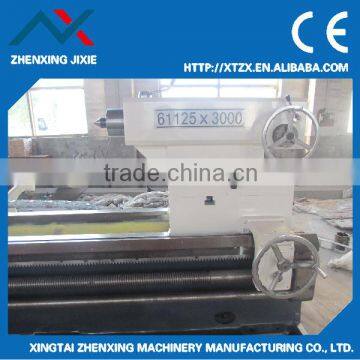

CW61125B Horizontal Lathe Heavy Lathe Conventional Lathe photo-6

US$ 30,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Xingtai Zhenxing Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Mainland

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter 1250

Place of Origin Hebei, China

Brand Name Hebei Zhenxing

Model Number CW61125B

Voltage 380V

Power(W) 22KW

Dimension(L*W*H) 6000*1400*2000MM

Weight 12000KG

Certification iso9001

After-sales Service Provided No overseas service provided

High quality China CW61125 horizontal lathe

Product Description

Item		Model
		CW61125
Max. swing diameter over bed		1250mm
Max. piece length(mm)		3000/5000/6000-15000
Max. turning length(mm)		2800—15800
Distance from spindle center to machine guideway		800mm
Max. diameter over knife rest		1200mm
Max. capacity of bars embedded in spindle hole:		121mm
Spindle hole diameter		130mm
Spindle hole taper		Metric140
Spindle forward turning kinds		21kinds
Spindle reverse turning kinds		12kinds
n1 forward turning speed		2—200r/min
reverse turning speed		2.25—178r/min
Range of rest of each spindle turning		56kinds
Tailstock	Dia. of tail stock sleeve	180mm
	Max. travel of tail stock sleeve	300mm
	Taper of Tail stock sleeve	Metric 80
Thread turning range	Metric thread types	44kinds
	Metric pitch range	1~120mm
	Inch thread types	31kinds
	Inch threads per inch range	24~1/4
	Module thread type range	45kinds,0.5~60mm
Tool holder	Max. travel of lower tool holder	960mm
	Max. travel of middle tool holder	300mm
	Max. travel of top tool holder	200mm
	Quick longitudinal move speed of tool rest	3740mm/min
	Quick cross move speed of tool rest	1870mm/min
	Follow rest	935mm/min

Gear fitting area

Blank area

Equipment machinery area

Company area

Packaging & Shipping

we will fix the lathe &accessories to wooden case.Then spray anti-rust oil , hang up desiccant ensure safety of the machine in the long time shipping .

1. Do you have any warranty?

Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.

2. How is your after-sale service?

We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

3. What certification do you have?

All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.

4. Will you teach how to use the machine?

Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.

5. How about thement ship?

The machine will be shipped within 2-3 days after the receipt of your payment.

6. Can visit your factory?

Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term
