Horizontal lathe machinery universal lathe rotary lathe
- 5 Set / Sets per Month
- China Mainland
- T/T Credit Card PayPal
- Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Semi-Automatic | Max. Swing Diameter: | 2000 | Place of Origin: | Hebei, China |
Brand Name: | Hebei Zhenxing | Model Number: | CW61200 | Voltage: | 380V |
Power(W): | 22KW | Dimension(L*W*H): | 19400*2410*2770MM | Weight: | 45000KG |
Certification: | iso9001 | After-sales Service Provided: | No overseas service provided |
Product Description

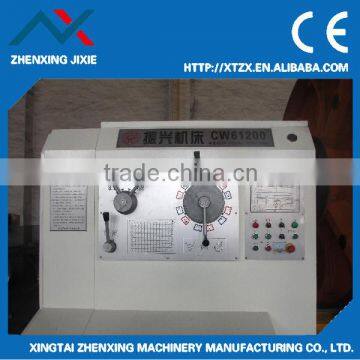

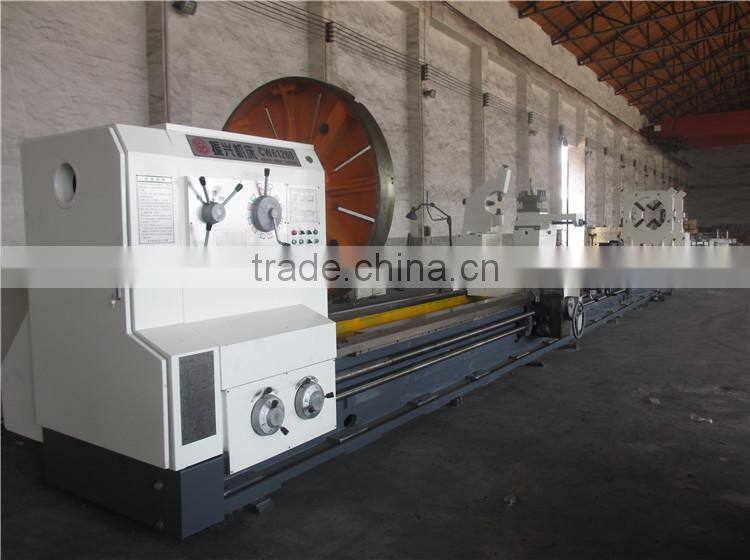

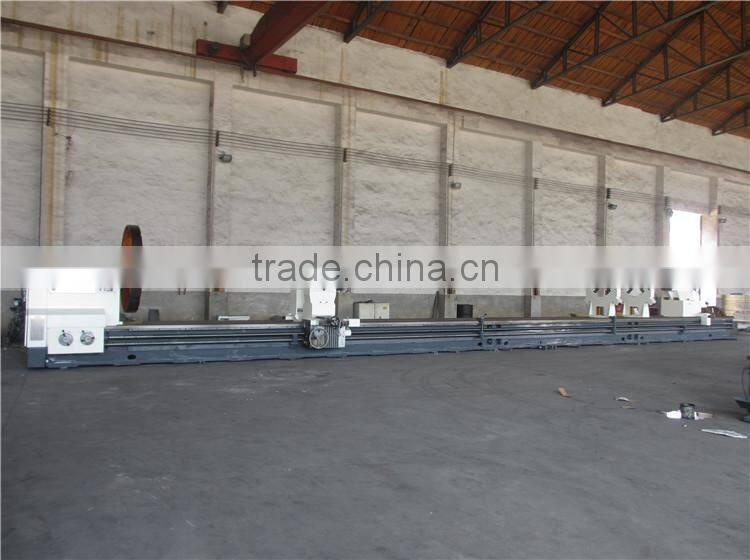

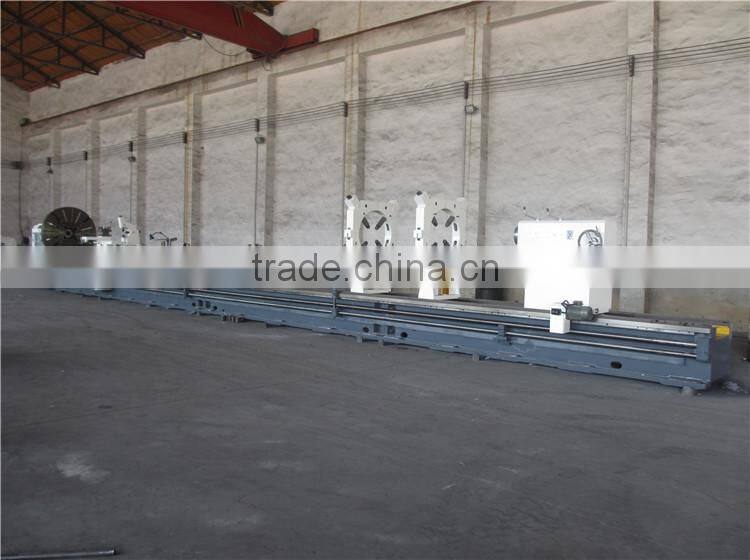

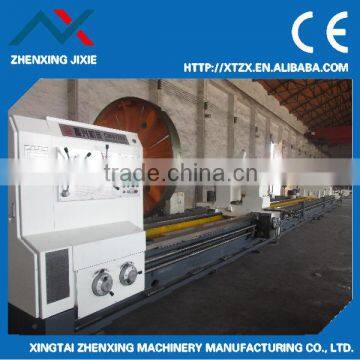

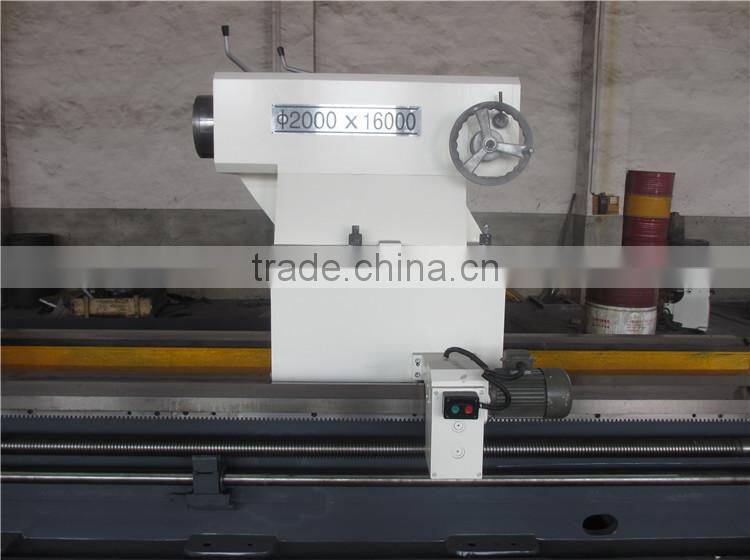

High quality China CW61200B horizontal lathe
Item | Model | ||
CW61200 | |||
Max. swing diameter over bed | 2000mm | ||
Max. piece length(mm) | 3000/5000/6000-15000
| ||
Max. turning length(mm)
| 2800—15800
| ||
Distance from spindle center to machine guideway | 1000mm
| ||
Max. diameter over knife rest | 1580mm | ||
Max. capacity of bars embedded in spindle hole: | 121mm | ||
Spindle hole diameter | 130mm | ||
Spindle hole taper | Metric140 |
| |
Spindle forward turning kinds | 21kinds | ||
Spindle reverse turning kinds | 12kinds | ||
n1 forward turning speed | 2—200r/min | ||
reverse turning speed | 2.25—178r/min | ||
Range of rest of each spindle turning | 56kinds | ||

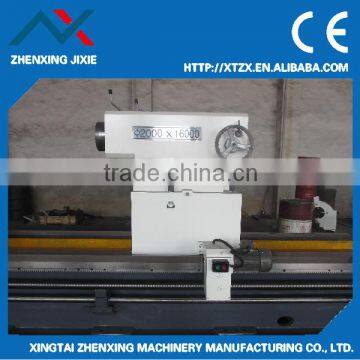

Tailstock | Dia. of tail stock sleeve | 180mm | |
Max. travel of tail stock sleeve | 300mm | ||
Taper of Tail stock sleeve | Metric 80 | ||
Thread turning range
| Metric thread types | 44kinds | |
Metric pitch range | 1~120mm | ||
Inch thread types | 31kinds | ||
Inch threads per inch range | 24~1/4 | ||
Module thread type range | 45kinds,0.5~60mm | ||
Tool holder | Max. travel of lower tool holder | 960mm | |
Max. travel of middle tool holder | 300mm | ||
Max. travel of top tool holder | 200mm | ||
Quick longitudinal move speed of tool rest | 3740mm/min | ||
Quick cross move speed of tool rest | 1870mm/min | ||

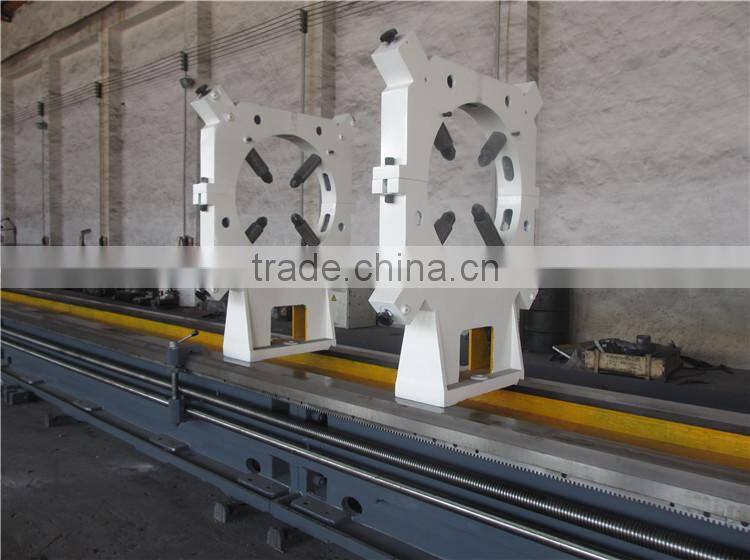

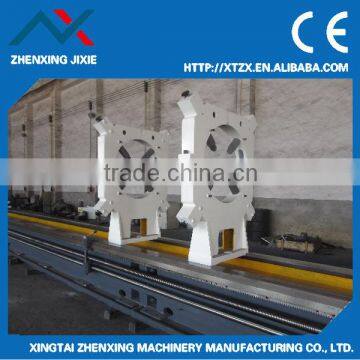

Follow rest | 935mm/min |
Gear fitting area
Blank area
Gear fitting area
Company area
we will fix the lathe &accessories to wooden case.Then spray anti-rust oil , hang up desiccant ensure safety of the machine in the long time shipping .
1. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about thement ship?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term
