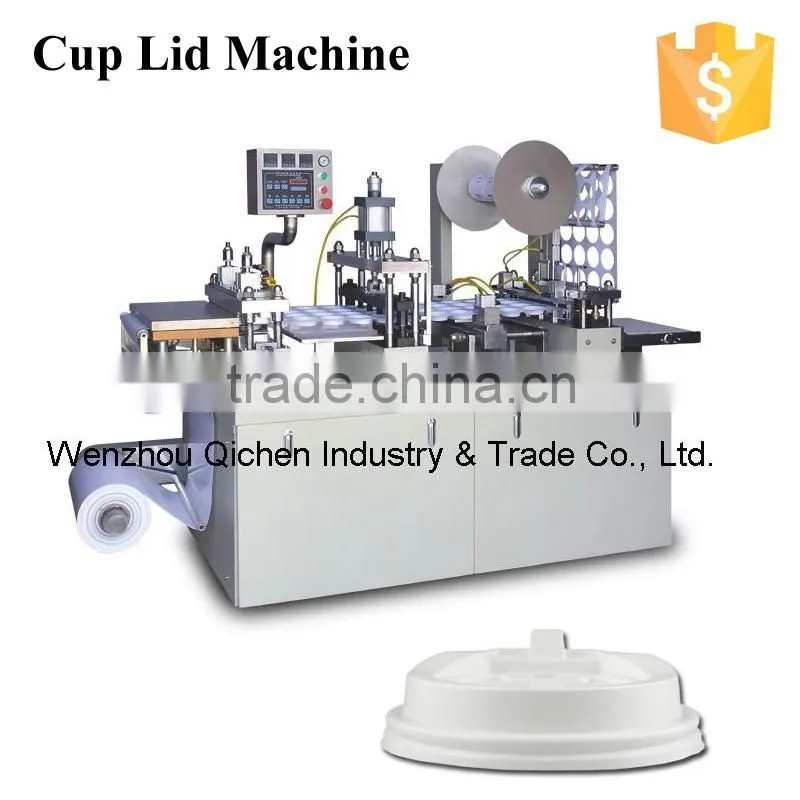

Convenient Operation Cup Lid Machine
- 50 Set / Sets per Month
- Ningbo
- T/T
Product Details
Condition: | New | Product Type: | Other, cup lid machine | Place of Origin: | Zhejiang, China |
Brand Name: | QC | Model Number: | QH-420 | Voltage: | 380V/220V 50 HZ |
Power(W): | 4KW | Dimension(L*W*H): | 2500*1000*1600mm | Weight: | 1000kg, 1000kg |
Certification: | CE Certification | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Company Brief Introduction:
Our service
we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best and professional service from us.
Quality and the after sell service is our aim: we do not only sell the products but solutions.We believe that you
will be satisfied with both our products and service.
Description of cup lid machine:
Automatic cup lid machine is designed and created by us , with the demand of medical Industry’s
'GMP' and food Industry ‘s 'QS' Standards.
It’s a new type that combines advantages of several types of main forming machines and adds
improvement and innovation .The machine can synchronous complete of production for forming Punching
and blanking .
It avoids the cross-contamination of products during the forming artificial punching and artificial blanking. so
that the production process of our machine is fully in accordance with 'GMP', as well as 'QS' requirements .
The Special forming equipment and the special blanking equipment of machine can save electricity , all
these can saving the costs of production. It’s widely used in the medicine plastic tray, PET/PS/PVS and
other plastic products etc. The machine has beautiful appearance, concession price, convenient operation
and humanized manufacturing, and it is deeply favored by users from home and abroad.
Cup Lid Machine
Technical specifications of cup lid machine
Name | QH-420 Cup Lid Machine | |
Material: | 0.15~0.55mm (HIPS, PET, PS, PVS, PVC, etc) plastic reel film; Max Reel Width: 430 mm | |
Punching Speed: | 15~45 beats/minute | |
Max Forming Depth: | 30~55 mm | |
Max Forming Area: | 420 x 160 mm | |
Move Stroke Rage: | 30~160 mm | |
Power: | 4KW | |
Power Source: | 380V 3-phase 50Hz, or other (power different, please info us in advance) | |
Weight: | GW/NW: 1000KG/900KG | |
Pack Size: | 2300 x 1000 x 1900 mm | |
Water Source: | Water Pressure: 0.2MPA; Water-Input: 0.3 m³/Hour | |
Air Source: | Air Pressure: 0.5~0.7 MPA; Air Input: ≥0.2 m³/minute | Need to buy Air Compressor |
Main Feature of cup lid machine:
# Compact structure, Stable movement, Easy operation and maintenance;
# Stepless frequency speed changing, PC electric control panel;
# Move-stroke adjustable, Mold exchangeable;
# Robot clamp-pull feeding, Accurate and reliable Synchronization;
# Available to make the mold against customer requirement.
Parts of cup lid machine
Samples made bu cup lid machine
Working process of cup lid machine
1. Raw Material
2. Heating
3. Air -Press Forming
4. Drill
5. Clamp-Pull
6. Punch
7. Lids Transfer
8. Edge Collection
Packing & Delivery of cup lid machine
Packing: Standard Export Wodden Box
Delivery: FCL or LCL
If you are interested in our cup lid machine, welcome to contact me~
