Welcome to Wenzhou Qichen Industry & Trade Co.,Ltd.
Quality and the after sell service is our aim: we do not only sell the products but solutions.We believe that you will be satisfied with both our products and service.
Company Brief Introduction:
Our service
we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best and professional service from us.
Factory & Workshop
Description:

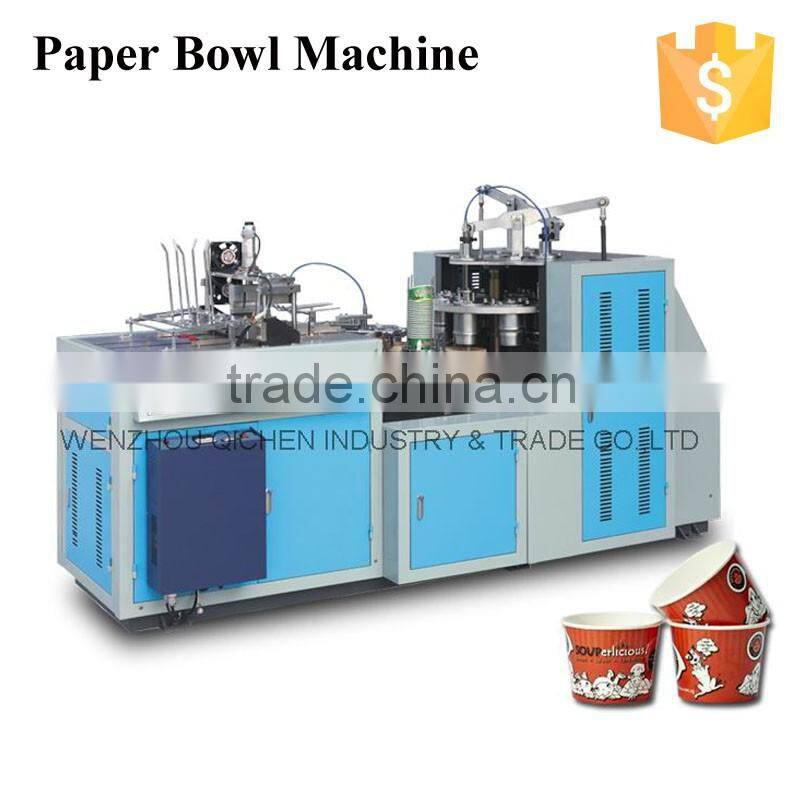

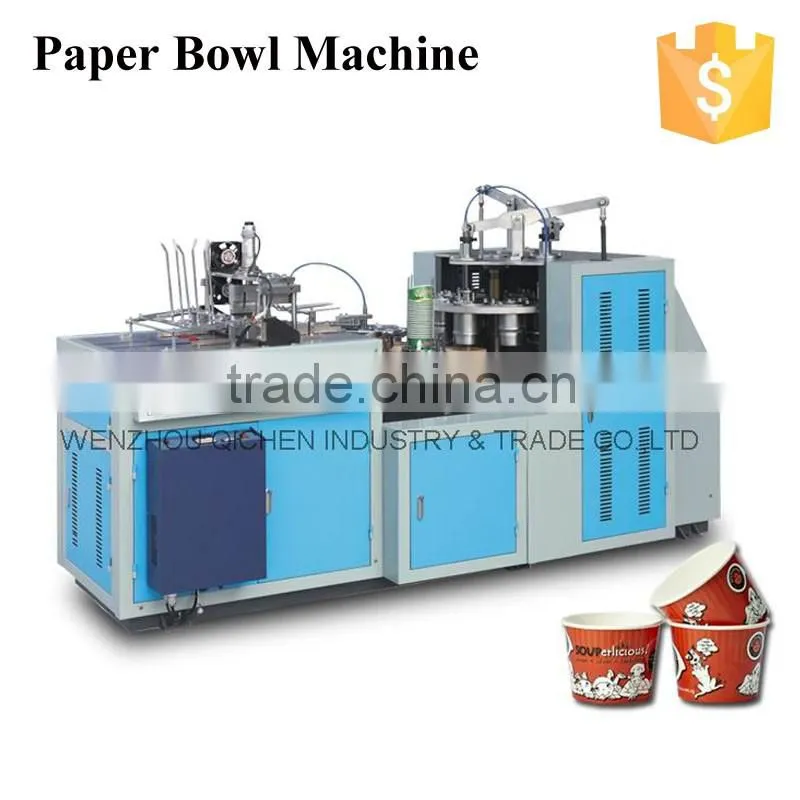

alibaba china paper bowl machine makes both one-side-PE-film-coated and two-side PE-film-coated
paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding,
two-step pre-heating, bowl-side-body sealing(ultrasonic wave), silicone-oil lubricating(for top curling),
bottom punching,two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl
discharging.
It is an ideal equipment of making soup paper bowls, noodle bowls, bigger paper cups and other
large food cone-shaping containers etc.
Samples made by paper bowl machine
Technical Specification
Paper Cup Size: |
20oz~50oz (mold exchangeable) |
Raw Material: |
One-side or two side PE(polyethylene)film coated/laminated paper; |
Suitable paper weight: |
140~450gsm |
Rated Speed: |
35~40 cups/minute |
Power Source: |
380V 50Hz, if your power is different, Please info us in advance. |
Total Power: |
6KW |
Total Weight: |
2500KG |
Pack Size (L*W*H) |
2900 x 1500 x 1900 mm |
Working Air Source: |
Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor |
Cup Side Welding: |
Ultrasonic |
Cup Bottom Heating: |
Hot Air |
Cup Bottom Knurling: |
Heater Knurling (if use single PE coated paper) |
Cool Device (recycle water) knurling, for double PE coated paper |
Size Range
Advantages
(1) Adopt 140# Index Gear Box for paper bowl machine, Normal one is 125 type.
140# type is much bigger and stronger than 125 type.
(2) We use two Index Gear Box (one is 140#, another one 100#), normally one gear box
is used in the paper bowl machine. 2-Gear Box keep the machine more stable.
(3) As showed above, we use two tension bars, while normally one is used.
Two make this part balanced, it will not swing after a long time.
Paper bowl machine competitive advantages:
1. We using Divided box is 125 type, which has two years warranty.
2. We using Speed reducer: 1:30 100 type
3. We using φ30 import steel shaft for the machine
4. We using 3 Cam to control the folding process.
5. We using two times paper feeding process.
6. We using Multilayer suckers for the paper taking
(1)125# gear box,
We use 125 type gear box, which has two years warranty.
Normally, 100 type gear box is used.
v 125 type is much bigger and stronger than 100 type.
v 100 type gear box, if used for one year, is easier to have problem.
The gear box is very important to the machine. It control the whole machine, if there are some problems with these two parts, then, you have to change the gear box. In this case, the machine should be taken apart, because it is inside the machine. It takes much time, and sometimes you cannot install the machine correctly. So it is necessary to use better gear box.

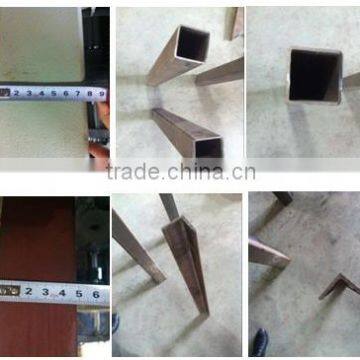

(2) The frame of the machine
The frame of new machine is thicker which can bear more weight than thinner one. So when the machine works it is more stable.
Paper bowl machine whole production line

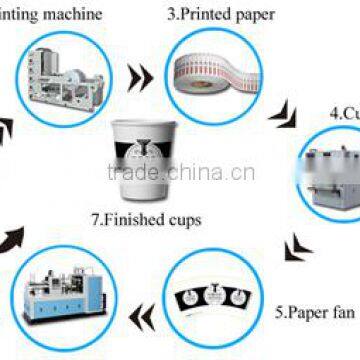

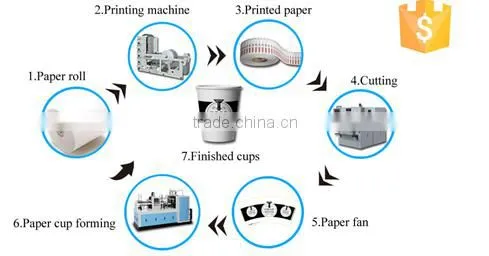

Paper bowl machine making process
Printing Step: The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the cups.
Cutting Step: In this step, you should decide the size of the cup, so we can cut the paper fan in decided size.
Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.
Delivery & Packing
packing:FCL: paper bowl machine with wood tray and plastic film.
LCL: paper bowl machine with wood box and plastic film.
We will Spraying oil in paper bowl machine for keeping rust away
If you are interested in our paper bowl machine , welcome to contact me~
