We provide not only the machine but also the solve ways. We believe that you will be satisfied with our high quality machine.
HX-GAP Auto High-Speed Bottom Lock box printing machine
Main Technical Parameters: box printing machine
Model |
HX-780GAP Automatic Corrugated Box Making Machine |
HX-1050GAP Automatic Corrugated Box Making Machine |
HX-1200GAP Automatic Corrugated Box Making Machine |
HX-1450GAP Automatic Corrugated Box Making Machine |
|
paper Material |
Cardboard 210-800g, A/B/E Corrugated |
||||
Max.Liner speed |
220m/min |
||||
Feeding way |
Automatically and continuously feeding |
||||
Way of folding in reverse |
Fold 1 and fold 3 are 180° |
||||
Glue |
Water-base cold glue |
||||
Power Supply |
3P 380V 50HZ |
||||
Main motor power |
5.5KW |
7.5KW |
7.5KW |
11KW |
|
Total power |
7KW |
7KW |
9KW |
12.5KW |
|
Weight |
7T |
8T |
8.5T |
10T |
|
Overall dimension |
16*1.5*1.45m |
16*1.75*1.45m |
16*1.9*1.45m |
16*2.15*1.45m |
|
Remarks: Automatic Corrugated Box Making Machine
# Price Given on T/T Payment, Extra USD1000/Shipment For L/C Payment.
# Price Term: FOB Ningbo port, China.
# Payment: T/T( 30% deposit, 70% before delivery) or L/C.
# Lead Time: 30 working days at sight the deposit.
# Packaging: Seaworthy Wooden Packing.
# After Sale Service:
1. Spare parts guarantee for one year,
2. Send technician for installation & training, the cost cover by buyer( round tickets, accommodation, an allowance of USD70 a day).
DESCRIPTION: Automatic Corrugated Box Making Machine
Series HX-GAP folding gluing machine is dual purpose machine, adopt synchronous belt transmission and electronic continuously variable speeder ,
domestic standard electronic components,feeding section adopt mechanic continuously variable, stable and easy to control and operate.
It is especially designed for various cardboard, corrugated-paper packaging, adapts correction function, and make corrugated boxes perfectly meet the requirements of auto packaging.
(in case of any special function required, we can design according to the customer’s needs.).

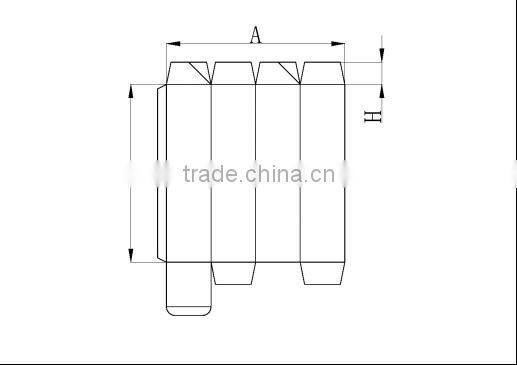

Size of bottom-locked carton and folding carton

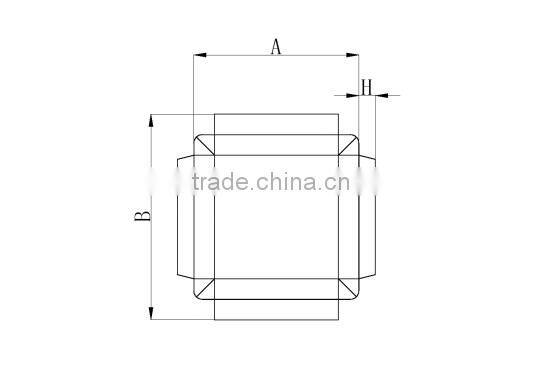

Carton type and size:

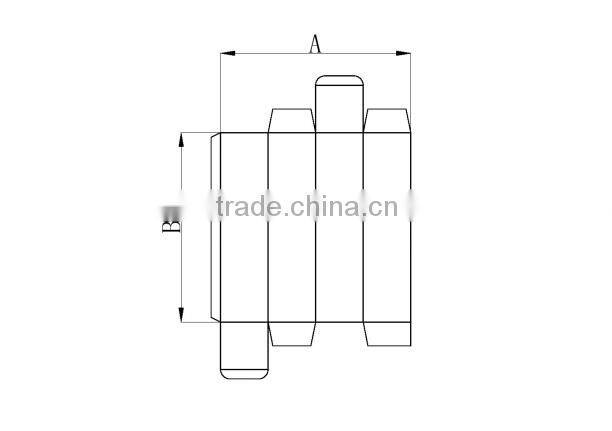

Size of two-sides glue box and folded box:
Advantage and improvement: Automatic Corrugated Box Making Machine
1. Feeding section
1. Auto feed correctly and continuously , internal of feeding is adjusted by continuously variable speeder;
2. Independent high-speed feeding bell can be easily adjusted;
3. Independent vibrating motor can improve feeding greatly;
4. Feeding blade and baffle on the left and right can be adjusted supper and down to shorten adjusting and carton changing time.
2. Paper Correction
Auto paper correction device , to correct the deflection or slanting of feeding, to ensure the correct paper transportation.
3. Bottom folding
1. Upper gluing bucket can adjusted separately up and down , right and left ,to ensure the gluing quality.
2. Bottom gluing bucket can be adjusted right and left, set gluing amount , east to assemble , disassemble and clean .
3. The entire bottom-lock part is installed in a reversible bracket , substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
4. Bottom -folding speed is 50-400 pcs per min , stable and reliable.
4. Folding
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
5. Full pressing
1. Pressure can be adjusted conveniently , reliable ,ensure good quality of gluing ;
2. With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
6.Transmission
Structure is specially designed , pressure adjustment is easy and reliable to ensure the quality of gluing .
P.S
Main driver adapts synchronous belt for power transmission.
Motor adopts variable-frequence speeder to make it running more stable.
Automatic Corrugated Box Making Machine
