Specifications
1.It has small size.blow moulding machine2.low energy consumption rate
3.easy to operate and maintain

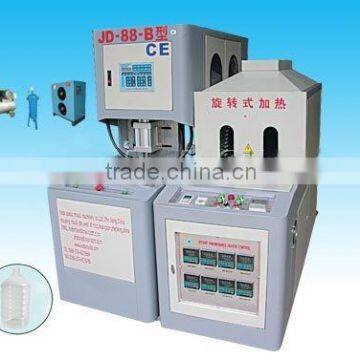

JD-88-B two-step big neck Bottle Blowing Machine specialize in blowing big neck Ø200mm up to 10L bottles.
It has small size, low energy consumption rate, easy to operate and maintain etc.
Technology Parameters
S/N |
Item |
Unit |
Technology Parameters |
||
1 |
Raw material |
NO |
PET/PMMA/PS/PP |
||
2 |
Working pressure(air) |
Mpa |
0.8-1.2 |
||
3 |
Blowing-pressure |
Mpa |
1.2-3.0 |
||
4 |
Voltage/Frequency |
V/Hz |
220V/380V/50Hz,60Hz |
||
|
5
|
Rated power |
Heater |
KW |
5(220V) |
|
Air Compressor. |
KW |
11(380V) |
|||
6 |
Max mould effective dimension(LxWxH) |
mm |
500X340X280 |
||
7 |
Mould Opening Stroke |
mm |
220 |
||
8 |
Max mould thickness |
mm |
300 |
||
9 |
Center Distance between two Cavities |
mm |
150-260 |
||
10 |
Volume of product |
ml |
1500-2000 |
||
11 |
Max Stretch Length |
mm |
400 |
||
12 |
Clamping force |
kN |
60 |
||
13 |
Capacity |
Pcs/h |
150-450 |
||
|
14
|
Machine dimension(lXWXH) |
Main machine |
mm |
1800X580X1560 |
|
Heater |
mm |
1750X600X1450 |
|||
15 |
Machine weight |
Main machine |
kg |
600 |
|
Heater |
kg |
200 |
|||
16 |
Air Compressor |
Dimension(LxWxH) |
mm |
1700X670X1220 |
|
weight |
kg |
410 |
|||
17 |
Air Filter |
Dimension(LxWxH) |
mm |
250X250X600 |
|
weight |
kg |
15x2pcs |
|||
18 |
Freezed Dryer |
Dimension(LxWxH) |
mm |
890x550x1000 |
|
weight |
kg |
175 |
|||
19 |
Temperature range |
°C |
15-110(PET) 15-180(PMMA,PS,PP) |
||
