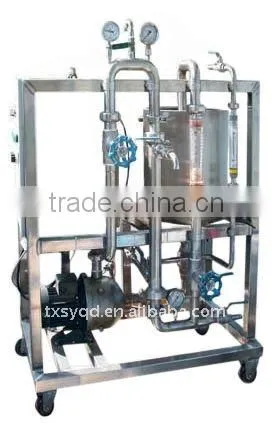

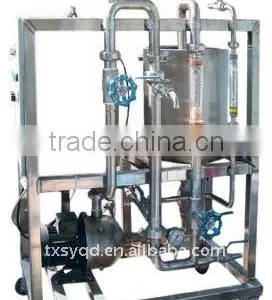

Help CenterCF Ceramic Dynamic Filter
Related Products
Specifications
CF Ceramic dynamic filter is one kind of liquid separation process adopting slag screen type.CF ceramic dynamic filter
1.Equipment Introduction
Inorganic film is multi-pore precise porcelain filtering material made via agglomeration of alumina, titanium oxide and zirconia with multi-pore support layer, transition layer and micropore film symmetrically distributed the filtering precision covers micro-filtering, super-filtering or even nano-meter.
Ceramic film filter is one kind of liquid separation process adopting slag screen type: the liquid flows in the tube with high speed, clean liquid will penetrate the film and thick condensed liquid is left under drive of pressure so that separation, concentration and purification are finished.
- Inorganic ceramic film has many advantages that traditional medium do not have, such as casing, centrifugal machine, diatomite and polymer film.
- Excellent chemical stability, resist to acid, alkali and oxidation;
- Resist to organic solvent;
- Resist to high temperature;
- High mechanical intensity and wearable ability;
- Narrow distribution, high separating precision, nano-meter filter;
- Longer service life in contrast with organic film;
- Easy to be cleaned, disinfected in medical or under high temperature, back-cleaning is available.
Aperture/ Left Molecular Weight |
MF1.2-0.8-0.2-0.1μm UF50-30nm 100-50-20-5KD NF1-0.45KD |
||||||
Outside Diameter mm |
10 |
30 |
30 |
25 |
30 |
40 |
40 |
Diameter of Passage mm |
7.0 |
6.0 |
3.8 |
6.0 |
4.0 |
3.6 |
6.0 |
Passage Number |
1 |
7 |
19 |
9 |
19 |
37 |
19 |
Length mm |
1016 |
1016 |
1016 |
1200 |
1016 |
1000 |
1000 |
Area of Film m2 |
0.02 |
0.13 |
0.23 |
0.20 |
0.23 |
0.42 |
0.38 |
2.CMF-M Micro Filter Film Series
Aperture of Film: 1.2μm,0.8μm,0.2μm,0.1μm
Materials of Support: 99%a Alumina
Material of Film: alumina, zirconia
Porosity:35%
Resistance to acid and alkali: PH0-14
Adaptable Temperature: <150°C
Components of Outer Casing
Component Number of Filling Film: 1,3,7,12,19,37,61,99 element
Length and Diameter of Matched Components of Film: 250-1200mm/Outside Diameter 25, 30, 40mm
Main Materials: 304ss,316L,Ti metal,polypropylene
Airproofing Material: PVA RUBBER, Fl rubber, silicon rubber
Joint Form: flange, clip hoop, mobile joint/DN15-400
Standard: iso,din/chemical grade,sanitary standard
CMF-M Micro-pore Screen Film
Aperture: 50nm,30nm,100-50-20-5KD
Material of support: I99%aalumina
Material of Film Layer: zirconia and titanium oxide
Porosity: 35
Resistance to Acid and Alkali: PH0-14
Adaptable Temperature: <150°C
Biological Pharmacy
Antibiotic: vitriol bacilli, cephalosporin, inosine and erythromycin, etc.
Ferment Organic Acid: lactic acid and citric acid
Amino Acid: lysine, glutamic acid, phenylalanine and glycin, etc.
Vitamin: vitamin C, vitamin B2, vitamin B12
Chinese patent medicine: unilateral and compound oral liquid, injection and extract from Chinese traditional medicine, etc.
Enzyme agent: acid enzyme and albumen enzyme, etc.
Biochemical Product: thymic peptide, interferon, bacterin, etc.
Extracts from natural products: shallot root extract, bean polypeptide, natural coloring matter and tea polyphenols, etc.
Environmental Protection Water Waste
Water waste from cold rolling and emulsificated liquid of steel and iron factory
Water waste from paper money-printing and plate-cleaning
Water waste with emulsificated liquid in auto industry
Water waste from coolant and degreased liquid of machine processing industry
Water waste from alkali-processing and cleaning in grease industry
Water waste from processing and cleaning in grease industry
Water waste from industrial acid and alkali
COD/BOD water waste with high concentration, for instance dye and discharge
Water waste with heavy metal and radiated components
Water waste from electroplating industry
Grinding and micro-electronics water waste
New Materials
Salt-removal and purification of nano-meter
Concentration and collection of rare metal
Food and Beverage
Dairy Product: sterilization and concentration of cattle foremilk, yoghourt and milk albumin, standardization of protein
Wine: wine, beer, ratafee and yellow wine, etc.
Fruit Juice: apple juice, berry juice and pineapple juice, etc.
Sugar: beet sugar, cane sugar and starch sugar, etc.
Brewing product: sauce, vinegar
Deep-processing tea: tea beverage, catechu, etc.
Deep-processing Bean: polypeptide, isoflavone and oligosaccharide
Deep-processing Ocean Plant
Petrochemical Industry
Recollection and concentration of catalyzer
Catalyzing reactor and inorganic film
Purification, classification and concentration of products
Recollection of organic solvent
Air Separation
Treatment of Industrial Water
Treatment of Surface Water
Treatment of Military Water
