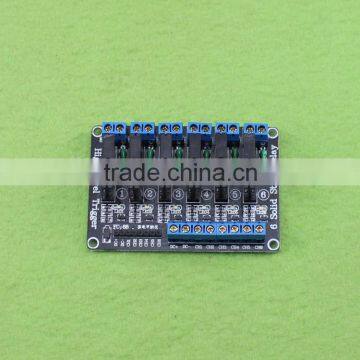

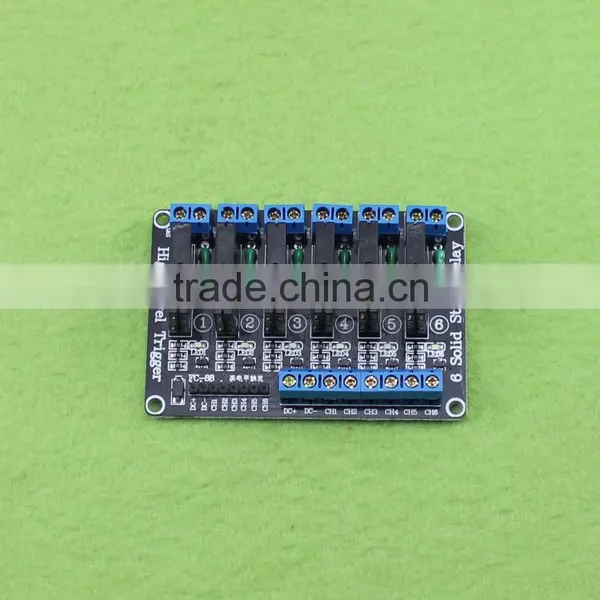

Help Center6 Way Solid State Relay Module 5V High Level Trigger Solid State Relay With Fuse Epansion Board
Related Products
-
Two Way Control Solenoid Valve Water Pump Switch Dual Circuit MOS Tube Module Cycle Time DelayUS$ 1 - 100MOQ: 1 Piece -
10DOF MPU6050 HMC5883L BMP180 GY-87 Sensor ModuleUS$ 1 - 100MOQ: 1 Piece
-
1/6W Resistance 1/8W Resistance 1/16W Resistance 1% Metal Film 5000 per Pack (wholesale)US$ 1 - 100MOQ: 1 Piece
-
Embedded WIFI Serial Wireless Transparent Transmission Module Microcontroller UART Serial to WIFIUS$ 1 - 100MOQ: 1 Piece
-
Caroline TGS2602 Gas FIGARO Air Quality SensorUS$ 1 - 100MOQ: 1 Piece
Product introduction:
1OMRON 5V solid state relay 2A 240V, the output of live resistance type fuse 2A. 240V
2, size: 80*56*25 (length * width * high) net weight:Si0g
3, input power: DC 5V (160MA)
4Input control signal voltage:
(0-2.5V state low level relay ON)
(3.3-5V state high level relay OFF)
52.54CM, pin and blue KF301 terminal control line more convenient.
Module interface:
Input section:
DC+:Power supply (by relay voltage)
DC-:Negative electrode
CH1: 1 wayRelay module signal trigger(high level trigger active)
CH2: 2Road relay module signal trigger(high level trigger active)
CH3: 3 wayRelay module signal trigger(high level trigger active)
CH4: 4Road relay module signal trigger(high level trigger active)
CH5: 5Road relay module signal trigger(high level trigger active)
CH6: 6Road relay module signal trigger(high level trigger active)
High level and low level meaning:
High level triggerRefers toThere is a positive voltage between the signal trigger terminal (IN) and the negative electrode of the power supply, which is usually used as the positive electrode of the power supply and the trigger terminal.A trigger connected, when the trigger end has a positive voltage or reach the trigger voltage, the relay is closed.
Low level triggerRefers toSignal to trigger between the end and the negative electrode of the power supply voltage is ov, or to say the trigger voltage lower than the positive power supply voltage, low to can trigger voltage, the relay is usually to the negative terminal of the power supply and the triggering endA trigger mode connection, the relay is closed.
Electrical parameters:
Voltage version Quiescent current Operating current Trigger voltage Trigger current
1Lu 5V 0mA 13.8mA 2.5-5V2mA
2Lu 5V 0mA 26.8mA 2.5-5V 2mA
3Lu 5V 0mA 37mA 2.5-5V 2mA
4Lu 5V 0mA 48mA 2.5-5V 2mA
5Lu 5V 0mA 59mA 2.5-5V 2mA
6Lu 5V 0mA 70mA 2.5-5V 2mA
Product instruction:
Module power supply: the power supply must be DC, voltage and relay voltage to match
