Industrial DKC-1A stepper motor controller / pulse generator / servo / potentiometer speed control

stand tube or reel

•

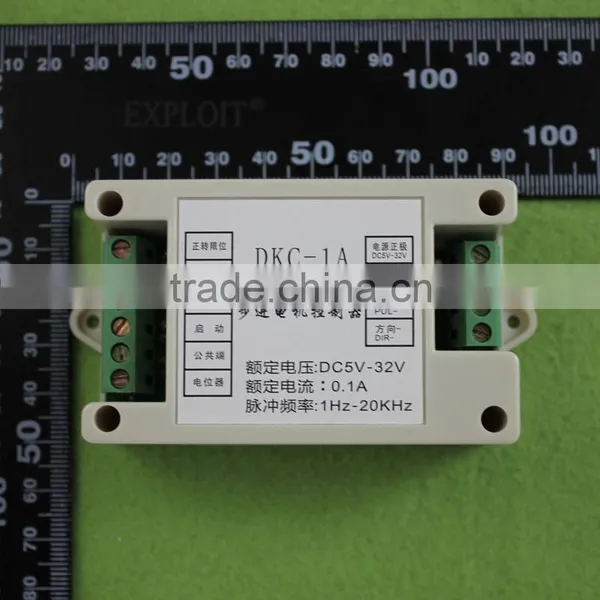

• voltage input,5-32DC;
• With the power supply protection, over-voltage protection, over current protection, completely protect the safety of the controller
• Signal input point is the bottom level input;
• optimizedSType acceleration curve
• The highest output frequency can be achieved20K
• The input and output Optocoupler
• Board potentiometer adjustment, eternal potentiometer automatic switching

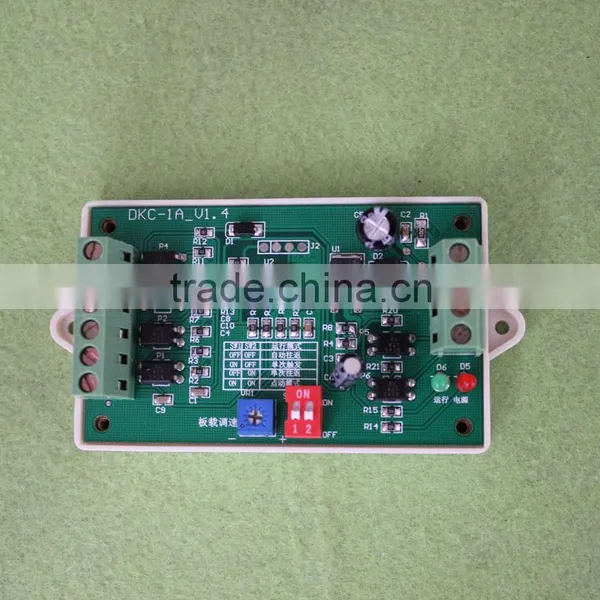

• A variety of functions, set up a simple, functional and practical, volume 5*8.2CM
• Attached statement

Functional modes are:

1: automatic round trip mode

2: single round trip mode

3: single trigger mode

4: point moving mode

Control applications: (automatic round trip mode)

1Equipment inAAndBBetween point and round trip.

After the device is powered on, the eternal trigger is activated.Run, device run toAPoint positive transfer limitAfter the automatic reverse run toBspotAfter inversion limit,Running to theAPoint, so running back and forth. Until the trigger stops the motor stops running.

Parameter setting:

1set upSW1=OFF,SW2=OFF(auto round trip mode)

2Plate load speed regulationEternal potentiometer,Adjust the appropriate speed.

Control application two: (single trigger mode)

1Equipment fromAPoint toBStop after point. Restart the device from B point to A point stop.

After the device is powered on, the eternal trigger is activated.Run, device toAspotDeparture, when the device runs toBPoint positive transfer limitAfter the device stops running, if the device is started again, the device is triggered from the B point to reach theAAfter the point, the device stops. start-upA->B stop, start B->A stop the movement process. If the device is in operation, the motor stops running immediately.

Parameter setting:

1set upSW1=OFF,SW2=ON(single trigger mode)

2Plate load speed regulationEternal potentiometer,Adjust the appropriate speed.

Control application three: (single round trip mode)

1Equipment fromAPoint toBReturn to A point after point stop.

After the device is powered on, the eternal trigger is activated.Run, device toAspotDeparture, when the device runs toBPoint positive transfer limitAfter the device is back running, when theAAfter the point, the motor stops. Finish once

A->B->A motion process. If the device is in operation, the motor stops running immediately.

Parameter setting:

1set upSW1=ON,SW2=OFF(single round trip mode)

2Plate load speed regulationEternal potentiometer,Adjust the appropriate speed.

Control application four: (point dynamic mode)

1Completely eternal switch controller start stop, positive reverse.

After the device is powered up, the input end of the input terminal level motor is running,

Bottom level cancel, motor stop.

To stop the input end of the end of the motor reversing operation,

Bottom level cancel, motor stop.

Parameter setting:

1set upSW1=ON, SW2=ON(point motion mode)

2Board speed controlEternal potentiometer,Adjust the appropriate speed.
