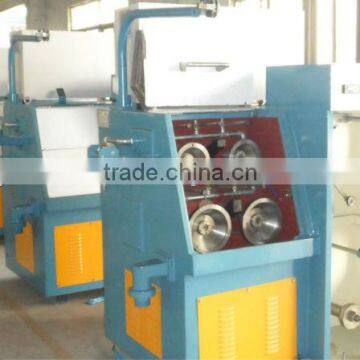

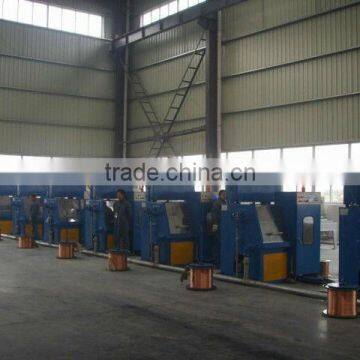

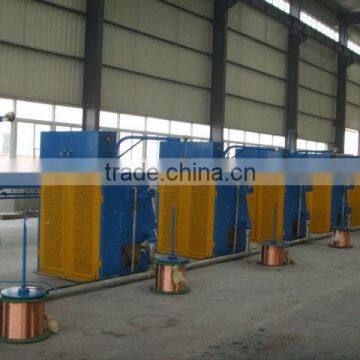

High Speed Copper Wire Drawing Machine(HXE-22DS)

High Speed Copper Wire Drawing Machine(HXE-22DS) thumbnail-1
High Speed Copper Wire Drawing Machine(HXE-22DS) thumbnail-2
High Speed Copper Wire Drawing Machine(HXE-22DS) thumbnail-3
High Speed Copper Wire Drawing Machine(HXE-22DS) thumbnail-4
High Speed Copper Wire Drawing Machine(HXE-22DS) thumbnail-5
High Speed Copper Wire Drawing Machine(HXE-22DS) thumbnail-6
High Speed Copper Wire Drawing Machine(HXE-22DS) photo-1
High Speed Copper Wire Drawing Machine(HXE-22DS) photo-2
High Speed Copper Wire Drawing Machine(HXE-22DS) photo-3

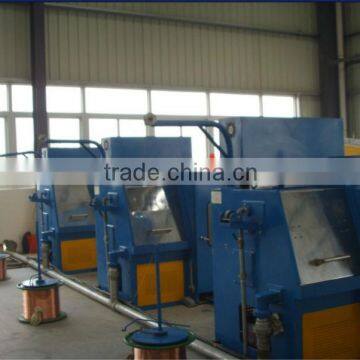

High Speed Copper Wire Drawing Machine(HXE-22DS) photo-4

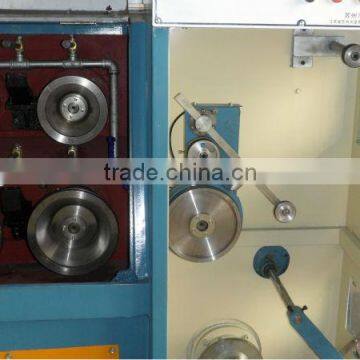

High Speed Copper Wire Drawing Machine(HXE-22DS) photo-5
High Speed Copper Wire Drawing Machine(HXE-22DS) photo-6
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
0.6mm-1.2mm
Outlet Diameter:
0.1mm-0.32mm
Contact Supplier Request Quote Chat Now
Suzhou Hengxie Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Inlet Diameter 0.6mm-1.2mm
Outlet Diameter 0.1mm-0.32mm
Place of Origin Jiangsu, China
Brand Name HXE
Model Number HXE-22DS
Voltage 380V
Power(W) 11KW or customized
Dimension(L*W*H) 2050L*1600W*1900H
Weight 2500kg
Certification ISO SGS
Warranty 1 Year, 1 Year
After-sales Service Provided Engineers available to service machinery overseas

HXE-22DS high spedd copper wire drawing machine

Technoic Detail

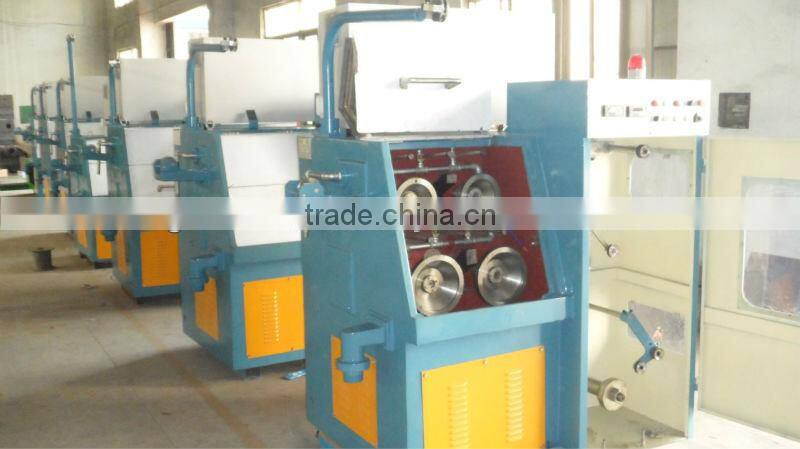

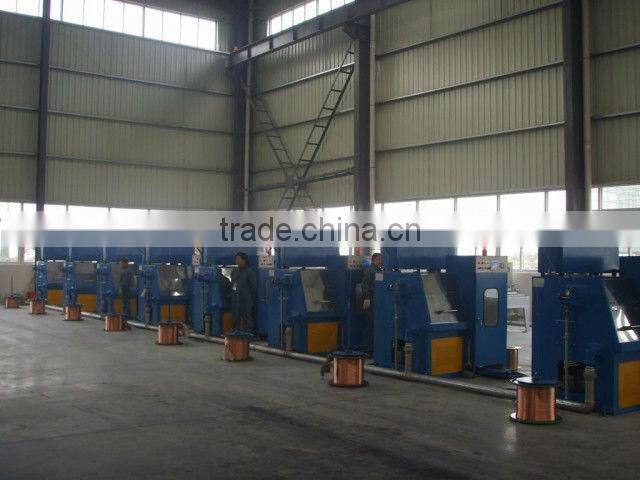

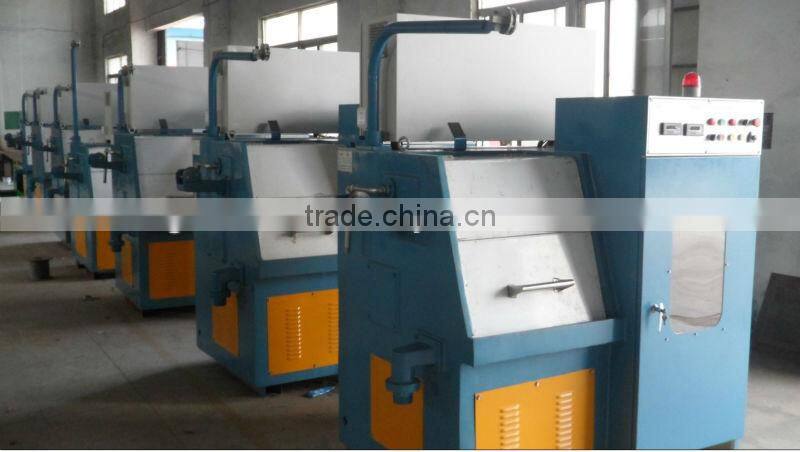

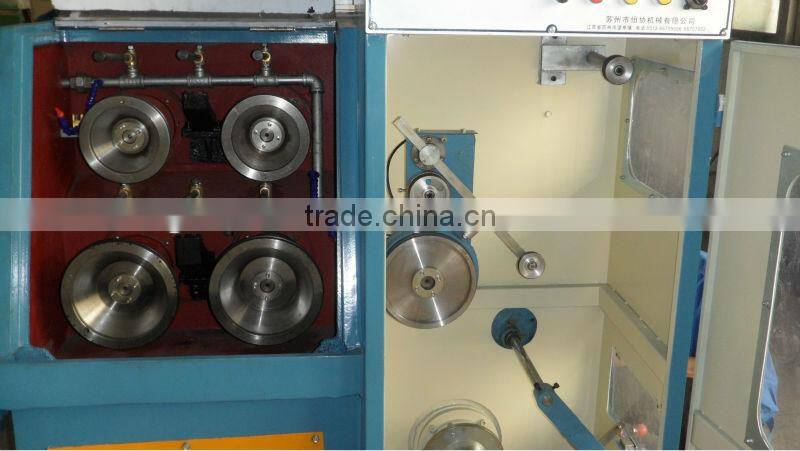

High speed copper wire drawing machine(HXE-22DS)High speed copper wire drawing machine(HXE-22DS)High speed copper wire drawing machine(HXE-22DS)High speed copper wire drawing machine(HXE-22DS)High speed copper wire drawing machine(HXE-22DS)

Inlet diameter 0.6mm-1.2mm
Outlet diameter 0.1mm-0.32mm
Dies 22
High speed 2500
Slip ratio of machine 15%
Slip ratio of Fix speed capstan 8%
Capstan Ceramic plasma
Capstan diameter 242mm
Fix speed capstan 207mm
Frame Iron cast
Main motor 11KW or customized
Spool motor 3.7KW three phase ACmotor
Revise system Synchronous control spoole
Inverter control Dual inverter control
Transmisson type Flat belt
Pay-off method Over-head
Traversing unit Flat belt+synchronous motor
Tension control Weight balance by swing arm
Lubrication type spray
Bobbin size 300mm-400mm or custonized
Spooler capacity 50-60kg
Bobbin loading Shaft
Power source 380V or customized
Brake Magnetic brake

For any require for any question and information technoic detail contact me.
