Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Drawing Machinery > HXE-14DS Fine Copper Wire Drawing Machine

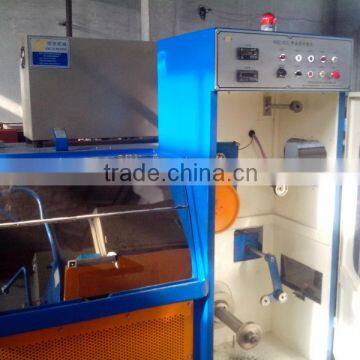

HXE-14DS Fine Copper Wire Drawing Machine
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
0.8mm-1.6mm
Outlet Diameter:
0.25mm-0.6mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HXE-24DScable Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set -
HXE-14DS High Speed Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
High Quality Copper Wire Drawing Machine(HXE-22DS)US$ 1 - 2MOQ: 1 Set
-
HXE-24DS High Speed Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
HXE-14DS Copper Cable Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
Condition
New
Inlet Diameter
0.8mm-1.6mm
Outlet Diameter
0.25mm-0.6mm
Place of Origin
Jiangsu, China
Brand Name
HXE
Model Number
HXE-14DS
Voltage
380V
Power(W)
15KW or customized
Dimension(L*W*H)
2600L*1600W*1900H
Weight
2200kg
Certification
ISO SGS
Warranty
1 Year, 1 Year
After-sales Service Provided
Engineers available to service machinery overseas

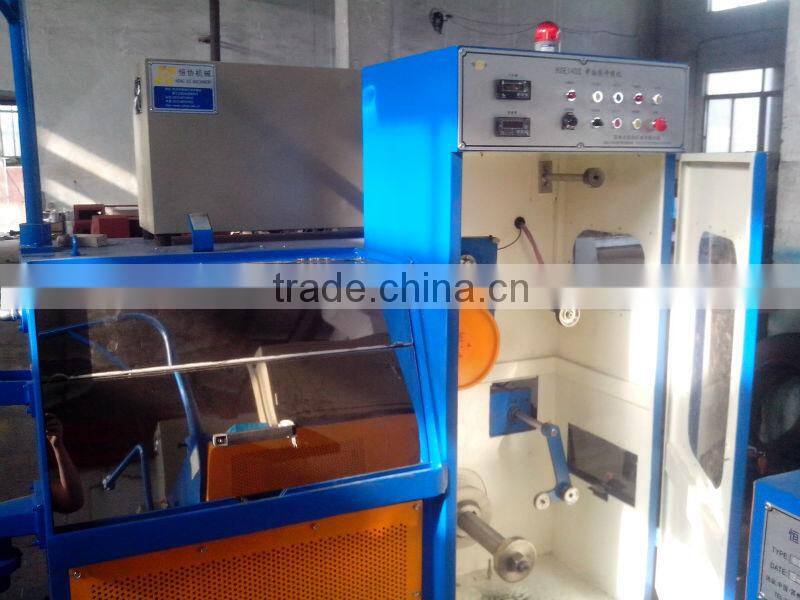

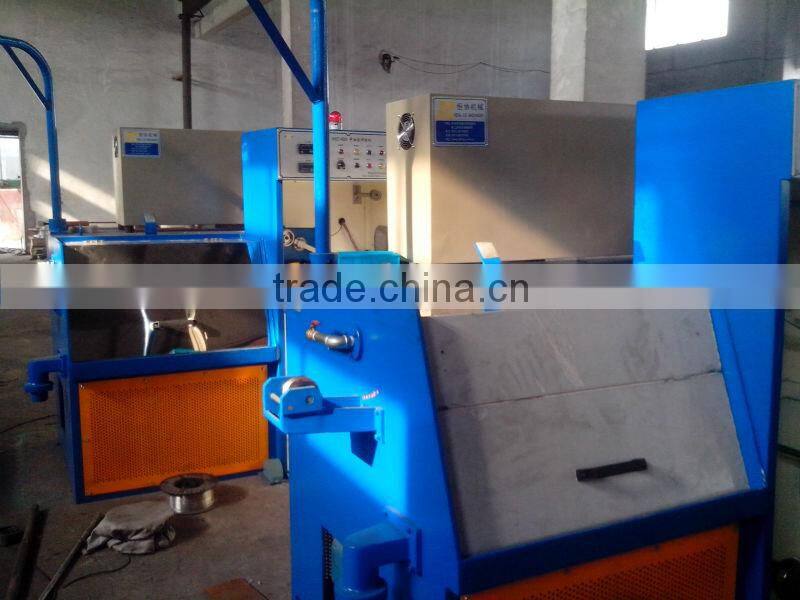

HXE-14DS fine copper wire drawing machine
Technoic Detail
| Inlet diameter | 0.8mm-1.6mm |
| Outlet diameter | 0.25mm-0.6mm |
| Dies | 14 |
| High speed | 1500 |
| Slip ratio of machine | 15% |
| Slip ratio of Fix speed capstan | 8% |

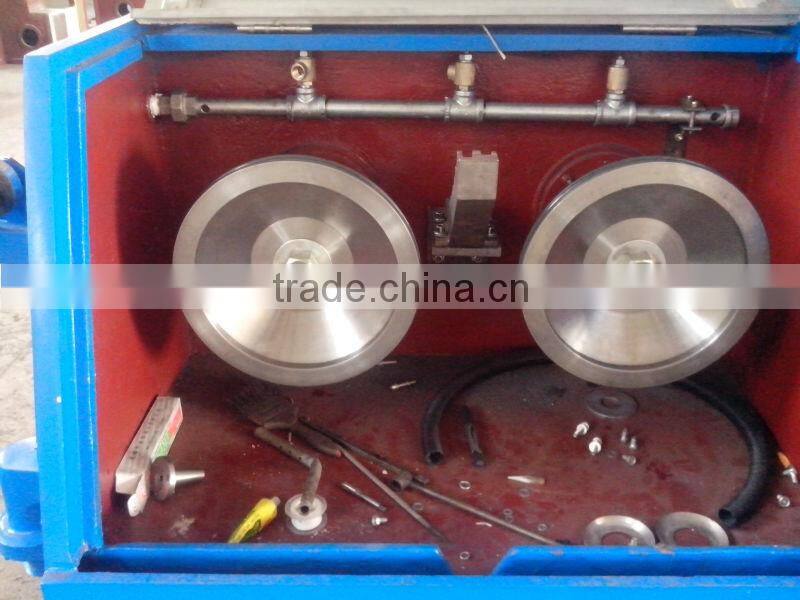

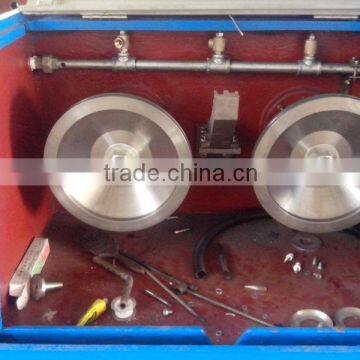

| Capstan | Ceramic plasma |
| Capstan diameter | 316mm |
| Fix speed capstan | 268mm |
| Frame | Iron cast |
| Main motor | 15KW or customized |
| Spool motor | 5.5KW three phase AC motor |
| Revise system | Synchronous control spoole |

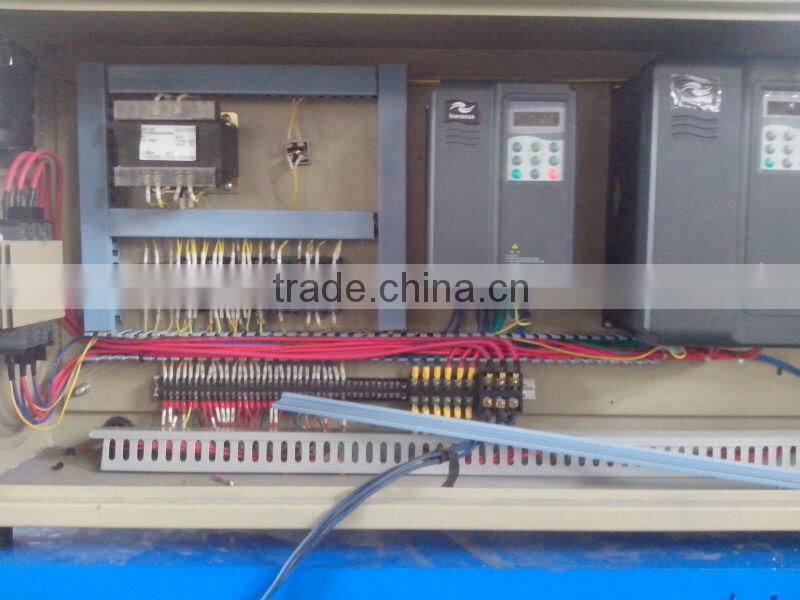

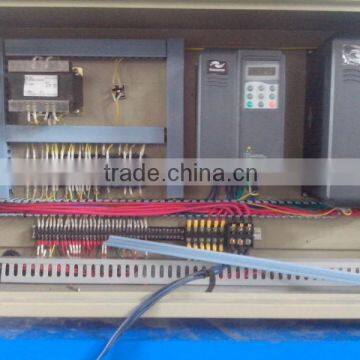

| Inverter control | Dual inverter control |

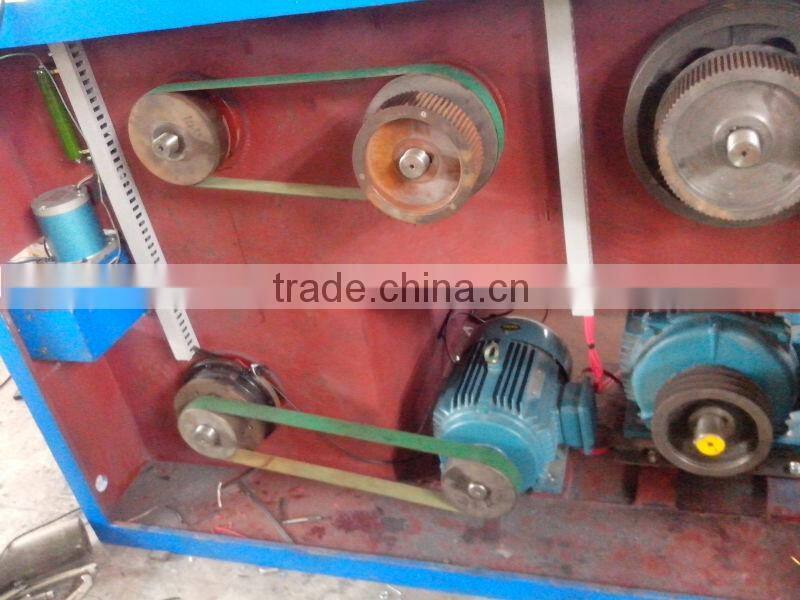

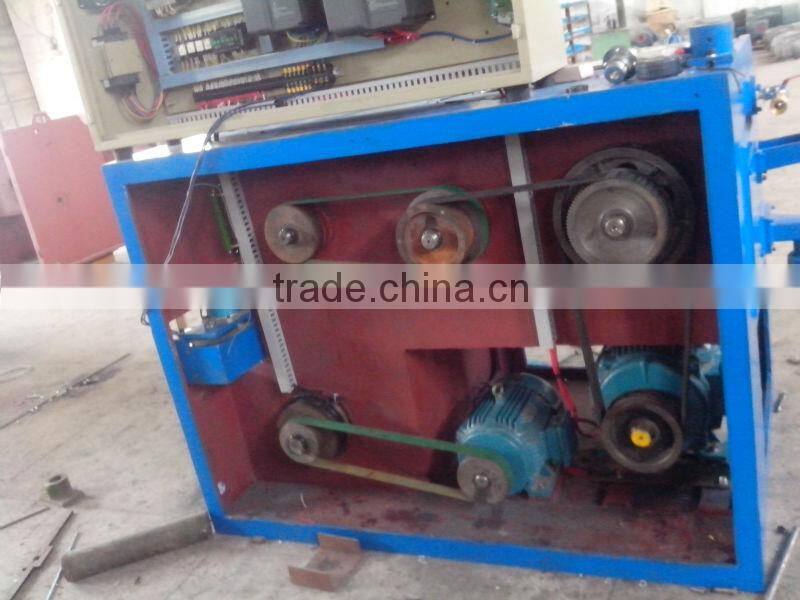

| Transmisson type | Flat belt |
| Pay-off method | Over-head |
| Traversing unit | Flat belt+synchronous motor |
| Tension control | Weight balance by swing arm |
| Lubrication type | spray |
| Bobbin size | 300mm-400mm or custonized |
| Spooler capacity | 50-80kg |
| Bobbin loading | Shaft |
| Power source | 380V or customized |
| Brake | Magnetic brake |
For any require for any question and information technoic detail contact me.
