Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Drawing Machinery > HXE-24DScable Wire Drawing Machine
HXE-24DScable Wire Drawing Machine
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
0.5mm-1.0mm
Outlet Diameter:
0.08mm-0.25mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HXE-14DS High Speed Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set -
High Quality Copper Wire Drawing Machine(HXE-22DS)US$ 1 - 2MOQ: 1 Set
-
HXE-24DS High Speed Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
HXE-14DS Copper Cable Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
HXE-24DS Fine Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
Condition
New
Inlet Diameter
0.5mm-1.0mm
Outlet Diameter
0.08mm-0.25mm
Place of Origin
Jiangsu, China
Brand Name
HXE
Model Number
HXE-24DS
Voltage
380V
Power(W)
11KW or customized
Dimension(L*W*H)
2050L*1600W*1900H
Weight
2500kg
Certification
ISO SGS
Warranty
1 Year, 1 Year
After-sales Service Provided
Engineers available to service machinery overseas
HXE-24DS cable wire drawing machine
Technoic Detail
| Inlet diameter | 0.5mm-1.0mm |
| Outlet diameter | 0.08mm-0.25mm |
| Dies | 22 |
| High speed | 2500 |
| Slip ratio of machine | 13% |
| Slip ratio of Fix speed capstan | 8% |

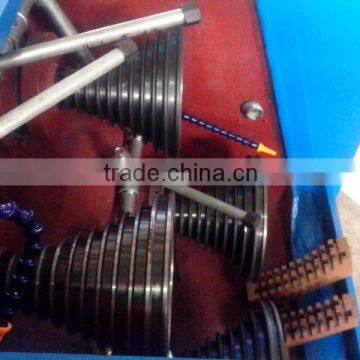

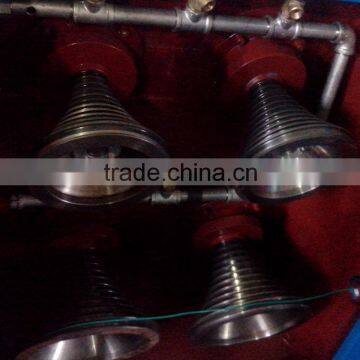

| Capstan | Ceramic plasma |
| Capstan diameter | 242mm |
| Fix speed capstan | 207mm |
| Frame | Iron cast |
| Main motor | 11KW or customized |
| Spool motor | 3.7KW three phase ACmotor |
| Revise system | Synchronous control spoole |
| Inverter control | Dual inverter control |
| Transmisson type | Flat belt |
| Pay-off method | Over-head |
| Traversing unit | Flat belt+synchronous motor |
| Tension control | Weight balance by swing arm |
| Lubrication type | spray |
| Bobbin size | 300mm-400mm or custonized |
| Spooler capacity | 50-60kg |
| Bobbin loading | Shaft |
| Power source | 380V or customized |
| Brake | Magnetic brake |
For any require for any question and information technoic detail contact me.
