Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output thumbnail-3

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output thumbnail-4

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output thumbnail-5

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output photo-1

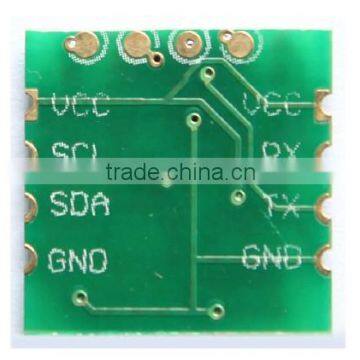

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output photo-2

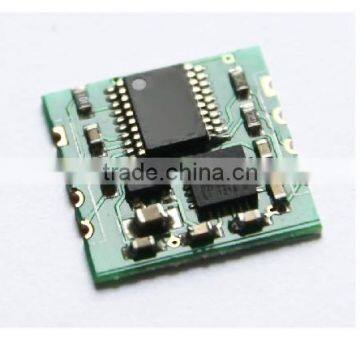

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output photo-3

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output photo-4

Serial 6 Ais Accelerometer / Gyroscope MPU6050 Module, Calman Filter, Angle Output photo-5

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Business Type:

Manufacturer, Trading Company, Distributor/Wholesaler

Year Established:

2015

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Shenzhen Huachengweiye Electronics Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

FlYing four ais tYpe, self balanced vehicle optimal sensor scheme, some children's shoes said, no magnetic field sensor, there is no pressure sensor, can do four ais aircraft? Isn't the Yaw ais drift over time? I want to tell You is, the magnetic field and the pressure is chicken ribs for details, see the description at the end of the correlation analYsis.

Latest update software, support 51/AVR/Arduino/STM8/STM32, such as a varietY of single-chip.

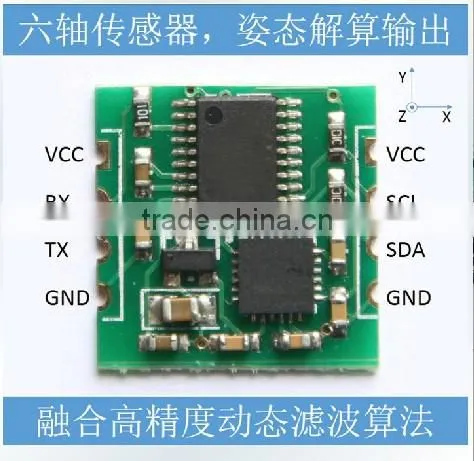

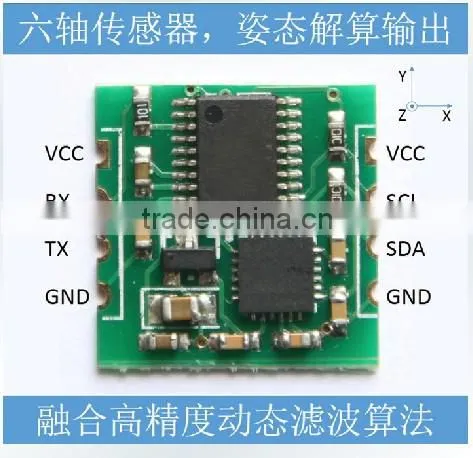

The si ais module using high precision accelerometer this meter, through the processor reads this measurement data and output through the serial port, eliminating the need for users to develop this comple I2C protocol, also carefully and PCB layout process ensures the receiving this is connected with the minimal interference with the measurement of the highest accuracy.

The module comes with a voltage stabiliZing circuit, which can be compatible with the 3.3V/5V embedded system.

Module retains the I2C MPU6050 interface to meet the needs of high-level users want to access the underlying measurement data.

The use of advanced digital filtering technology, can effectively reduce the measurement noise, improve the measurement accuracy.

Internal module is integrated with the attitude solver, with the dynamic Kalman filtering algorithm, can under the dynamic environment accurate output module of current attitude, attitude measurement accuracy is 0.01 degree, high stability performance even better than some of the professional inclinometer.

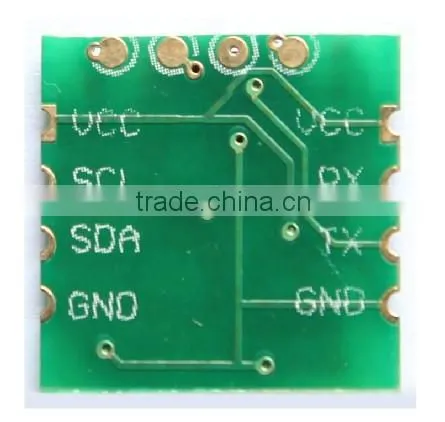

Using the stamp hole gold plating process, quality assurance, can be embedded in the user's PCB board.

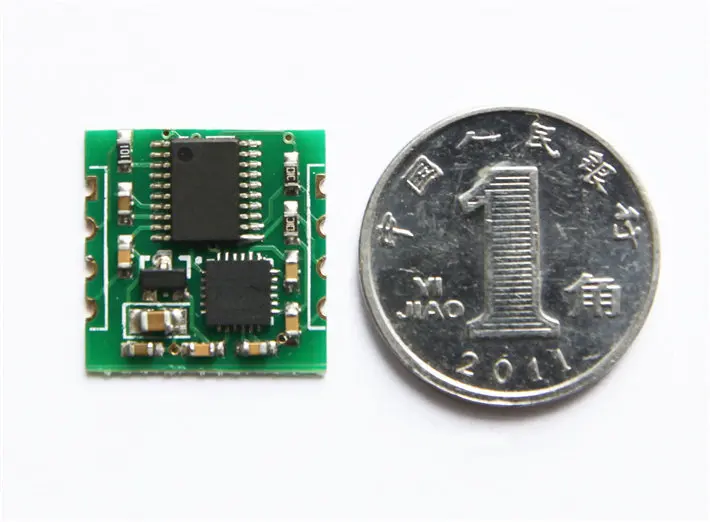

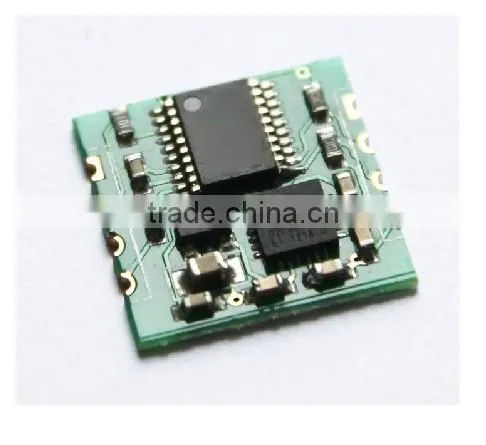

The volume is less than a 1 coin size, the thickness of the module 2mm, stamp hole design can be embedded into the user's circuit board.

Data download address:

/s/1tIqp1

Copy to the address bar to open

PC can not run the user please download and install framework4.0.Net:

/zh-cn/download/details.asp? Id=17718?

Module parameters:

1, voltage: 3V~6V

2, current: <10mA

3, volume: 15.24mm 2mm 15.24mm

4, pad spacing: up and down 100mil (Two54mm), about 600mil (15.24mm)

5, measurement dimension: acceleration: 3 dimensions, angular velocity: 3 dimension, attitude angle: 3 dimension

6, range: acceleration: + / - 2G, angular velocity: + 250 degrees /s.

7, resolution: acceleration: 6.1e-5g, angular velocity: 7.6e-3 degrees /s.

8, stability: acceleration: 0.001g, angular velocity of 0.02 degrees /s.

9, attitude measurement stability: 0.01 degrees.

10, the data output frequency 100Hz (115200 baud) /20Hz (baud rate 9600).

11, data interface: serial port.TTL levelI2C (direct connect MPU6050, no attitude output)

10, the baud rate is 115200kps/9600kps.

11, to provide eamples of single-chip code analysis.

Perfect host computer program:

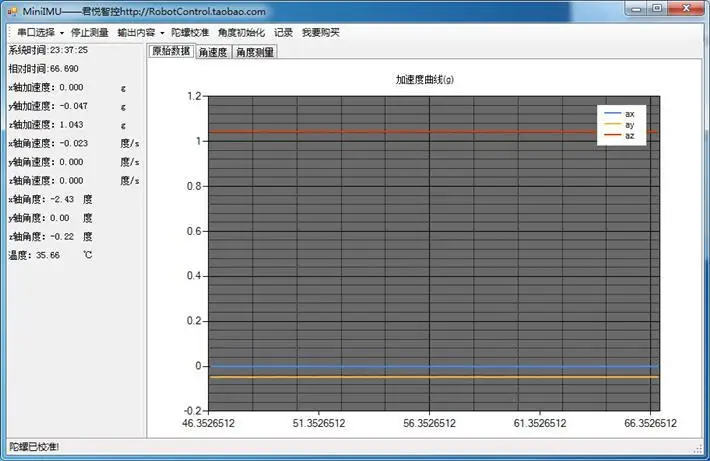

Acceleration measurement curve (static):

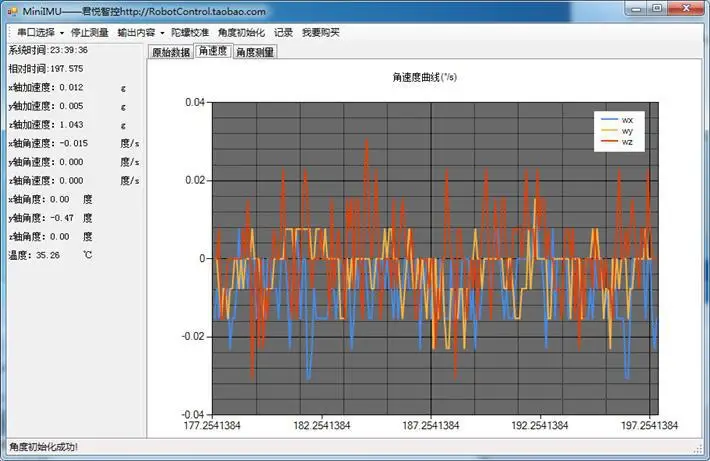

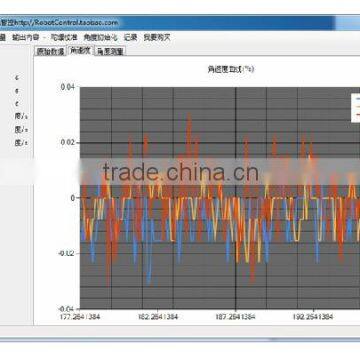

Angular velocity measurement curve (static)

Angular output after Calman filtering (static):

(Note: the rolling curve is blue, is located at the top of the image with a vertical ais of 0.2.

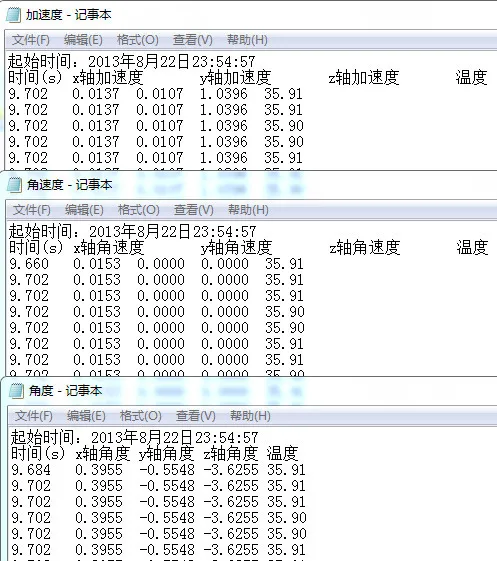

Recording measured data using host computer:

Communication protocol:

Level: TTL 3.3V/5V level.

Baud rate: 115200/9600, 1 stop bits, parity bit 0.

PC to module

Instruction content	function	remarks
052	Angle initialization	sendZShaft angle to zero
061	Using the serial port, disableI2C	Power down save, it is recommended to use the host computer to modify
062	Disable serial port, useI2CInterface	Power down save, it is recommended to use the host computer to modify
063	baud rate115200Frame rate.100Hz	Power down save, it is recommended to use the host computer to modify
064	baud rate9600Frame rate.20Hz	Power down save, it is recommended to use the host computer to modify

eplain

1. module power after the need to remain at rest, the internal module of MCU will in static module for automatic calibration (to eliminate gyroscope zero drift), after calibration Z ais angle will re initialized to 0, Z ais angle output is 0, visual for the completion of the automatic calibration of signal.

2.The factory default settings using the serial port, baud rate115200Frame rate.100Hz. Configuration can be configured through the PC software, because all of the configuration is power down save, so just configure once on the line.

Module to PC:

Module is sent to the host computer every frame data is divided into3A packet, respectively, for the acceleration of the package, angular velocity and angle of the package,3Sequential output of a packet. baud rate115200Every time10msoutput1Frame data, baud rate9600Every time50msOutput one frame data.

Acceleration output:

Data number	Data content	meaning
0	055	Baotou
1	051	Identify the package is the acceleration package.
2	AL	Ais acceleration low byte
3	AH	Ais acceleration high byte
4	AyL	yAis acceleration low byte
5	AyH	yAis acceleration high byte
6	AzL	zAis acceleration low byte
7	AzH	zAis acceleration high byte
8	TL	Low temperature byte
9	TH	Temperature high byte
10	Sum	Check and

Angular velocity output:

Data number	Data content	meaning
0	055	Baotou
1	052	Identify the package is angular speed package
2	WL	Low angle speed byte
3	WH	Ais acceleration high byte
4	WyL	yAis acceleration low byte
5	WyH	yAis acceleration high byte
6	WzL	zAis acceleration low byte
7	WzH	zAis acceleration high byte
8	TL	Low temperature byte
9	TH
