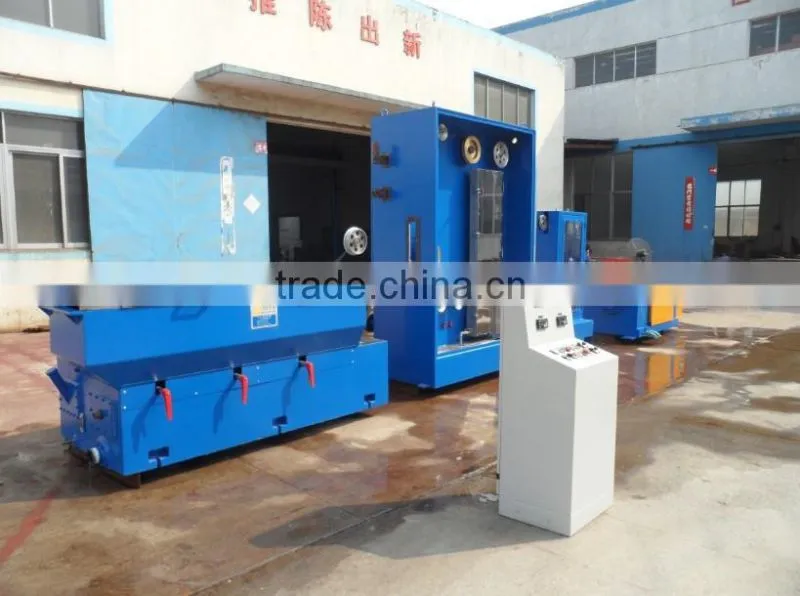

Help CenterMedium Cost Copper Wire Drawing Machine With Anneaelr
Related Products
-
Medium Price Copper Wire Drawing Machine With AnnealerUS$ 100 - 10,000MOQ: 1 Set -
17DST Low Price Middle Copper Wire Rod Drawing &Annealing Machine -continunousUS$ 1 - 3MOQ: 1 Set
-
Copper Rod Breakdown Machine With Drop Coiler-Low PriceUS$ 1 - 2MOQ: 1 Set
-
Machine for Copper Rod Breakdown and Annealing-low CostUS$ 1 - 2MOQ: 1 Set
-
Machine for Copper Wire Drawing Anf Online Annealing-best PriceUS$ 1 - 2MOQ: 1 Set
medium wire drawing machine with annealer/cable making machine/cable equipment/
Specification
inlet size:2.5mm-3.0mm
Outlet size:0.4mm-1.2mm
Speed:1500m/min
Advantages:
1.high speed
2.high quality
3.high productivity
Main technical parameter
Usage |
Bare copper wire drawing |
Inlet diameter |
2.5mm-3.0mm |
Outlet diameter |
0.4mm-1.2mm |
Max. speed |
1500m/min |
Power source |
Three phase AC 3×380 (±10%) |
Annealing voltage |
0-50V(DC) |
Annealing current |
0-1200 A(DC) |
Annealing power |
60KVA |
Steam generator power |
9KW |
Capacity of steam |
12 kg/h |
Main motor |
AC 3 Phase 55KW |
Take up motor |
AC 3Phase 11kw |
Spool size |
diameter500mm-630mm/Max |
Capstans |
Ceramic coated |
Capstan lubrication |
full immersion |
Brake |
pneumatic brake |
Air pressure |
4-6kg/cm2 |
Machine dimension(L*W*H) |
13300mm*3500mm*3400mm |
Machine weight |
6500kg |
