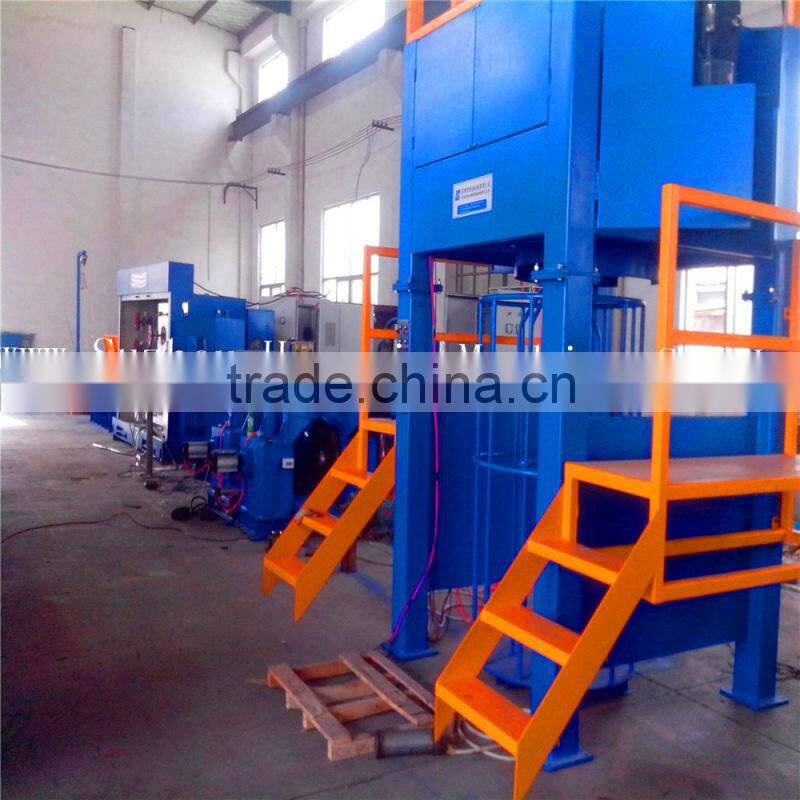

Help CenterMachine for Copper Rod Breakdown and Annealing-low Cost
Related Products
-
Machine for Copper Wire Drawing Anf Online Annealing-best PriceUS$ 1 - 2MOQ: 1 Set -
High Speed Medium Wire Drawing Usage Annealing Machine-17DST-costUS$ 100 - 10,000MOQ: 1 Set
-
Intermediate Copper Wire Drawing Machine With Annealer-CostUS$ 1 - 3MOQ: 1 Set
-
Cost for Medium Wire Drawing Machine With AnnealerUS$ 1 - 3MOQ: 1 Set
-
Machine for Copper Rod Breakdown and AnnealingUS$ 1 - 2MOQ: 1 Set
Specification
copper wire drawing machine with annealer
1.inlet size: 3.0-3.5mm
2.outlet size: 0.8-2.8mm
3.speed: 1000mpm
Main technical parameter
Machine type |
HXE-9DT |
HXE-13DT |
Control system |
Traditional analog type/digital control with production record |
|
Inlet diameter |
3.0-3.5mm |
3.0-3.5mm |
Outlet diameter |
1.0-2.8mm |
0.8-2.8mm |
Max line speed |
900 |
1000 |
Die numbers |
9 |
13 |
Slip ratio of machine |
19.6%+12.5% |
|
Frame |
Welded by steel plate |
|
Capstan |
Tungsten |
|
Max capstan diameter |
280mm |
|
Fix speed capstan diameter |
280mm |
|
Spooler bobbin size |
400-630mm |
|
Bobbin loading &unloading type |
Double end thimble |
|
Max loading capacity |
500KG/MAX |
|
Annealing method |
DC three section annealing |
|
Main motor |
AC45KW |
|
Spool motor |
AC11KWx2 |
|
Max annealing current |
DC3000A |
|
Max annealing voltage |
DC60v |
|
Annealing power |
180KVA |
|
Steam quantity |
18kg/h |
|
Cooling water capacity |
650L/min |
|
Compressed air capacity |
0.4-0.6Mpa,50L/min |
|
Power source |
380V 50/60HZ |
|
Dimension |
13300x3500x3400 |
|
Weight |
8500KG |
|
Certification
Packaging &Delivery
Exhibition
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
