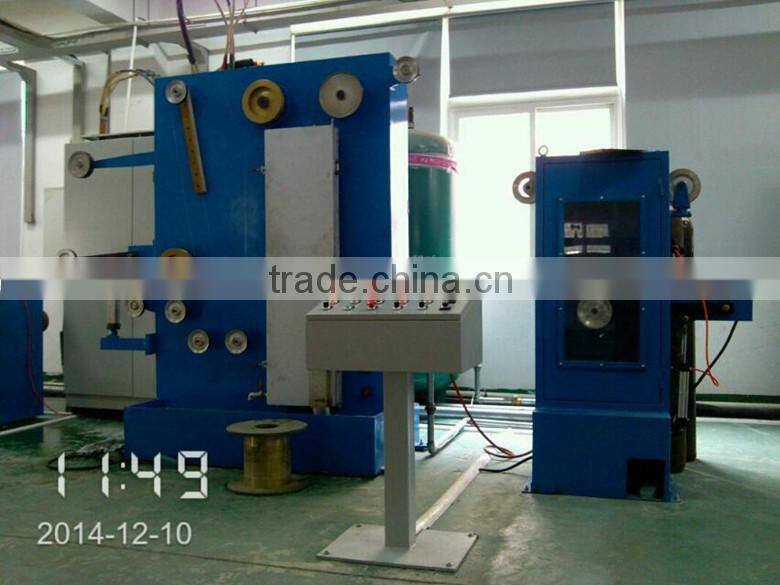

17DST Low Price Middle Copper Wire Rod Drawing &Annealing Machine -continunous

US$ 1 - 3 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HXE

Model Number:

17DST

Contact Supplier Request Quote Chat Now

Suzhou Hengxie Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HXE

Model Number 17DST

Usage Drawing

Specification

1. inlet diameter: 2.6mm-3.5mm

2. outlet diameter: 0.4mm-1.6mm

Main technical parameter

Machine type	hXE-17DT	HXE-17DST	HXE-17MDST
Control system	Traditional analog type /digital control with production record
Inlet diameter	2.6-3.0mm	2.6-3.5mm	2.6-3.2mm
Outlet diameter	0.4-1.2mm	0.4-1.6mm	0.4-1.2mm
Max line speed	1200	2000	1500
Die numbers	17	17	17
Slip ratio of machine	18%+12.5%	20%+15%	15%+10%
Frame	Cast iron		Welded by steel plate
Capstan	Tungsten
Max capstan diameter	260mm	250mm	252mm
Spooler bobbin size	260mm	250mm	252mm
Bobbin loading &unloading type	Double end thimble
Max loading capacity	500KG/Max
Transmission type	Chain		Precision ground gears
Traversing unit	90W strap speed down motor type
Brake	Magnetic brake/disc brake
Revise system	PID synchronous control spooler
Detecting device	Weight balance by swing arm
Tension control	Air pressure adjust
Main motor	37KW	55KW	37KW
Spooler motor	11KW	11KW	11KW
Annealing method	DC three section annealing
Max annealing current	DC1200A	DC2000A	DC15ooA
Max annealing voltage	DC50V	DC50V	DC50V
Annealing power	60KVA	100KVA	75KVrA
Steam quantity	12kg/h	12kg/h	12kg/h
Cooling water capacity	300L/min	400L/min	300L/min
Capacity of compressed air	0.4-0.6Mpa,30L.min	0.4-0.6Mp,50L/min	0.4-0.6Mpa,30L/min
Power source	380V 50/60HZ
Machine dimension	13300x3500x3400
Machine weight	6500KG	7500KG	6500KG

Ceritification

Packaging&Delivery

Exhibition

Brand of accessories

Inverter : Invoance

Motor :Wannan

Precision resistance: WDD military enterprise

Bearing :NSK

Low voltage equipment: France Schneider

Warranty

6 month for electrical part

12 month for mechanical part

After-sell service

Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:

(1) Correct operating mode

(2) Correct maintenance way

(3) Remove simple problem
