Specifications
1.Good quality;2.Easy install;
3.Very popular;
Linyi Yulong Building Materials Co.,LTD
1.Our main products:
(1)Gypsum Board;
(2)PVC Gypsum Ceiling Tiles;
(3)Galvanized Ceiling T-bars;
(4)Steel keel channel;
Productions:
Gypsum Board:
1.
(1)Length:from 1800mm to 3600mm;
(2)Width:1200mm and 1220mm;
(3)Thickness:from 7mm to 15mm;
(4)Common Sizes: 1200*2400mm,1200*2700mm,1200*3000mm,1200*3600mm,1220*1830mm,1220*2440mm and so on.
2.USAGE:
(1)For Wall Partition:(Matched with steel keel channel )
(2)For Ceiling System:(Matched with steel keel channel)
PVC Gypsum Ceiling Tiles
1. Detailed Description:
1) Material: paper-faced gypsum board with PVC facing + aluminum foil backing
2) Thickness:7mm, 7.5mm, 8.0mm, 8.5mm,9.0mm, 9.5mm,10mm,12.0mm,
3) Sizes:
595mmX595mm,600mmX600mm(2'X2'),603mmX603mm,605mm*605mm,595mmX1195mm,600mmX1200mm(2'X4'),603mmX1210mm
4) Size tolerance: Length <+/-1.0mm, width < +/-1.0mm, thickness <+/-0.5mm
5) Weight:
7.5mm=5.7kg/sqm, 8.0mm=5.9kg/sqm, 8.5mm=6.2kg/sqm, 9mm=6.8kg/sqm,
9.5mm=7.1kg/sqm, 12mm=9.2kg/sqm,12.5mm=9.5kg/sqm
6) Strength: >100N
7) Characters: Non-flammable B1, in accordance with Chinese standard GB8624-1997
8) Installation: Match with ceiling T-bar
9) Packing: Export carton(6pcs,8pcs or 10 pcs per carton with film)
2.USAGE:

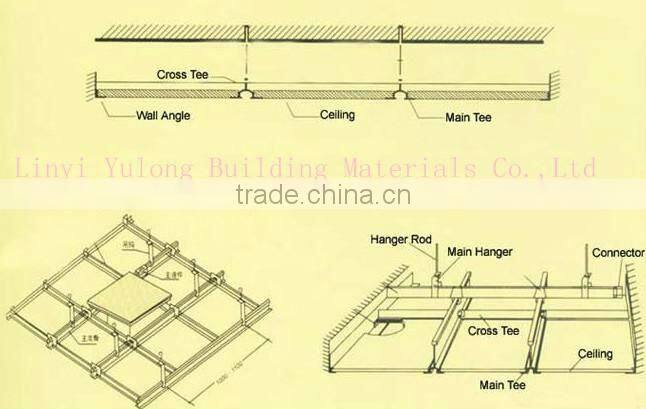

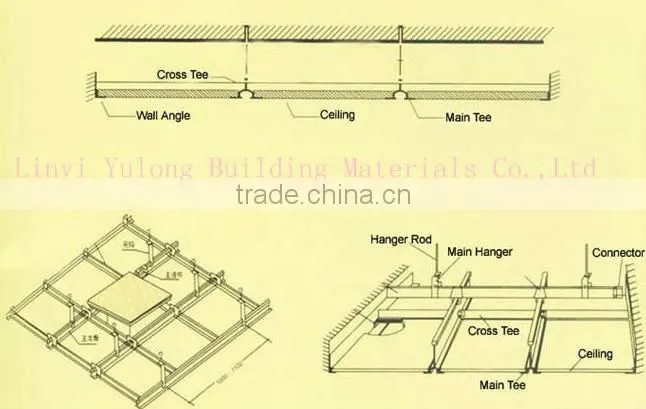

For suspended ceiling system:(matched with galvanized ceiling t-bars)
Construction Ratio:
Main tee (32x24x3600/3660x0.3) |
0.225pcs/sqm |
Cross tee(26x24x1200/1220x0.3) |
1.35pcs/sqm |
Cross tee(26x24x600/610x0.3) |
1.35pcs/sqm |
L-angle(22x22x3000x0.4) |
0.2pcs/sqm |
Spring Clip |
2pcs/sqm |
Hanging Bolt |
4pcs/sqm |
Expansion Screw |
2pcs/sqm |
Galvanized Ceiling T-bars
38 Plain pan line T Bar | ||
Name |
Specification |
Packaging of per ctn |
Main Tee |
24*38*3600*0.3mm |
27 |
Cross Tee |
24*26*1200*0.3mm |
75 |
Small Cross Tee |
24*26*600*0.3mm |
75 |
Wall Angle |
22*22*3000*0.4mm |
50 |
32 Plain pan line T Bar | ||
Name |
Specification |
Packaging of per ctn |
Main Tee |
24*32*3600*0.3mm |
27 |
Cross Tee |
24*26*1200*0.3mm |
75 |
Small Cross Tee |
24*26*600*0.3mm |
75 |
Wall Angle |
22*22*3000*0.4mm |
50 |
38 Three dimensional groove T Bar | ||
Name |
Specification |
Packaging of per ctn |
Main Tee |
16.5*38*3600*0.3mm |
27 |
Cross Tee |
16.5*38*1200*0.3mm |
75 |
Small Cross Tee |
16.5*38*600*0.3mm |
75 |
Wall Angle |
22*22*3000*0.4mm |
50 |
32 Three dimensional groove T Bar | ||
Name |
Specification |
Packaging of per ctn |
Main Tee |
16.5*32*3600*0.3mm |
27 |
Cross Tee |
16.5*32*1200*0.3mm |
75 |
Small Cross Tee |
16.5*32*600*0.3mm |
75 |
Wall Angle |
22*22*3000*0.4mm |
50 |
32 Planar groove T Bar | ||
Name |
Specification |
Packaging of per ctn |
Main Tee |
24*32*3600*0.3mm |
27 |
Cross Tee |
24*32*1200*0.3mm |
75 |
Small Cross Tee |
24*32*600*0.3mm |
75 |
Wall Angle |
22*22*3000*0.4mm |
50 |

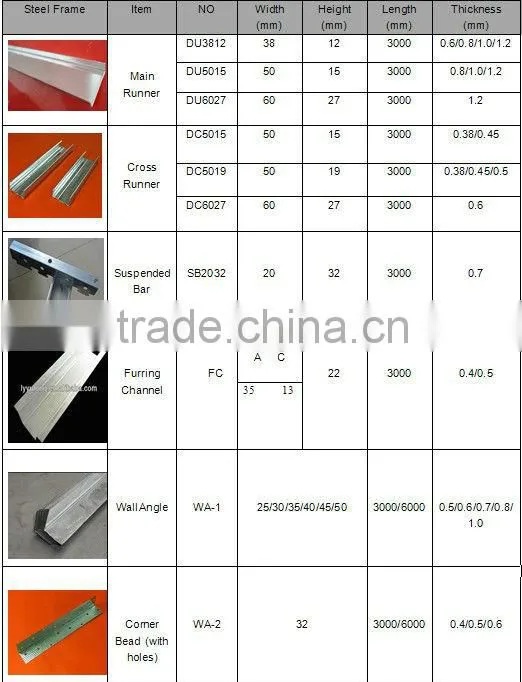

Steel keel channel

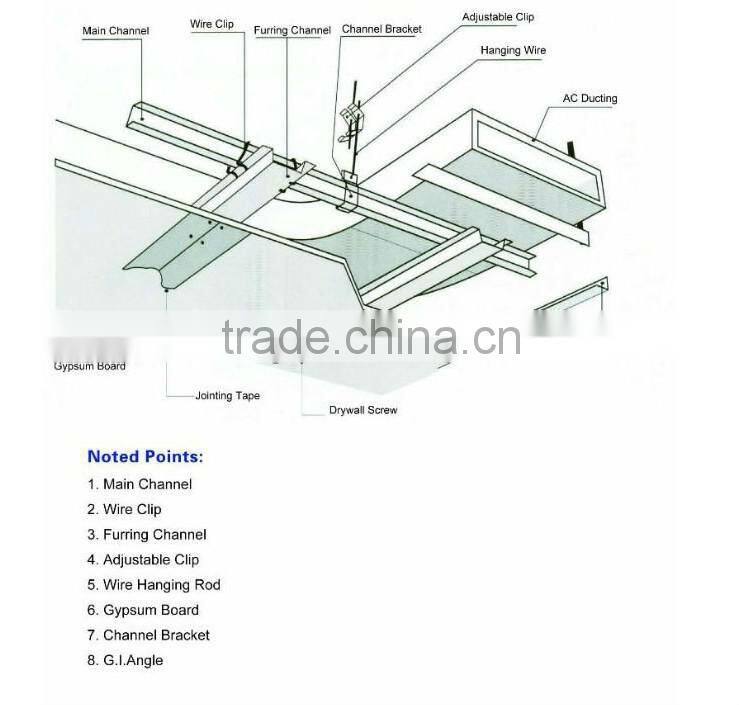

1.Regular specification for ceiling system:

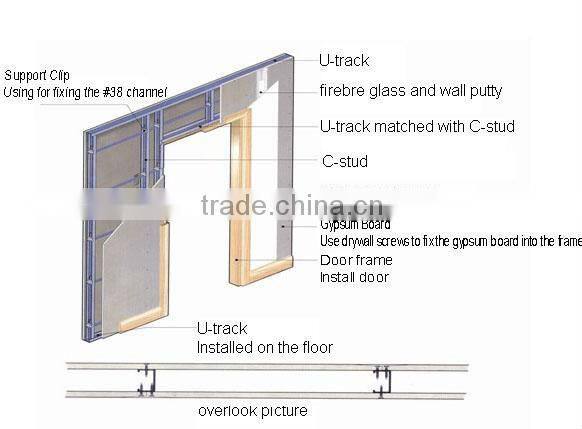

2.Regular specification for wall partition system:
