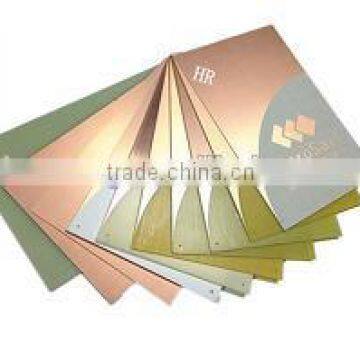

Double side copper clad laminate sheet for circuit board

FOB Price

Negotiable / Sheet

250 Sheets(Min.Order)

Supply Ability 500 Sheet / Sheets per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	Hero Sail
Model Number	FR-4UV	Type	Insulation Sheet
Material	Other, Fiberglass, Epoxy glass

Product Description

Specifications

1.Double side copper clad laminate sheet for circuit board 2.UL,SGS,CQC,VDE,TS16949,RoHS,MSDS
3.Competitive price

Double side copper clad laminate sheet

Application:

Widely used in Computer,communication device,measuring instrument,video,TV,player,automobile,aviatation,etc.

I.Standard dimension

THICKNESS			COPPER FOIL	SIZE		THICKNESS TOLERANCE
Inch	mm		oz(μm)	Inch	mm
0.002	0.05		1/3(12) 1/2(17)	36×48 &37×51	915×1220 &940×1300	IPC-4101C C/M
To			1.0(35) 2.0(70)	40×48 &41×51	1020×1220 &1040×1300
0.125		3.2	3.0(103)	42×48 &42.5×51	1070×1220 &1080×1300

Notes:Specical dimension according to customer's requirements.

II.Performance List for HRFR-4UV

HRFR-4 Laminate	Unit	specification		Typical Value	Test Method
HRFR-4 Laminate	Metric	<0.5mm	≥0.5mm	1.6mm CCL	IPC-TM-650
1. Peel Strength,as received	N/mm			1.80 (1OZ )	---
A. 17micron copper		≥0.79	≥1.05
B. 35micron copper		≥1.05	≥1.40
C. 70micron copper		≥1.40	≥1.93
D. 105,140,175micron copper and above		≥1.58	≥2.10
2. Surface resistivity	MΩ			--- 5.4×107 5.6×106
A. Constant temp.&moisture C-96/35/90		≥104	---
B. After moisture resistance		---	≥104
C. Under high temperature		≥103	≥103
3. Volume resistivity	MΩ.cm			--- 5.4×108 5.6×106
A. Constant temp.&moisture C-96/35/90		≥106	---
B. After moisture resistance		---	≥104
C. Under high temperature		≥103	≥103
4. Moisture absorption	%	---	≤0.80	0.15
5. Dielectric breakdown	KV	---	40	50
6. Permittivity at 1MHZ	--	<5.4	<5.4	4.6
7. Tg(DSC)	°C	---	≥130	138
8. Loss tangent at 1MHZ	--	<0.035	<0.035	0.015
9. Pressure Vessel Method	260°C/20S	pass	pass	pass
9. Pressure Vessel Method	260°C/20S	pass	pass	pass
10. Thermal stress	288°C/20S
Non etching		pass	pass	pass
Etch		pass	pass	pass
11. Flammability	Rating	94V-0	94V-0	94V-0
12. Dimensional stability	ppm	---	±300	±180

III. Details:

FAQ

Q: 1. Can I have free samples?

A: Yes, we can provide free sample only for small size after you accept our price and all the information confirmed by you.

Q: 2. What is the manufacturing time?

A:Sample needs 1-3 days, mass production needs 10-15 days, It depends on quantity.

Q: 3. What is your MOQ?

A: Our MOQ is 500 sheets for copper clad laminate,and 2 rolls of prepreg

Q: 4. Can you accept mixed batch of different products?

A: Yes, we are support different product mix wholesale.

Q: 5. How do you ship the goods ?

A: For huge quantity,we can deliver it by FCL,for small quantity,we can deliver by LCL,samples willdeliver by express.

Any other question,pls feel free to leave a message.We are looking for your inquiry!
