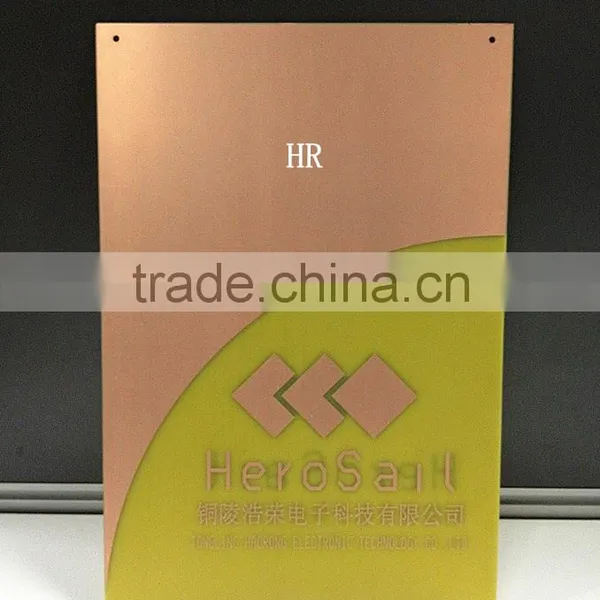

FR-4 Tg170 Copper Clad Lamiante Sheet
Negotiable
MOQ: 300 Sheets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Hero Sail
Model Number:
HRH-4170
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FR-4 Mid tg Copper Clad Laminate Sheet for PCBNegotiableMOQ: 300 Sheets -
FR-4 Double Side Copper Clad Laminate Sheet for Circuit Board Made in ChinaNegotiableMOQ: 1 Sheet
-
FR-4 Epoxy Glass Copper Clad Laminate SheetNegotiableMOQ: 100 Sheets
-
FR-4 Copper Clad Laminate Sheet for Circuit Board Made in ChinaNegotiableMOQ: 1 Sheet
-
FR-4UV Fiberglass Copper Clad Laminate SheetNegotiableMOQ: 100 Sheets
Place of Origin
Anhui, China
Brand Name
Hero Sail
Model Number
HRH-4170
Base Material
epoxy resin,fiberglass
Copper Thickness
1/3,1/2,1.0,2.0,3.0 oz
Board Thickness
0.05-3.2mm
Surface Finishing
copper clad
I.Application
1.High multi-layer PCB which need excellent solder resistance and Tg170°C
2.Computer
3.Communication device
4.Measuring instrument for industrial controlling
5.Router,etc
II.Standard dimension:
THICKNESS |
COPPER FOIL |
SIZE |
THICKNESS TOLERANCE |
||
Inch |
mm |
oz(μm) |
Inch |
mm |
|
0.002 |
0.05 |
1/3(12) 1/2(17) |
36×48 &37×51 |
915×1220 &940×1300 |
IPC4101C C/M |
to |
1.0(35) 2.0(70) |
40×48 &41×51 |
1020×1220 &1040×1300 |
||
0.125 |
3.2 |
3.0(103) |
42×48 &42.5×51 |
1070×1220 &1080×1300 |
|

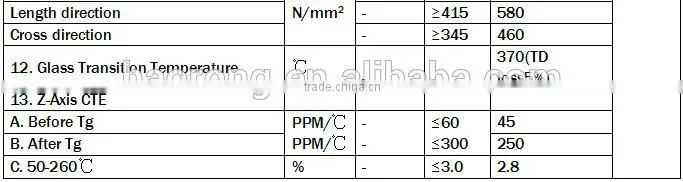

III.Specifications
