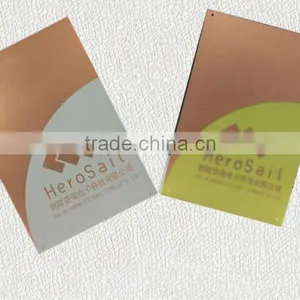

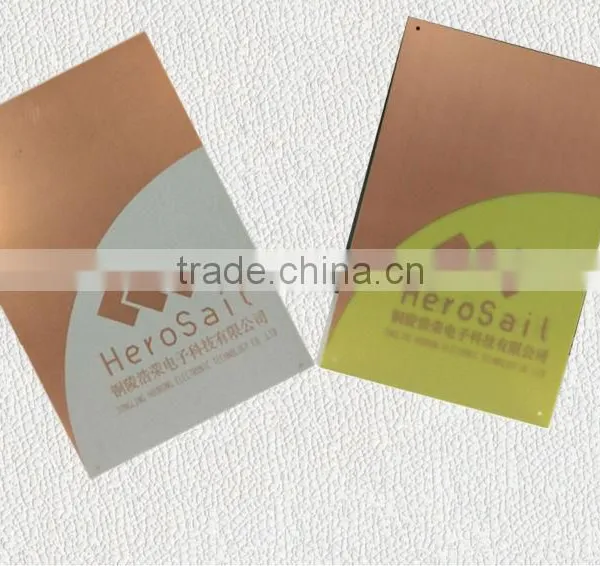

FR-4 Laminated Sheet

Name: FR-4 Laminated Sheet
Brand: Hero Sail
SKU: 104377731

Negotiable MOQ: 1 Sheet (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Hero Sail

Model Number:

FR-4UV

Tongling HaoRong Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Hero Sail

Model Number FR-4UV

Type Insulation Sheet

Material Fiberglass

Application High Temperature

Specifications

1.Excellent tracking resistance
2.No bubble,no crack.
3.Excellent mechanical process ability.

Application:

Widely used in PDP,LCD,power baseboard,TV,refrigerator,washing machie.etc.

Standard dimension

Notes:Special dimension according to cutomer's requirements.

Performance List for HRFR-4UV

HR-4600 Laminate	Unit	specification		Typical Value	Test Method
HR-4600 Laminate	Metric	<0.5mm	≥0.5mm	1.6mm CCL	IPC-TM-650
1. Peel Strength,as received	N/mm			1.60 (1OZ )	---
A. 17micron copper		≥0.79	≥1.05
B. 35micron copper		≥1.05	≥1.4
C. 70micron copper		≥1.40	≥1.93
D.105,140,175micron copper and above		≥1.58	≥2.10
2. Surface resistivity	MΩ
A. Constant temp.& moisture C-96/35/90		≥104	---	---
B. After moisture resistance		---	≥104	4.9×108
C. Under high temperature		≥103	≥103	4.7×108
3. Volume resistivity	MΩ.cm
A. Constant temp.& moisture C-96/35/90		≥104	---	---
B. After moisture resistance		---	≥104	5.8×107
C. Under high temperature		≥103	≥103	5.5×106
4. Moisture absorption	%	---	≤0.80	0.12
5. Dielectric breakdown	KV	---	40	45
6. Permittivity at 1MHZ	--	<5.4	<5.4	4.7
7. Glass temperature Tg(DSC)	°C	---	≥125	130
8. Loss tangent at 1MHZ	--	<0.035	<0.035	0.020
9. Thermal stress	288°C/20S
Non-etching		Appearance pass	Appearance pass	pass
Etch		Appearance pass	Appearance pass	pass
10. Flammability	Rating	94V-0	94V-0	94V-0
11. CTI	V	---	≥500	600
12. Dimensional stability	ppm	---	±300	±180
13. Flexural strength of laminate	N/mm2
Length direction		---	≥415	550
Cross direction		---	≥345	445
