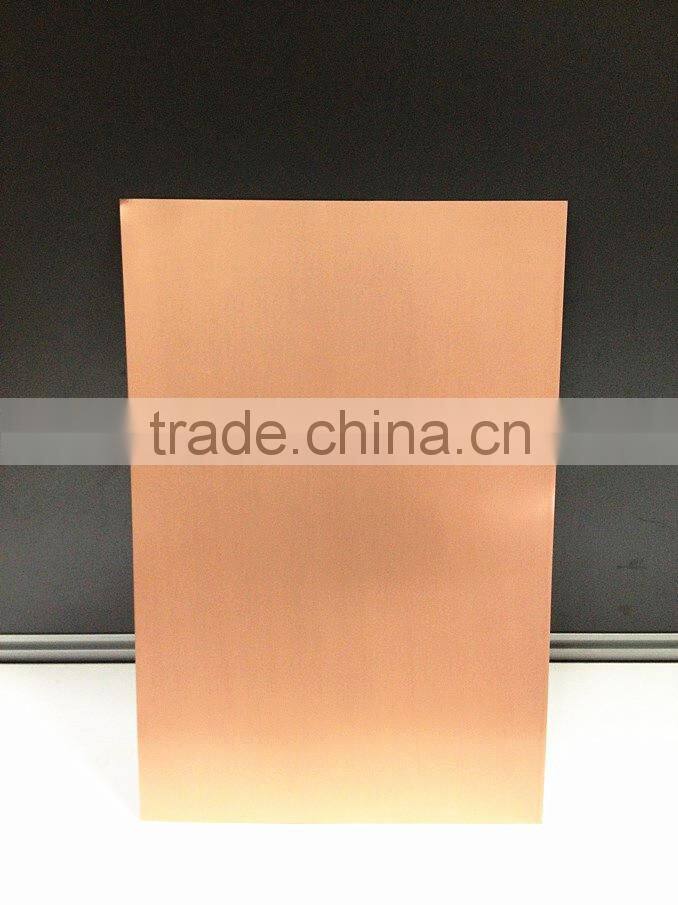

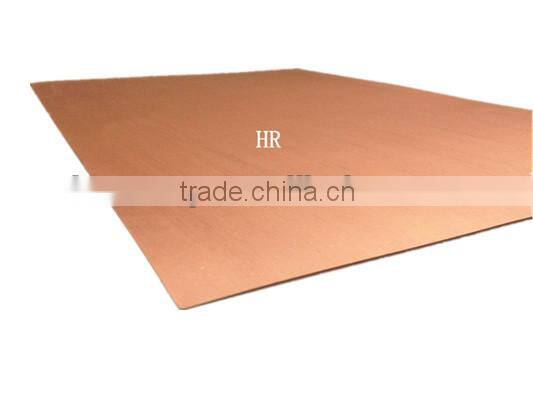

FR-4UV Copper Cladding Laminate Sheet for PCB

Name: FR-4UV Copper Cladding Laminate Sheet for PCB
Brand: Hero Sail
SKU: 104377753
Availability: InStock

Negotiable MOQ: 1 Sheet (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Hero Sail

Model Number:

HRFR-4150LD

Tongling HaoRong Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Hero Sail

Model Number HRFR-4150LD

Type Insulation Sheet

Material Fiberglass

Application High Temperature

Specifications

1.FR-4UV copper clad laminate sheet
2.Apply to fead free procesing
3.Certificate:UL,VDE,SGS,TS1

FR-4UV copper clad laminate sheet

Application:

Widely used in high speed computer,communication device,radar,electronic components of microwave strip line,etc.

Standard dimension

Note:Special requirements should be discussed by sellers and buyers

Specifications:

HR-4150LD Laminate	Unit	specification		Typical Value	Test Method
HR-4150LD Laminate	Metric	<0.5mm	≥0.5mm	1.6mm CCL	IPC-TM-650
1. Peel Strength,as received.	N/mm			1.62 (1OZ )	---
A. 17micron copper		≥0.70	≥0.7
B. 35micron copper		≥0.79	≥1.05
C. 70micron copper		≥0.88	≥1.40
D. 105,140,175micron copper and above		≥0.96	≥1.58
2. Surface resistivity	MΩ
A. Constant temp.& moisture C-96/35/90		≥106	---	---
B. After moisture resistance		---	≥104	5.6×107
C. After high temperature		≥103	≥103	4.7×106
3. Volume resistivity	MΩ.cm
A. Constant temp.&moisture C-96/35/90		≥106	---	---
B. After moisture resistance		---	≥107	4.2×108
C. Under high temperature		≥103	≥103	3.5×106
4. Moisture absorption	%	---	≤0.5	0.18
5. Dielectric breakdown	KV	---	40	53
6. Permittivity at 1MHZ	--	<5.4	<5.4	3.3
7. Tg(DSC)	°C	---	---	256
8. Loss tangent at 1MHZ	--	<0.035	<0.035	0.003
9. Thermal stress	288°C/20S
Non-etching		pass	pass	110s pass
Etch		pass	pass	110s pass
10. Flammability	Rating	94V-0	94V-0	94V-0
11. Flexural strength of laminate Length direction	N/mm2
11. Flexural strength of laminate Length direction		---	≥415	520
Cross direction		---	≥345	410
12. Glass Transition Temperature	°C	---	≥340	350(TDloss5%)
13. Heat resistance(without copper foil
Thermal Resistance(Copper removed)
A,T-260	Min	---	≥30	60
B,T-288	Min	---	≥5	5
