Home > Electrical & Electronics > Circuit Board > Double-Sided PCB > Cem-1 Halogen-free/HF Copper Laminate Sheet

Cem-1 Halogen-free/HF Copper Laminate Sheet

Name: Cem-1 Halogen-free/HF Copper Laminate Sheet
Brand: HaoRong
SKU: 104376745
Availability: InStock

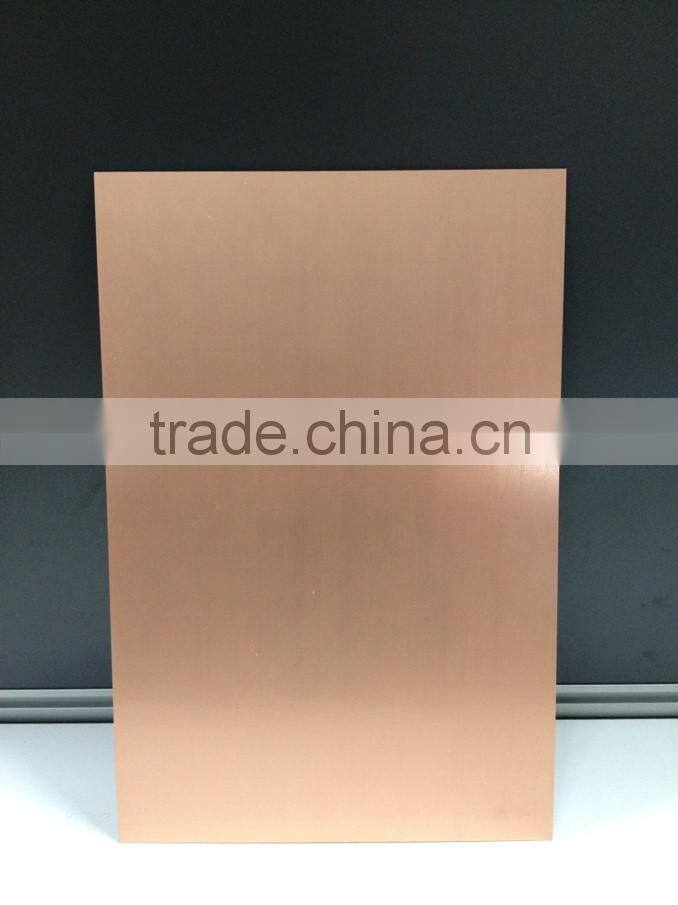

Cem-1 Halogen-free/HF Copper Laminate Sheet thumbnail-1

Cem-1 Halogen-free/HF Copper Laminate Sheet photo-1

Negotiable MOQ: 1 Sheet (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

HaoRong

Model Number:

HR-1130

Contact Supplier Request Quote Chat Now

Tongling HaoRong Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name HaoRong

Model Number HR-1130

Base Material Woven&nowowen glass,resin

Copper Thickness H oz/1oz/2oz

Board Thickness 0.8-1.6mm

Specifications

1.IPC-4101C standard
2.Excellent punching
3.Good thermal reliability and moisture resistance

Product Description

Standard dimension

Base Color

Thickness

Copper Clad

Regular Size

Thickness

white

yellow

0.8~1.6mm

H oz(18μm)

1oz (35μm)

2oz (70μm)

915×1220mm(36″×48″)1020×1220mm(40″×48″)

1070×1220mm(42″×48″)

IPC4101C C/M

Note: Other sheet size and thickness could be available depend on

Main specifications:

HR-1130 Laminate	Unit	specification		Typical Value	Test Method
HR-1130 Laminate	Metric	<0.5mm	≥0.5mm	1.6mm CCL	IPC-TM-650
1. Peel Strength,as received.	N/mm			1.8 (1OZ )	---
A. 17micron copper		≥1.05	≥1.05
B. 35micron copper		≥1.4	≥1.4
C. 70micron copper
D. 105,140,175micron copper and above
2. Surface resistivity	MΩ
A. Constant temp.&moisture C-96/35/90		≥103	---	---
B. After moisture resistance		---	≥103	2.7×106
C. Under high temperature		≥103	≥103	---
3. Volume resistivity	MΩ.cm
A. Constant temp.&moisture C-96/35/90		≥103	---	---
B. After moisture resistance		---	≥103	2.9×106
C. Under high temperature		≥103	≥103	---
4. Moisture absorption	%	---	≤0.80	0.11
5. Dielectric breakdown	KV	---	40	45
6. Permittivity at 1MHZ	--	<5.4	<5.4	4.6
7. Tg(DSC)	°C	---	---	110
8. Loss tangent at 1MHZ	--	<0.035	<0.035	0.026
9. Thermal stress	260°C/10S
Non-etching		pass	pass	pass
Etch		pass	pass	pass
10. Flammability	Rating	94V-0	94V-0	94V-0
11. Flexural strength of laminate	N/mm2
Length direction		---	≥242	410
Cross direction		---	≥172	280
