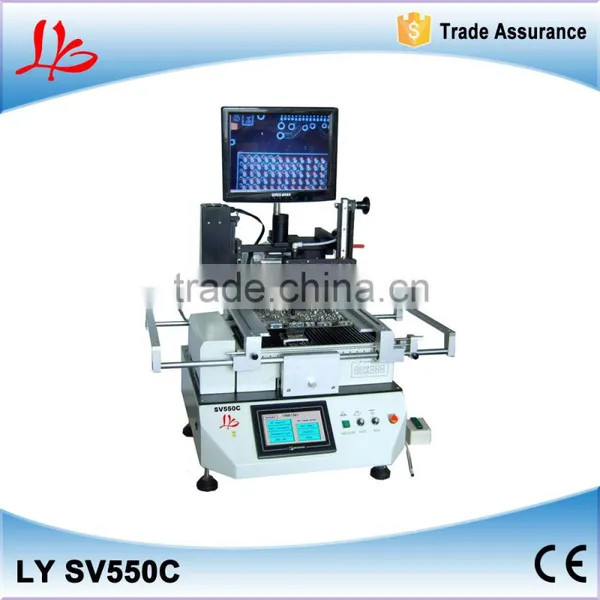

LY SV550C High-tech bga soldering equipment with automatic optical alignment system
Performance Parameter:
1. The station is small and light and easy to repair by the modual design, it is unneccessary to connect external pressed air and working volatge is 220V.
2. This station is with powerful fuction, which can dismantle, solder and align, mount automaticlly.
3. It is intelligent and easy to operate, controlling by PLC.

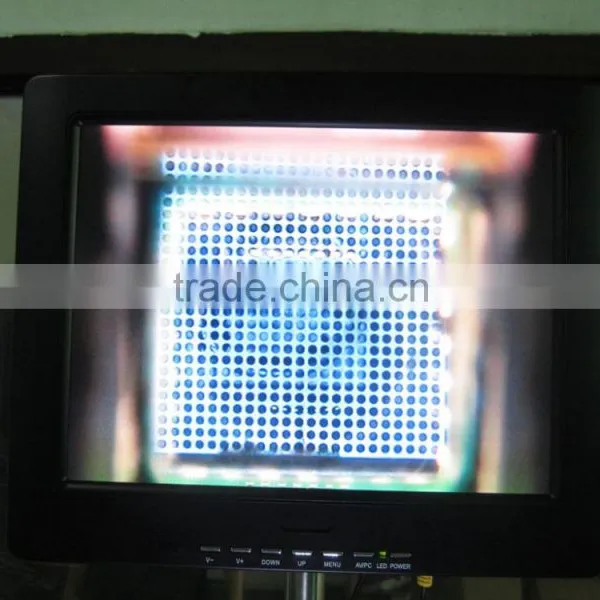

4. The optical alignment system apply special prism and high-accuracy CCD system, thus the user can observe the two images(BGA(CSP) chip bottom tin soldering and BGA(CSP) soldering pad on the PCB) overlapping. The chip can be accurately mounted by the fine adjustment along X and Y axis and the angel adjustment.
5. It has three heating areas, which is good for lead free reworking.
6. Wth a large bottom heating area of 300X400mm and hot net.
7. Six temperature segments, which can totally simulate the result of soldering oven.
8. Seperated 5 points structure, which can prevent the bend of PCB board. It is suitable for laptop and LCD TV repair.
9. After heating, using high current constant fan to cool PCB in case of being out of shape and to keep the good effect of soldering..
10. It is with audio prompt when dismantling and soldering finishes, and the vacuum suction pen can suck the BGA, which is convenient, reliable and durable.
| MODEL | SV550C |
| Soldering Type | leaded / Lead free |
| SMD | μBGA,BGA,CSP,QFP etc. |
| PCB Thickness | 0.5~4mm |
| PCB Size | MAX 350mmW*350mmL |
| Heating/Consumption(Upper) | Hot air 800W |
| Heating/Consumption(Bottom) | IR/3600W + Hot flow/800W |
| Heating steps | 6steps |
| PCB adjustable distance for Table(X or Y) | X:±10mm(fine adjustment) Y:40mm±5mm( fine adjustment ) |
| Adjustable angel for Vacuum | ±15° |
| Positionging PCB | Shape or Tongs |
| Setup Accuracy | ±0.025MM |
| Control | PC Base Windows XP |
| Max Consumption | 5.3KW |
| Power | 220V OR 380V |
| Sight Vision System | CCD Camera |
| Focus | Auto |
| Magnification | 0~20X |
| Image Dimension | LED 12 inch |
| Machine Dimension | 550mmL X 630mmW X 700mmH |
| Mahcine Weight | 64Kg |
