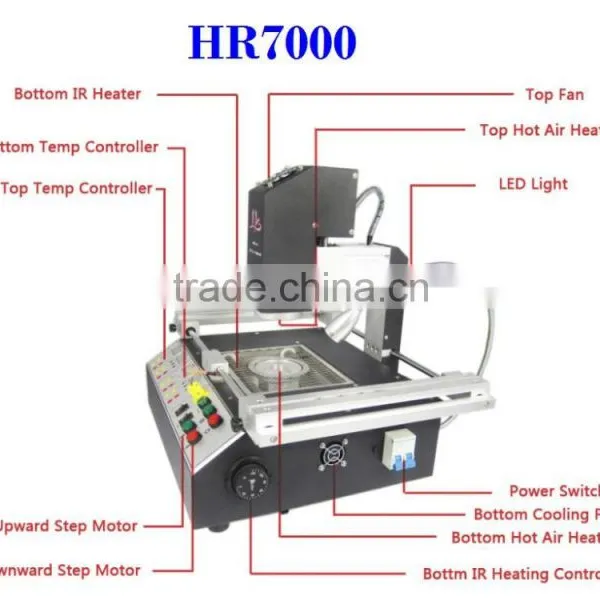

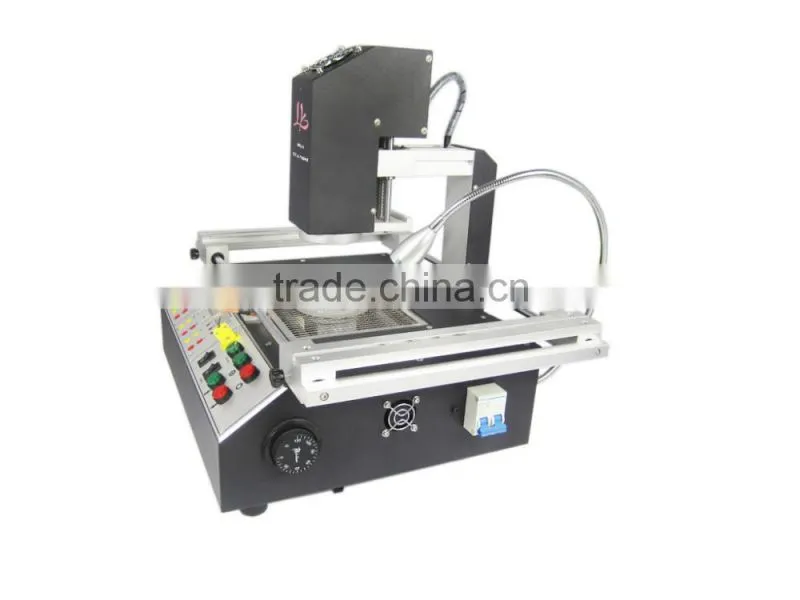

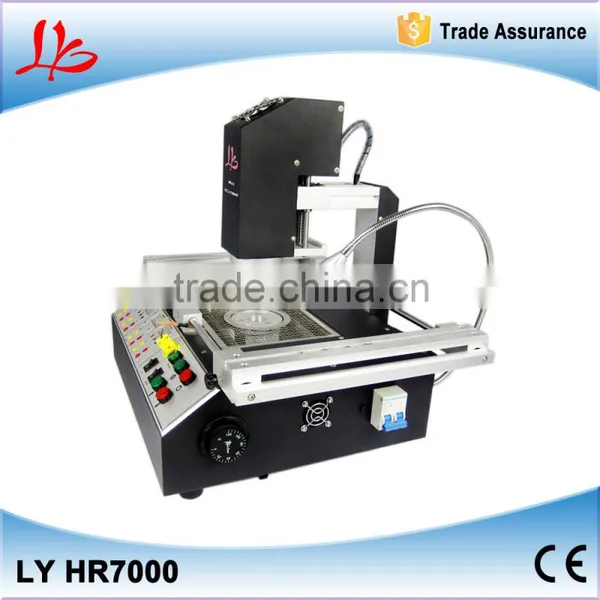

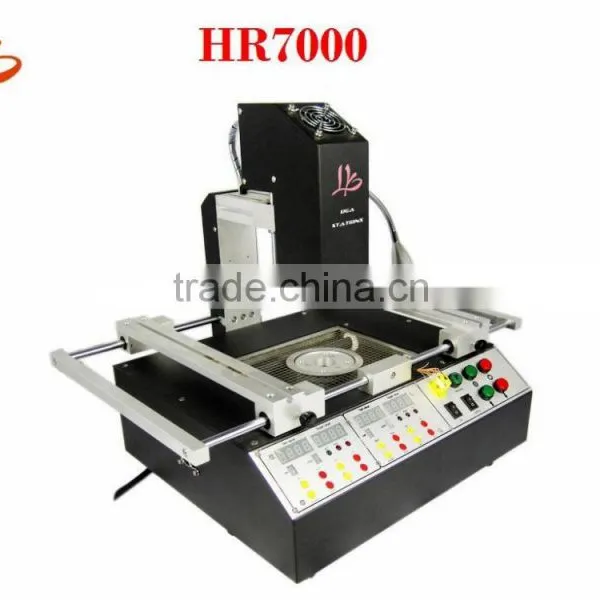

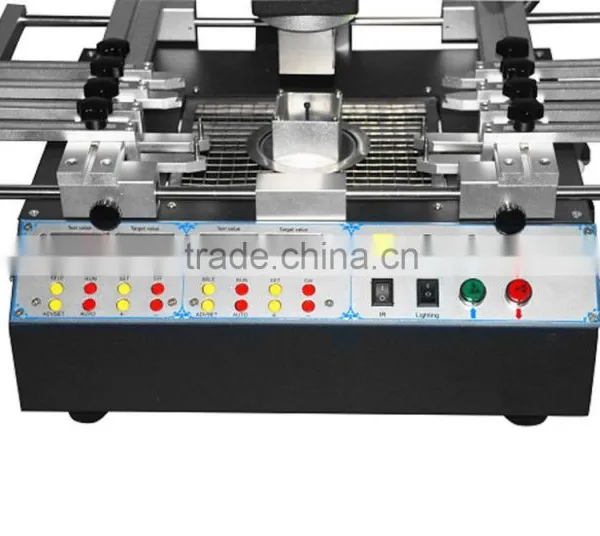

LY HR7000 3 temperature heating zones hot air bga equipment for motherboard
Introduction
HR7000 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
HR7000 is Preheat independent infrared ceramic three-zone temperature control rework station, easy to lead-free rework;
Technical Parameters
Basic Parameters | |
Heating |
HR |
Dimension |
L530mmx W385mmx H500mm |
Weight |
16kg |
Total weight |
About 20 kg, vary with the differen need of the users |
Electrical Parameters | |
Power |
220V AC |
Upper Heating |
HR |
Size of upper (IR) |
--------------- |
Consumption of upper (IR) |
--------------- |

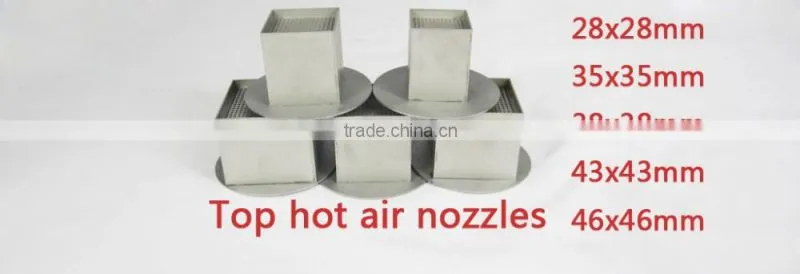

Nozzle of upper(HR) |
5 pcs: 28x28, 35x35, 38x38, 43x43, 46x46 mm |
Consumption of upper (HR) |
650W |
Bottom Heating |
HR |

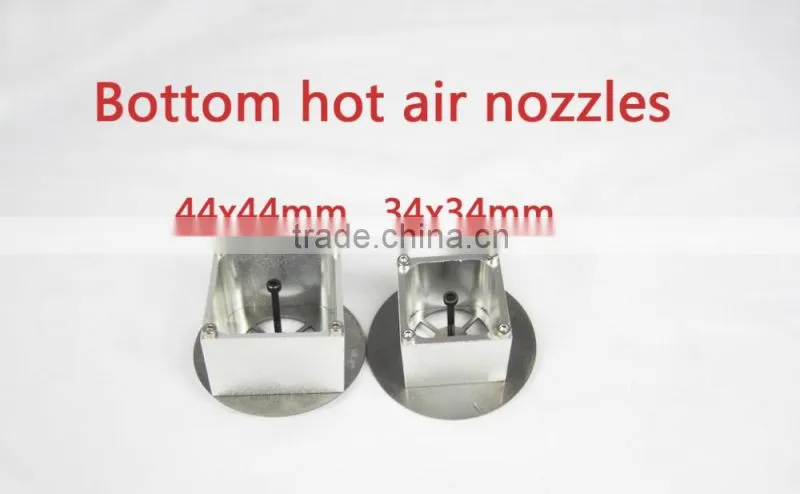

Nozzle of bottom(HR) |
2 pcs: 34x34, 44x44 mm |
Consumption of bottom (HR) |
650W |

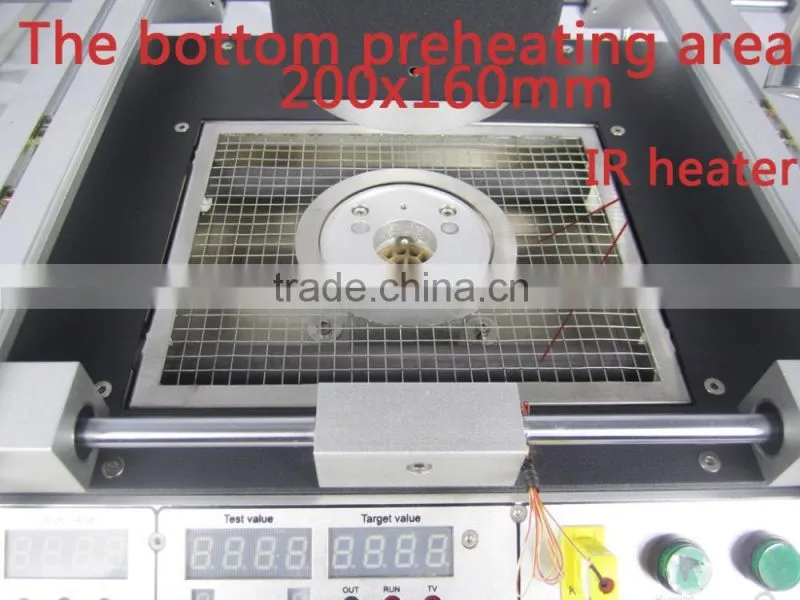

Bottom Preheat |
IR |
Consumption of preheat (IR) |
700W |
General power |
2.3KW |

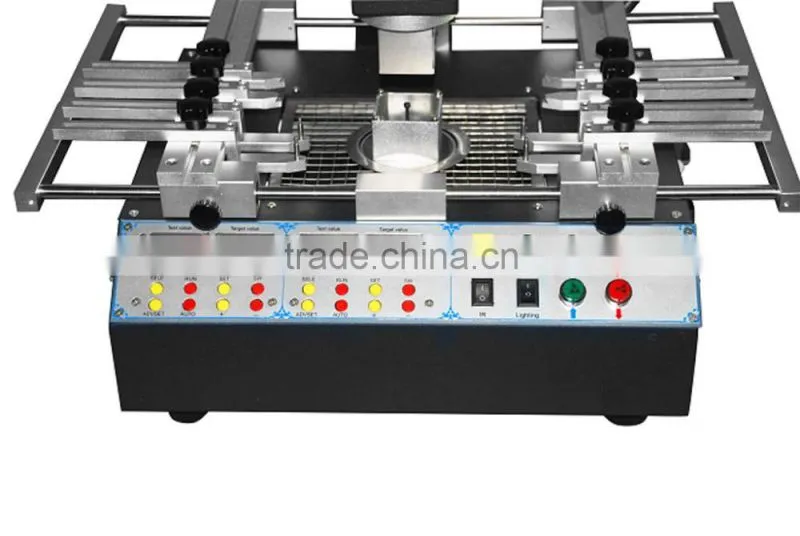

Temperature Control | |
Control mode of Upper |
Independent temperature control, high-precision closed-loop |
Control mode of Bottom |
Independent temperature control, high-precision closed-loop |
Rework Function | |
SMD |
Suit for welding, remove or repair packaged devices |
Size of applicable chips |
≤80mm x80 mm |
Size of applicable PCB |
≤415mm x325mm |
Packing list:
1× bga rework station
7× nozzles: 5 pcs top(28,35,38,43,46mm) and 2 pcs bottom(34,44mm);
1× power cable
4× wrench
1× k-type thermocouple
1× AL tape
Feature
1.CE Certification
2.HR7000 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
3.HR7000 innovative designs an effective solution to general of infrared rework station slow repair. Very good with lead-free soldering rework.
4.very easy for operation and use, not need the computer;
5.It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.
6.The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.
7.Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn't mixed and disorderly of cables.
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
