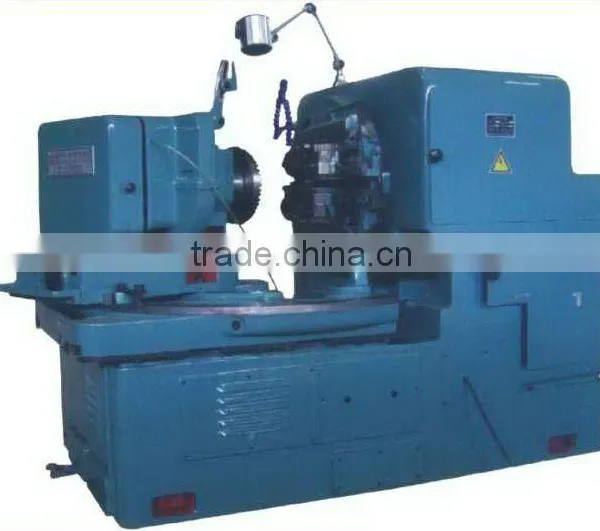

Help CenterPLC Control Straight Bevel Gear Generator
Related Products
-
Double Cutter Head Type Straight Bevel Gear GeneratorUS$ 120,000 - 150,000MOQ: 1 Piece -
200mm Semi-automatic Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Piece
-
500mm Precision Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Piece
-
800mm Precision Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Piece
-
1250mm Gear Hobbing MachineUS$ 100,000 - 200,000MOQ: 1 Piece
Specifications
It is a semi-automatic machine for processing straight bevel gear controlled by PLC.It is a semi-automatic machine for processing straight bevel gear, applicable to batching and small-scale manufacturing of automobile, tractor, aviation and machine tools.
It uses two standard gear cutters and applies the theory of “ Imagined Flat Gear” in processing. Both of the fine and rough cutting can be carried out on this machine. Whe applying the rough cutting means, switch the button to "Rough Cutting” position and lock the swing lock tightly to prevent its rolling cutting movement. While carrying out the fine cutting, switch the button to “Fine Cutting” position and release the swing lock to allow the mutual rolling between the cutter and the gear blank. After each cutting action, the gear blank will exit from the cutting position, and the swing table will return rapidly. At the same time, the dividing mechanism automatically turns to next teeth cutting position. The machine will stop automatically after all the gear is cutting over. The machine is controlled by PLC.
Model |
900-1020 |
Max. diameter of workpiece |
500mm |
Module range |
1.5-10mm |
Gear ratio (90° shaft angle) |
1:8 |
Max. pitch cone distance |
250mm |
Max. teeth width |
90mm |
Teeth number range |
12-200 |
Distance from spindle end to centerline |
75-370mm |
Bigger diameter of spindle taper hole |
100mm |
Taper |
1:20 |
Taper depth |
185mm |
Max. adjustable gear angle of the cutter frame |
8° |
Range of the pitch cone angle |
7°8′-82°52′ |
Cutter stroke |
85-348 (13 steps) |
Time for each teeth |
13-166 |
Max. table swing angle |
±30° |
Main motor |
3.0Kw |
Hydraulic motor |
1.5Kw |
Cooling pump motor |
0.125Kw |
Packing dimension |
2950×1730×2165mm |
Machine weight |
5000kg |
