Help CenterVertical Machining Center 800*460*500mm
Related Products
-
Universal Turrent CNC Milling Machine 254*1270mmUS$ 10,000 - 100,000MOQ: 1 Piece -
Universal Turrent CNC Milling Machine 305*1500mmUS$ 10,000 - 100,000MOQ: 1 Piece
-
Vertical Machining Center With Full-closed Safety CoverUS$ 50,000 - 100,000MOQ: 1 Piece
-
Vertical Machining Center With Interchangable WorktableUS$ 80,000 - 100,000MOQ: 1 Piece
-
Horizontal Machining Center 600*530*530mmUS$ 80,000 - 100,000MOQ: 1 Piece
Specifications
3 Axis super-width hardened guideway for good regidity.High speed, high accuracy spindle
FANUC-Oi system and main servo motor

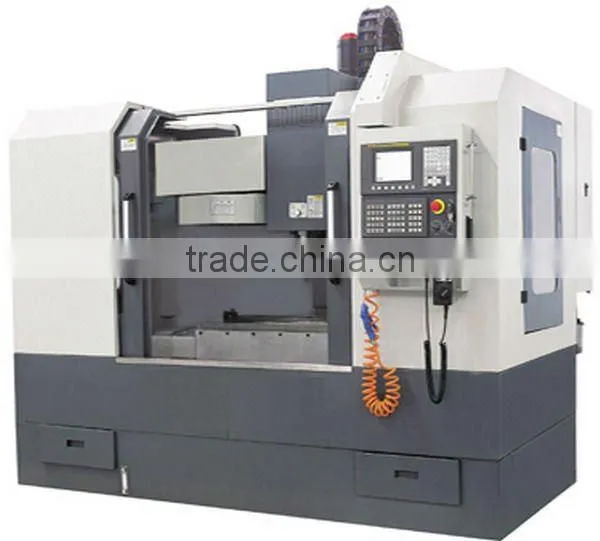

Vertical Machining Center
Order No. |
905-0104 |
Table size |
800×460mm |
Table travel |
800×460mm |
Spindle travel |
500mm |
T-slot (No.-width-distance) |
3-18-150mm |
Max. table load |
500kg |
Distance from spindle nose to table |
150-650mm |
Distance from spindle center to column |
510mm |
Spindle taper |
BT40 |
Spindle speed range |
40~6000rpm |
Spindle motor power |
(AC servo) 7.5kw |
Feeding speed |
2~4000mm/min |
Rapid feed speed |
18m/min |
Positioning accuracy |
±0.015mm |
Repeated positioning accuracy |
±0.0075mm |
Tool storage |
16pcs |
Max. tool size |
130×250mm |
Max. tool weight |
8kg |
Min. time of tool change |
3sec. |
Overall dimension |
2500×2260×2300mm |
Machine weight |
4560kg |
Standard equipment:
* FANUC 0i mate-MD CNC System;
* Carousel type ATC;
* RS232 Communication port.
Optional equipment:
* SIEMENS 802C CNC System;
* Arm type ATC;
* The Forth axis;
* Chip conveying system.
