Specifications
Material:Malleable Iron,Technology:CastingSurface:electrical galv
Timely DeliveryCompatitive Price
Considerate service

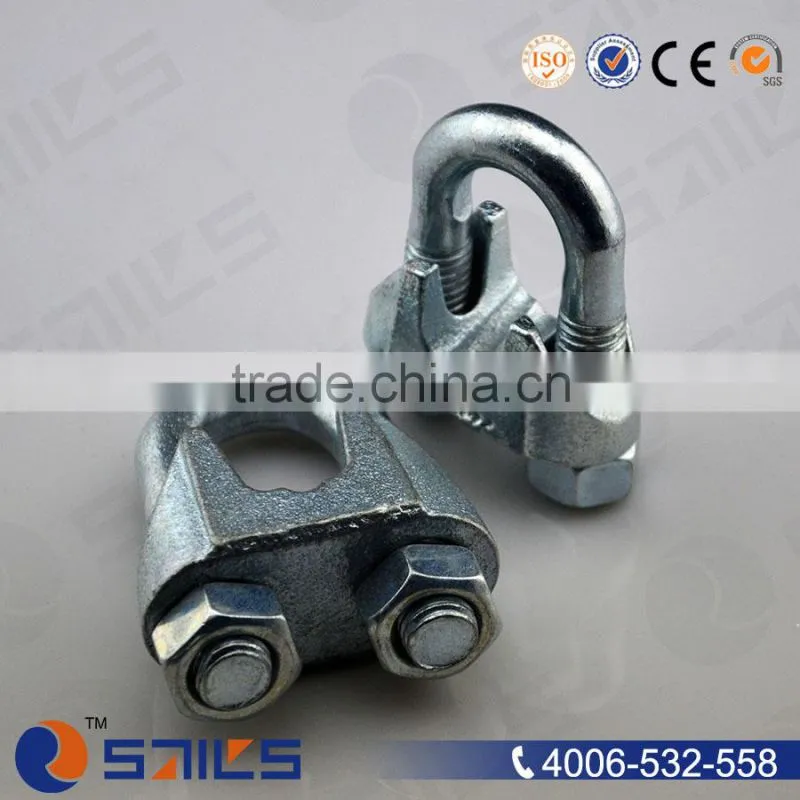

US Type Malleable Industrial Wire Rope Clamp
Main Features:
1. US Type Malleable Industrial Wire Rope Clamp
2. Size of wire rope clip: 1/16-1-1/4
3. Material of Wire Rope Clips : Malleable Iron
stainless steel 304, 316
4. Surface: hot dipped galvanized, electro galvanized,self colored
5. Customers' special need is welcomed.
6. Timely Delivery, High Quality and Good price, Satisfying Service
7. Remark: put in cartons then in the pallet or as your requirements
8. delivery time: within 20 days after order confirmed
9. payment terms: L/C, T/T,Western Union,Paypal

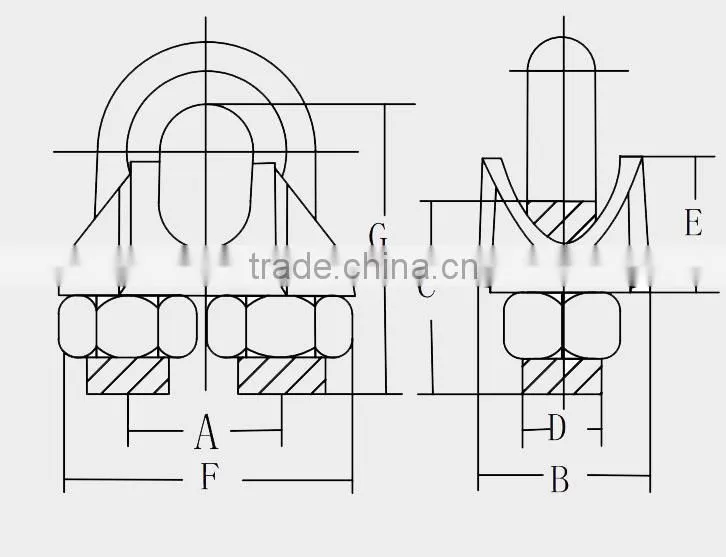

| size | A | B | C | D | E | F | G | 100/WT |
| in | KG | |||||||
| 1/8 | 11 | 14 | 14 | 10-24 | 10.8 | 22 | 20 | 1.5 |
| 3/16 | 13.5 | 15 | 16 | 1/4-20 | 13 | 26 | 24 | 3 |
| 1/4 | 17 | 18.5 | 20 | 5/16-18 | 15 | 32 | 31.5 | 5.18 |
| 5/16 | 18.3 | 20 | 22 | 5/16-18 | 16 | 35 | 34 | 5.95 |
| 3/8 | 22.5 | 22 | 27 | 3/8-16 | 22 | 40.5 | 41.8 | 10.01 |
| 7/16 | 24 | 23 | 30 | 3/8-16 | 22 | 43 | 42.8 | 11.43 |
| 1/2 | 27 | 26 | 35 | 7/16-14 | 23.3 | 49 | 53.9 | 17.42 |
| 9/16 | 30 | 26.5 | 40 | 1/2-13 | 27 | 52.5 | 54.7 | 22.56 |
| 5/8 | 33 | 28.5 | 40 | 1/2-13 | 28 | 57.5 | 59.2 | 24.84 |
| 3/4 | 34.5 | 32 | 42 | 9/16-12 | 34 | 61 | 68.7 | 36.53 |
| 7/8 | 41 | 37 | 46 | 5/8-11 | 38 | 71 | 78 | 53.23 |
| 1 | 45.5 | 42 | 55 | 5/8-11 | 43 | 77.5 | 87.5 | 68.32 |
US Type Malleable Industrial Wire Rope Clamp
US Type Malleable Industrial Wire Rope Clamp
Free samples can be send to you to check the quality.If convenient,welcome to visit our factory.
We also have the full after-sales service. We try our best to help all customers purchase satisfied rigging hardwares.
US Type Malleable Industrial Wire Rope Clamp
