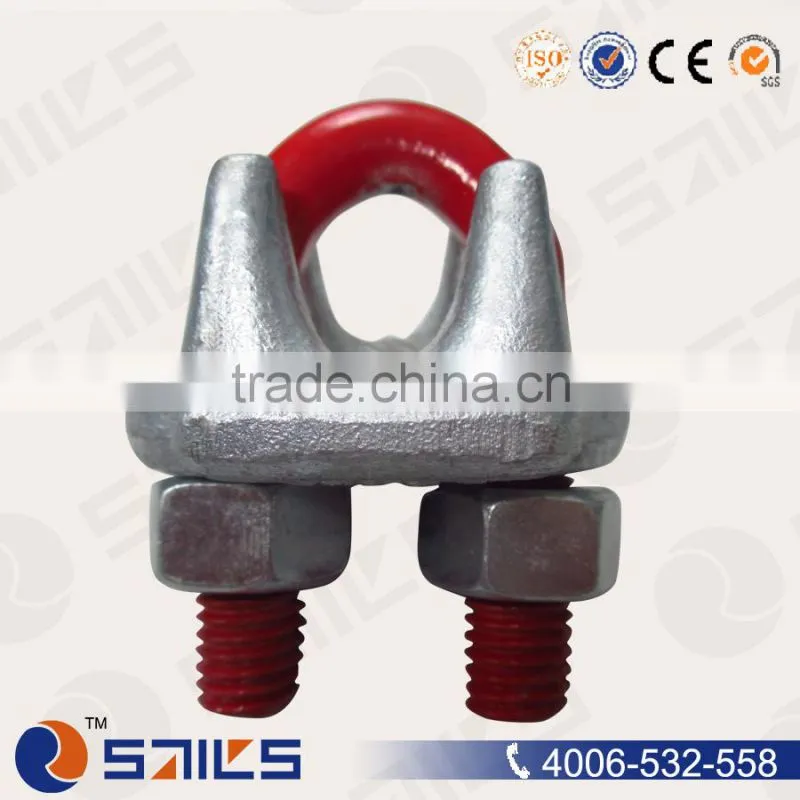

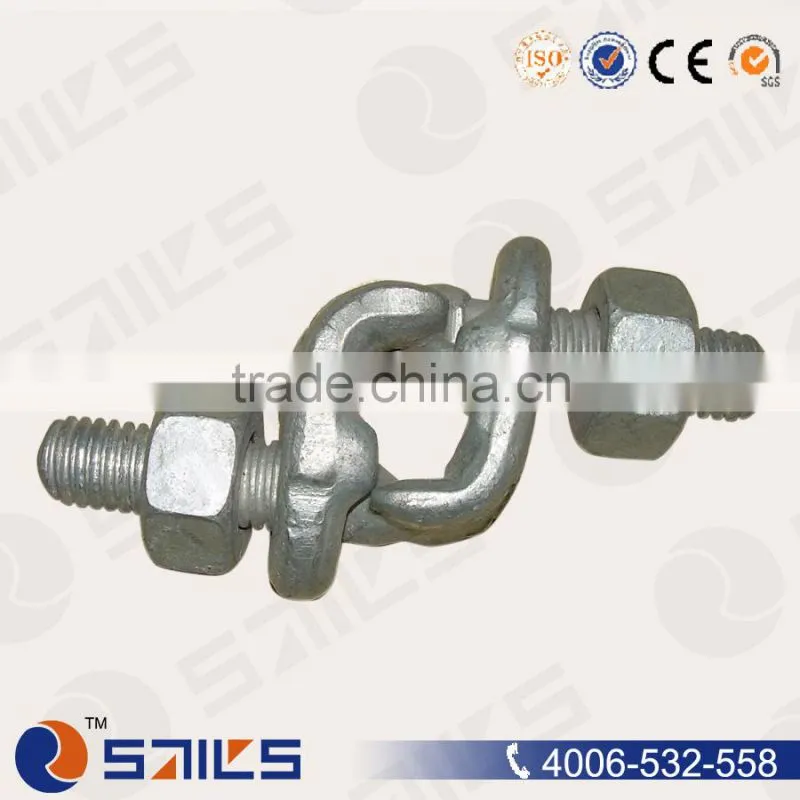

US Type Wire Rope Clips Fist Grip ClipsUS$ 0.1 - 100MOQ: 1 Ton
-
Hot Sale Electro Galvanized Malleable Cast Iron Wire Rope ClipUS$ 0.018 - 2.678MOQ: 1 Piece
Specifications
high quality din1142 wire rope clamp1.Material:Casting Iron,Q235
2.Size:6-50mm
3.Surface:Electro Galv.
high quality din1142 wire rope clamp
1.Material:Casting Iron,Q235
2.Size:6-50mm
3.Surface:Electro Galv.
4.Long service life
Application
Wire Rope Clamps or Wire ROpe Clips are mainly used for temporary connection and fixtion of steel wire ropes.
It is a clampes widely used in lifing operation.
1.Optionals :locknuts,surface treatment,special specifications can be produced according to customers'requirements
2.Commodity Name:DIN1142 malleable wire rope clip
3.Category :Rigging hardware,Rigging
4.Origin :China mainland
5.Other Standard :DIN ,JIS,US
6.Material :stainless steel,carbon steel,
7.Surface :hot dipped galvanized,electro galvanized,self-colored
8.Size :5mm-40mm
9.NW(kg/100pcs) :2.2KG-260KG
10.packing :carton,woven bag or gunny on the pallet or as your requirements
11.Delivery Time :within a month;FOBQingdao
12.payment term :L/C,T/T
13.Supply Ability :150-200ton/month
14.Advantage :about10 years production experience,high quality with competing prices;the perfect after-sales service

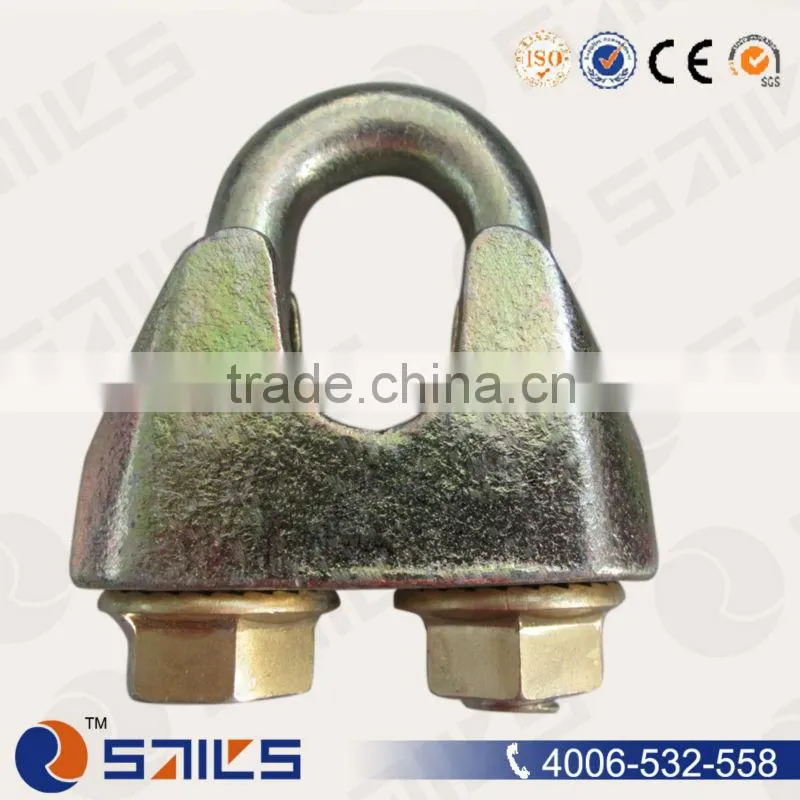

DIN1142 malleable wire rope clip
| Size | A | B | C | D | E | F | G | 100/WT |
| mm | kg | |||||||
| 5 | 12 | 13 | 13 | 5 | 13 | 25 | 20 | 2.08 |
| 6.5 | 14 | 16 | 17 | 6 | 14 | 30 | 26 | 4 |
| 8 | 18 | 20 | 20 | 8 | 18 | 39 | 33 | 8.2 |
| 10 | 20 | 20 | 24 | 8 | 21 | 40 | 38 | 9.2 |
| 13 | 17 | 28 | 30 | 12 | 29 | 55 | 52 | 27.5 |
| 16 | 32 | 32 | 35 | 14 | 35 | 64 | 64 | 43 |
| 19 | 36 | 32 | 36 | 14 | 40 | 68 | 69 | 49 |
| 22 | 40 | 34 | 40 | 16 | 44 | 74 | 80 | 68 |
| 26 | 46 | 38 | 50 | 20 | 51 | 84 | 91 | 117 |
| 30 | 54 | 41 | 55 | 20 | 59 | 95 | 107 | 140 |
| 34 | 60 | 45 | 60 | 22 | 67 | 105 | 119 | 213 |
| 40 | 68 | 49 | 65 | 24 | 77 | 117 | 135 | 268 |

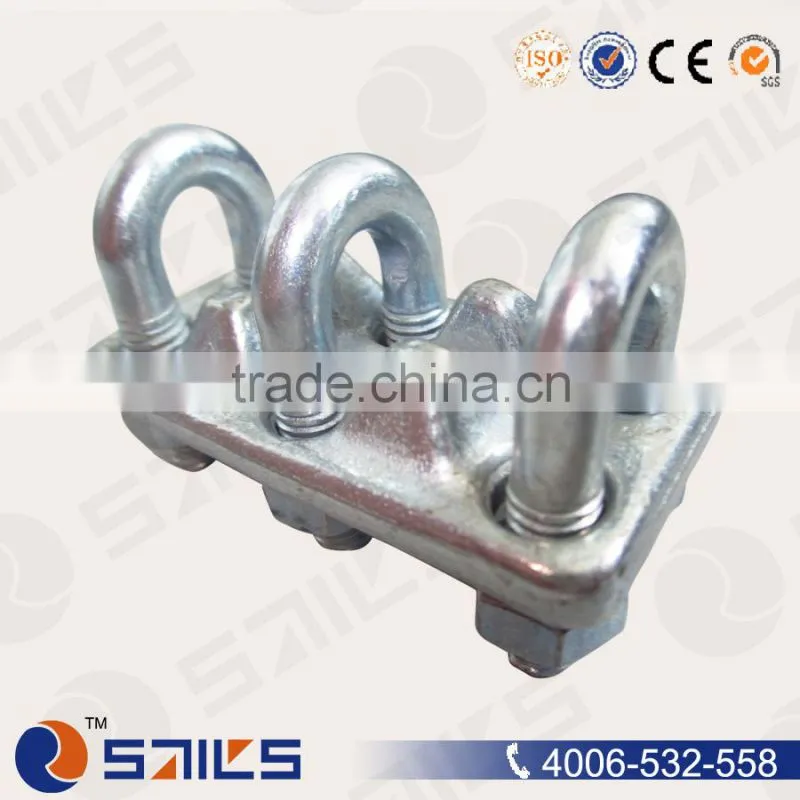

The other Kinds of Clamps
Send Inquiry to This Supplier
You May Also Like
-
High Quality Galv. Din741 Malleable Iron Wire Rope ClipsUS$ 0.1 - 100MOQ: 1 Ton
-
China 5mm to 40mm Galvanised Din1142 Malleable Wire Rope ClipsUS$ 0.1 - 25MOQ: 1 Piece
-
Din741 Malleable Iron Wire Rop ClampUS$ 0.1 - 12MOQ: 50 Pieces
-
Din741 Electric Galvanized Casting Type Wire Rope ClampUS$ 0.1 - 12MOQ: 50 Pieces
-

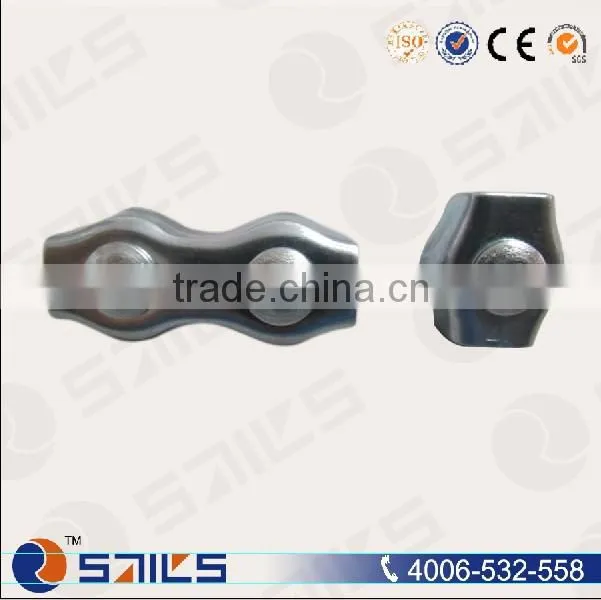

Galvanized Simplex and Duplex Wire Rope ClipsUS$ 0.3 - 25MOQ: 50 Pieces
-
