China Supplier Gold Separating Machine Trommel Screen

China Supplier Gold Separating Machine Trommel Screen photo-1
China Supplier Gold Separating Machine Trommel Screen photo-2
China Supplier Gold Separating Machine Trommel Screen photo-3
China Supplier Gold Separating Machine Trommel Screen photo-4
China Supplier Gold Separating Machine Trommel Screen photo-5
China Supplier Gold Separating Machine Trommel Screen photo-6
US$ 1,200 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, gold washing
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/ Tianjin/ negotiate
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, gold washing
Place of Origin Henan, China
Brand Name Jinma
Model Number GTS series gold trommel screen
Voltage 220V/380V
Power(W) 3-30kw
Dimension(L*W*H) depend model
Weight 2.2-12.8(WT)
Certification ISO9001
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

  China Supplier Gold Separating Machine Trommel Screen

China Supplier Gold Separating Machine Trommel Screen

Product Description

1.The operation principle of gold trommel screen

The drum screening machine consist of hexagonal cylinder ,frame ,funnel and motor these five parts. The crushed ore entered the roller ,on the one hand ,they will be selected as the roller’ rotation .On the other hand ,the ore  with intensity will forward flow as the slope of roller and will be selected through different screens. The small fall into the funnel, then will be moved out by people or moved to the finished heap .



China Supplier Gold Separating Machine Trommel Screen



2.Function of gold trommel screen

The drum screening machine is suitable for high way, railway,building departments .They have the materials to be selected such as ore, coal, pebble, gravel, etc. Vibration form and sieve size can be designed and made to meet the client's need .

China Supplier Gold Separating Machine Trommel Screen



3.Features of our gold trommel screen

1>.Screen is not to be blocked

2>.Simple structure, easy to mainntaince

3>.Stable operation, low noise, lang operating time

4>.The high reliability, less one-time investment.

5>.Using special screen, large screening efficiency

6>. It is with wheel type chassis, can be driven by vehicles and move easily.



China Supplier Gold Separating Machine Trommel Screen





4.Technical parament of gold trommel screen

Model

Capacity

(t/h)

Power

(kw)

Drum

diameter

(mm)

Drum

length

(mm)

Feed size

(mm)

Discharge

 size(mm)

Dimension

(L*W*H)

(mm)

Weight

(kg)



GTS1015

50

3.0

1000

1500

≤300

0-100

2600*1400*1700

2200

GTS1020

100

4.0

1000

2000

≤300

0-100

3390*1400*2140

2800

GTS1225

160

5.5

1200

2500

≤300

0-100

4146*1600*2680

4200

GTS1530

250

7.5

1500

3000

≤300

0-100

4460*1900*2820

5100

GTS1545

350

11

1500

4500

≤400

0-100

5960*1900*3080

6000

GTS1848

450

15

1800

4800

≤400

0-100

6500*2350*4000

7500

GTS2055

600

22

2000

5500

≤400

0-100

7500*2550*4800

9600

GTS2265

800

30

2200

6500

≤400

0-100

8500*2750*5000

12800



5.Pictures show of gold trommel screen

1>The fixed gold trommel screen made by Jinma

China Supplier Gold Separating Machine Trommel ScreenChina Supplier Gold Separating Machine Trommel Screen

China Supplier Gold Separating Machine Trommel Screen

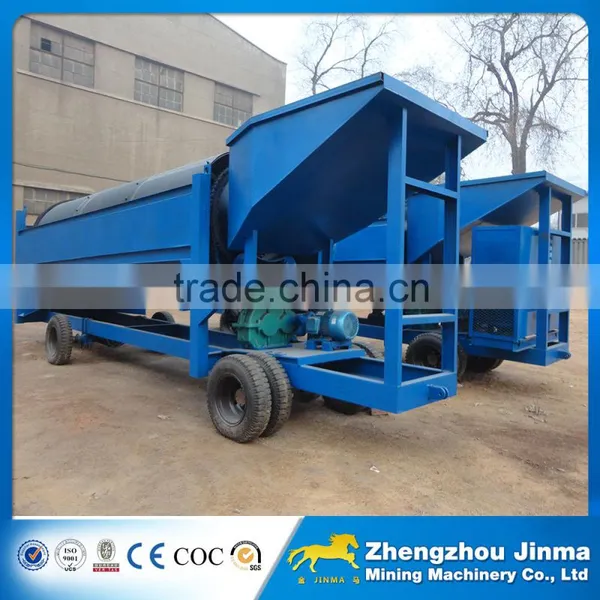

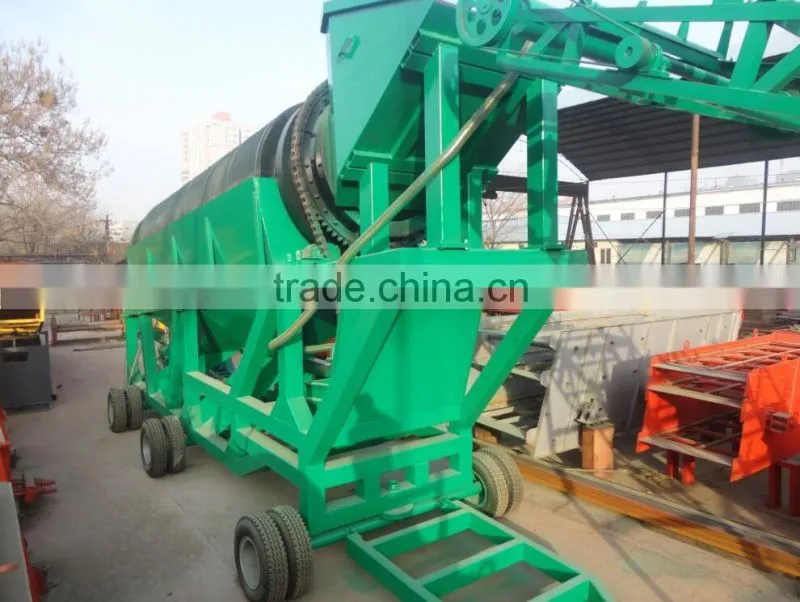

2>Mobile gold trommel screen, it is very convenient to move in site
China Supplier Gold Separating Machine Trommel ScreenChina Supplier Gold Separating Machine Trommel Screen

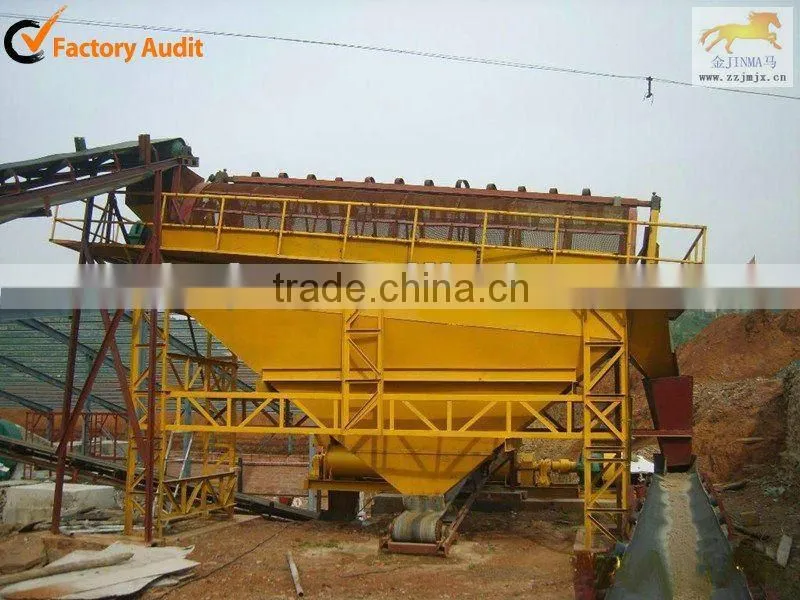

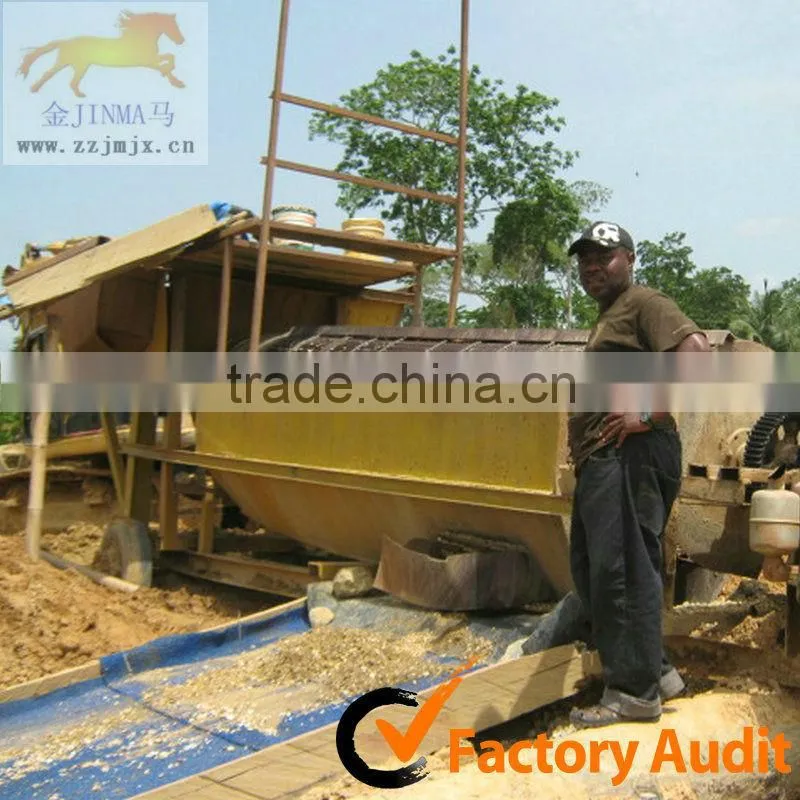

3>Our gold trommel screen in the site of Africa

China Supplier Gold Separating Machine Trommel Screen

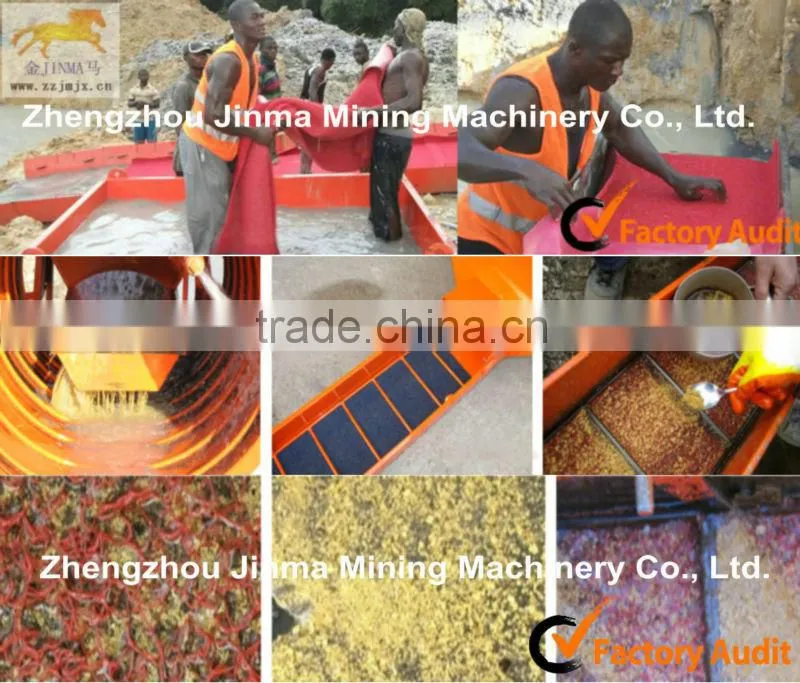

4>We can see that  the gold ore  is very clear after sieved

China Supplier Gold Separating Machine Trommel Screen
Packaging & Shipping

We adopt standard containers according the models of gold trommel screen , bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.

China Supplier Gold Separating Machine Trommel ScreenChina Supplier Gold Separating Machine Trommel Screen

Our Services

1.Before sales service : We will recommend suitable model of gold trommel screen according to your demand. Due to we are original equipment manufacturer, if you have some doubt

about our products,we can give you the reply timely 2.Sales service : We will make the products according your requirement, such as the model , color,

motor and so on. And packing the ball mill in standard container or as your required

3.After sales service :We provide 2 years warrants & technical support to ensure the machine run

smoothly .

Company Information

    Zhengzhou Jinma Mining Machinery Co.,Ltd was established in 1976. Our company specializes in manufacturing large and medium-size crusher, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Our company covers an area of 7000 square meters. Now, our annual export sales about six million USD
   Our company has passed ISO9001:2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. Our product has exporter over 50 countries, like Chile, Peru, India, Pakistan, Iran, Russia, Indonesia, South Africa, Turkey Malaysia, Tanzania, etc.

Our certification and clients

China Supplier Gold Separating Machine Trommel Screen

China Supplier Gold Separating Machine Trommel Screen

FAQ

1.How long is the delivery time of your equipment?

The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.

2.How long is the equipment warranty period?

Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.

3.Can you provide wearing parts?

We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.

4.Can you give me a solution and quotation?

Of course, to provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.



If you want to learn more about the products,you could contact me.



Name Cathy Chen
Skype cherish2228617703
Mobile 86-13939060840



Looking forward to having a win-win cooperation with you.
