A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.



Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

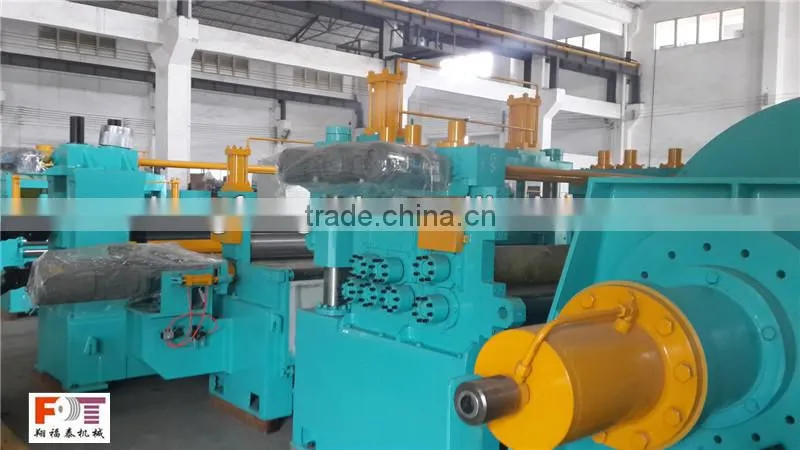

A slitting line is composed of:

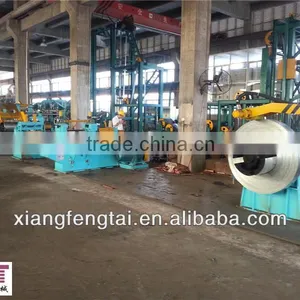

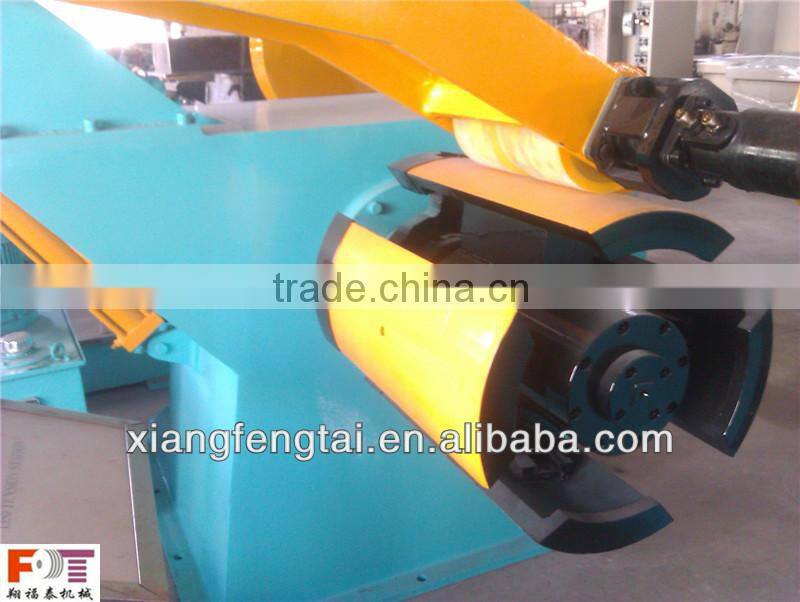

1.Loading coil car  2.Uncoiler  3.Straightener device   4.Pinch roll&leveler & hydraulic shearer   5.Loop pit   6.Side guide   7.Slitter   8.Transition platform & scrap winder   9.Loop pit   10.Tension station   11.Recoiler  12.Unloading coil car

Hereby take as an example a thin strip slitting line used for the uncoiling, slitting and recoiling of cold-rolled carbon steel, hot galvanized steel strip with thickness range of 0.3-3.0mm and width range of 800-1950mm.



Main technical parameter

Material: Cold-rolled, hot-rolled carbon steel, galvanized steel.

Material thickness:0.3-3.0mm

Material width:800-1950mm

Coil I.D.: Φ508mm/Φ610mm

Coil O.D.: ≤Φ2000mm

Coil weight:20 tons max

Narrowest strip width slit into: 25mm (strip thickness≤1mm)

Width cutting precision: ±0.05mm(strip thickness≤1), ±0.1mm(strip thickness>1.5mm)

Slitting Bur: 0.03minimum, 5% of the trip thickness

No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)

Line working speed: 150m/min max

Total power: Approx.210kw



The parameters mentioned above will vary even for the same model as the specific requirements differ.

Please contact us for more information to suit your specific need.



Below is part of the models designed by FOT slitting.

Model	Strip Thickness	Strip Width	Coil Weight	Speed	Total power	Area Occupied
	(mm)	(mm)	(ton)	(m/min)	(kw)	(m)
FOTZ-450	0.15—3.0	200-420	4 MAX	0—120	55	13X4
FOTZ-650	0.2—3.0	300-620	7 MAX	0—120	96	15X4
FOTZ-850	0.3—3.0	300-800	8 MAX	0—120	100	15X5
FOTZ-1350	0.3—6.0	300-1300	15MAX	0—180	230	20X8
FOTZ-1650	2.0—8.0	600-1600	20 MAX	0—120	380	33X12
FOTZ-2000	2.0—8.0	800-1950	35 MAX	0—120	550	37X17



Composition and flow of a slitting line
