Specifications
coil line for decoiling slitting and recoilingCoil width: 300-2000mm
Coil thickness: 0.3-3mm
Coil weight: 5-35 tons

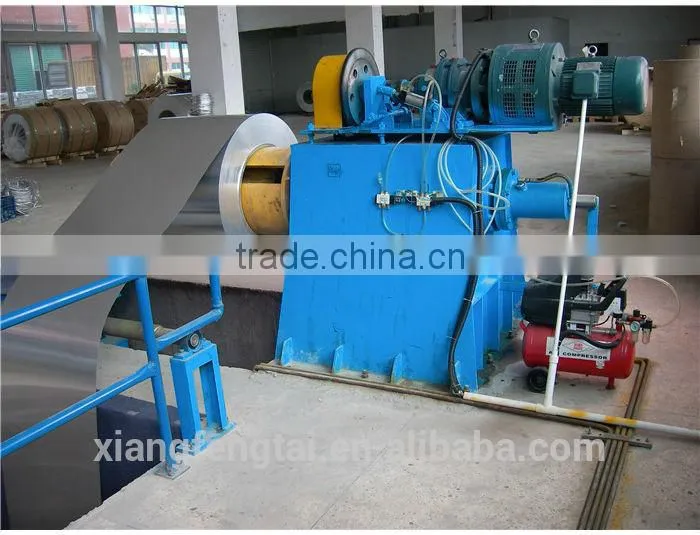

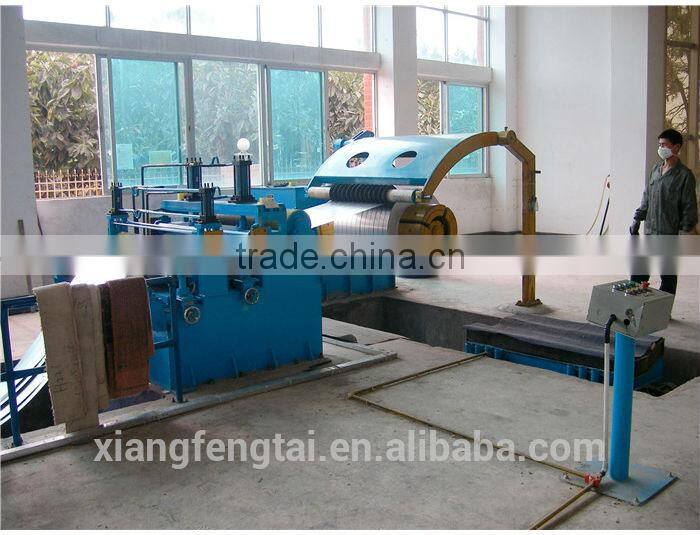

coil line for decoiling slitting and recoiling

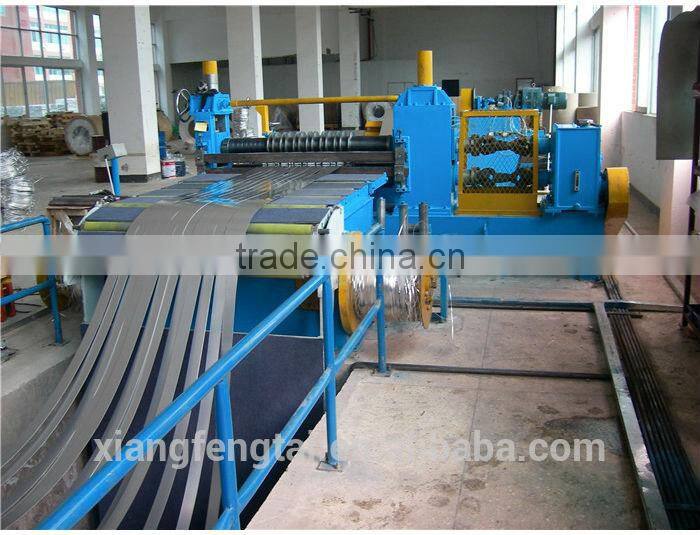

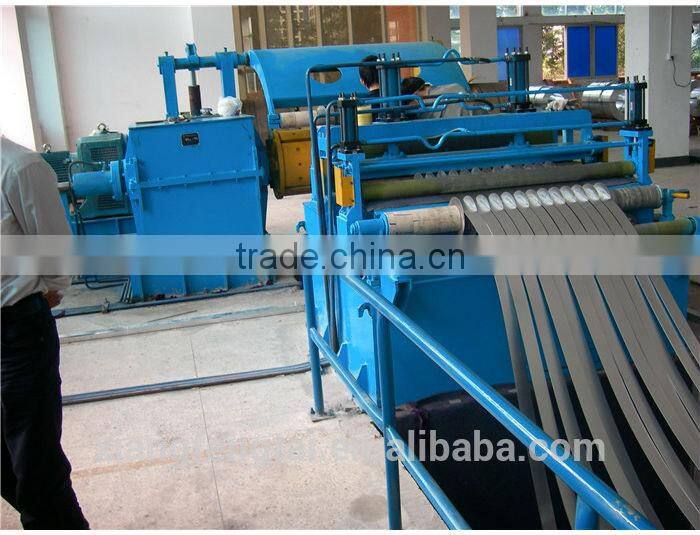

Cutting large coil into smaller coils
Model |
Thickness(mm) |
Width(mm) |
No. Of cuts |
Accuracy(mm) |
Speed |
Weight(t) |
FOTZ-1*650 |
0.1-1 |
300-620 |
30-8 |
±0.05 |
0-120 |
7 |
FOTZ-1*850 |
0.1-1 |
300-800 |
30-8 |
±0.05 |
0-120 |
8 |
FOTZ-1*1350 |
0.1-1 |
400-1300 |
30-8 |
±0.05 |
0-120 |
15 |
FOTZ-2*650 |
0.2-2 |
300-620 |
30-8 |
±0.05 |
0-120 |
7 |
FOTZ-2*850 |
0.2-2 |
300-800 |
30-8 |
±0.05 |
0-120 |
8 |
FOTZ-2*1350 |
0.2-2 |
400-1300 |
30-8 |
±0.05 |
0-120 |
15 |
FOTZ-3*850 |
0.3-3 |
300-800 |
30-8 |
±0.05 |
0-120 |
8 |
FOTZ-3*1350 |
0.3-3 |
400-1300 |
30-8 |
±0.05 |
0-120 |
15 |
FOTZ-3*1650 |
0.3-3 |
400-1600 |
30-8 |
±0.05 |
0-120 |
20 |
FOTZ-3*2000 |
0.3-3 |
500-1950 |
30-6 |
±0.05 |
0-120 |
35 |
FOTZ-4*1350 |
0.5-4 |
400-1300 |
30-6 |
±0.05 |
0-120 |
15 |
FOTZ-4*1650 |
0.5-4 |
400-1600 |
30-6 |
±0.05 |
0-120 |
20 |
FOTZ-4*2000 |
0.5-4 |
500-1950 |
30-6 |
±0.05 |
0-120 |
35 |
FOTZ-6*1650 |
0.6-6 |
400-1600 |
30-5 |
±0.08 |
0-120 |
20 |
FOTZ-6*2000 |
0.6-6 |
800-1950 |
30-5 |
±0.08 |
0-120 |
35 |
Line composition:

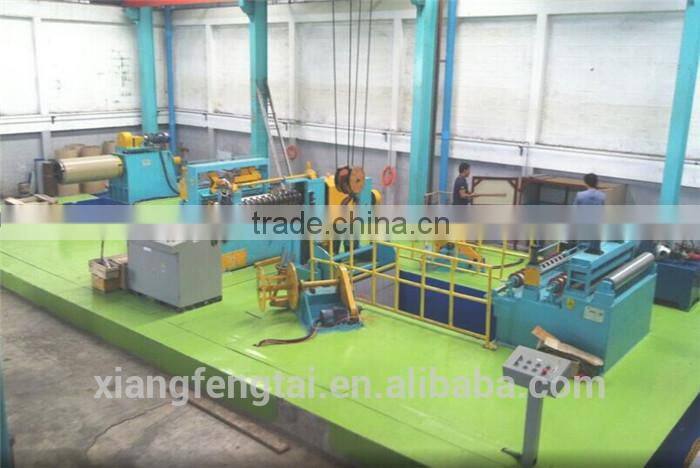

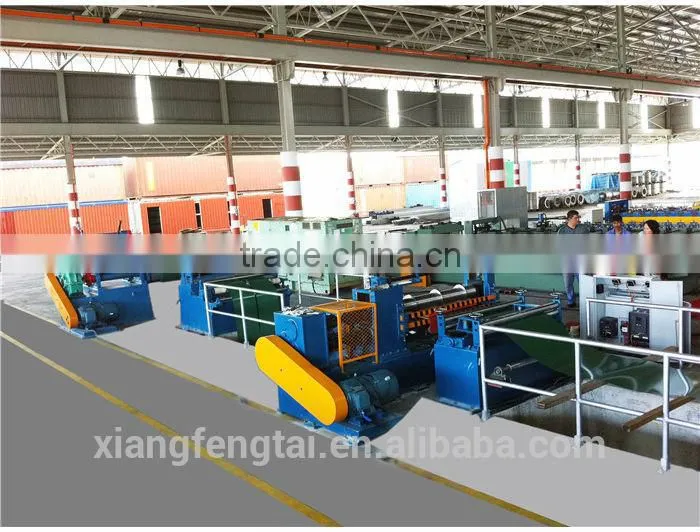

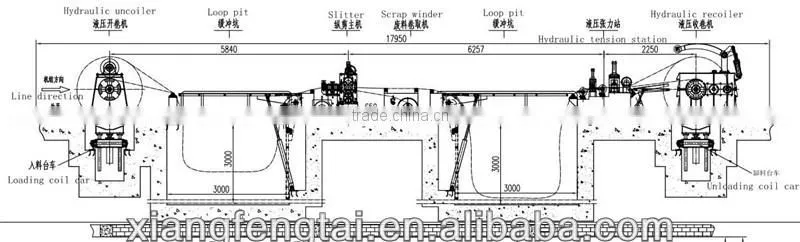

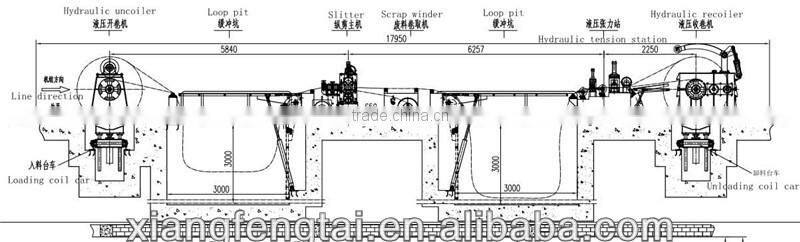

Entry coil car - Decoiler - Loop bridge - Side guider - Slitter head - Scrap winder - Loop bridge - Tension station - Recoiler - Exit coil car
Hydraulic system
Electrical system
Technical parameters:
Material: cold rolled,hot rolled carbon steel,stainless steel,galvanized steel,silicon steel coil,p/o coil,aluminium coil
Width: Up to 2000mm
Thickness: 0.2-2.0mm, 0.3-3.0mm, 1.0-6.0mm, 2.0-12.0mm
Max. number of slits: 2-30
Max. Coil weight: 35 tons max
Coil I.D.: 508mm/610mm/760mm
Coil O.D.: 2000mm max
Arbor diameter: 180mm / 220mm
Drive: 380V/50Hz/3PH
Decoiling mode: Over/Under
Direction: According to requirement
Line speed: Up to 120 m/min
Slitting burr: 5% of the thickness of material
