Portable home generator 5KVA CE Approved
Specifications
1.Remote control,ATS.digtal panel.
2.Factory price,high quality
3. Household agricultural industrial
4.Long Life.New Design
5.CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine
6.Ideal for home emergency use or as standby power supply
7.Large fuel tank, ensuring hours of continuous output
8.Advanced direct fuel injection system
9.A variety of specially-designed control panels available for different markets

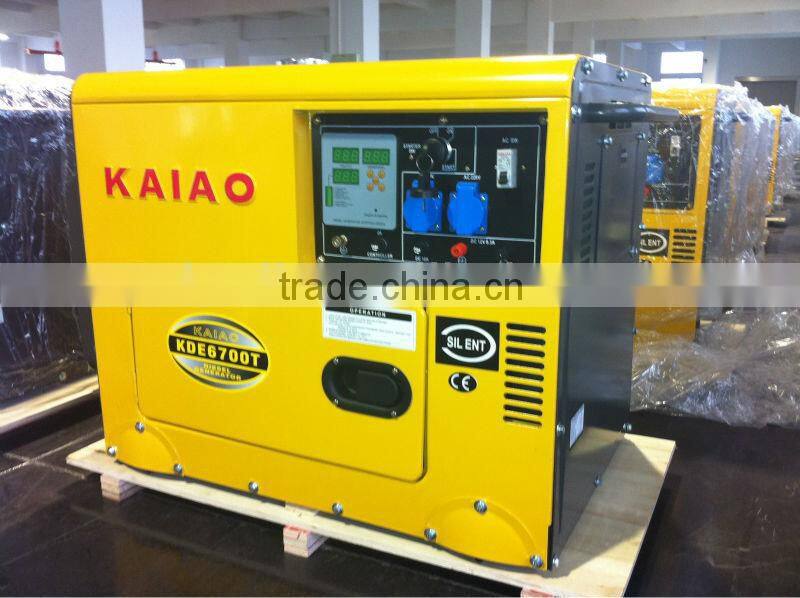

Soundproof Small Generator For Home Use
Air-cooled diesel silent generator
1.Powered by air-cooled 4-stroke diesel engine
2.12-volt DC auxiliary charging
3.Injection nozzle with electric control clique
4.Low oil alert system shuts down the engine automatically
5.wheels for easy move
6.Key operated ignition switch for the standard electric starter
7.Standard equip with 24Ah-30 dry battery
8.Hydraulic-magnetic circuit breaker
9.Large fuel tank,low noise
Sample order is available
Features:
1. Easy to operate and high safty,Electric start large fuel tank with 9.5 hours continuous
2.Precise Machining Technique,Automatic shutdown for low oil pressure
3. Long Life of the Machine
4.Delicate and Beautiful Appearance Design
5. Broader Applicable Scope
6.Good quality and less malfunction
7.Four-stroke diesel internal combustion engine
8.Advanced direct fuel injection system
9.Automatic voltage stabilizer
10.Light weight construction
11.One year warranty
Strong corrosion structure:
1. Cover body is a steel body, the outer paint zinc phosphate, the outermost layer is polyester powder composition, strong corrosion resistance;
2. All the screws are galvanized, highly corrosion resistant performance;
3. All the lock are made of stainless steel;
Operation and maintenance:
1. Is provided with an opening door for installation, maintenance, operation, observation;
2. In the open door and other appropriate position of a control screen observation window, the window monitor control panel;
3. Oil water is conveyed to the soundproof cover outside;
| Diesel generator KDE6500T | ||
| Generator Model | KDE6700T | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 4.5 | 5 |
| Max. Power(KVA) | 5 | 5.5 |
| Voltage (V) | 115/230 | 120/240 |
| Current (A) | 39.1/19.6 | 41.7/20.8 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Singe-phase | |
| Power facter | 1 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 72 | |
| Fuel tank capacity (L) | 15 | |
| Structure | Slient | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| Output terminal post | No | |
| DC12V output | Terminal post | |
| Net weight | 158 | |
| Dimension(L*W*H) | 970*560*770 | |
| Engine Model | KA186FA | |
| Engine Type | Single-cylinder, vertical, air-cooled, direct injection,four-stroke | |
| Bore*stroke (mm) | 86 *72 | |
| Displacement (L) | 0.418 | |
| Power (KW) | 5.7/3000 | 6.3/3600 |
| Fuel consumption rate (g. KW/h) | 275.1 | 281.5 |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
FAQ:
Q:what is your leading time?
A:15-25 days in our normal season, and 30-35days in our busy season.
Q:Is it right to make customer brand name?
A:We can be your OEM manufacture with your authorization of brand.
Q:Where is your loading port?
A:Shanghai, Lianyungang or Ningbo.etc, China port
Q:what are your payment term?
A:30% deposit and balance T/T against by the copy of B/L or L/C at sight,or Alibaba Escrow
Q:What is your company available production capacity?
A:Our company had daily production capacity of one 20GP .Meanwhile,we will has to work increase production capacity in the future.
