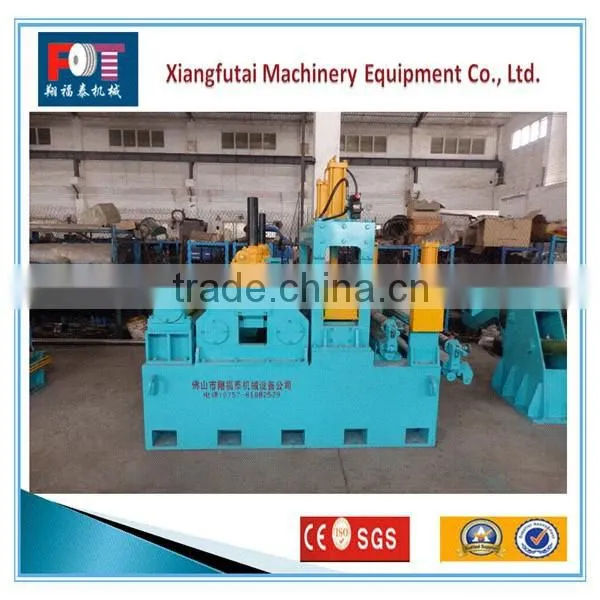

litting machine for galvanized sheet for thick 4mm and width 1300mm

litting machine for galvanized sheet for thick 4mm and width 1300mm

Complete custom built lines to your specifications

Cut-to-length lines are used to cut the levelled metal strip into metal sheet and stack it. Depending on the need and productivity our cut-to-length lines are fitted with stop and go cut-to-length shears or flying cut-to-length shears and the appropriate stacking system.

Depending on the quality needed, the level of flatness and surface finish of the metal sheet, the cut-to-length line can be replenished with our precision levelling machine, edge trimming shear or foil laminating device.

Line composition:

1.Coil car   2.Uncoile  3.Hydraulic feeding pre-calibrating machine   4.Pinch Roll leveler  5.Loop pit  6.Side guide & Measuring roll  7.Hydraulic Shearing machine  8.Roller Conveyor  9.Stacker  10.Electrical Panels & hydraulics

Coil strip of varying widths can be Cut to Lengths according to the desired length requirements. We provide Cut to Length lines for both H.R & C.R Coils with the following range:

Strip width - 150 mm to 1950 mm

Thickness - 0.2 to 12.0 mm

The coil strip is pulled by the leveler assembly & fed into the feeder assembly which is equipped with neoprene coated measuring roll coupled with a high resolution encoder to ensure the exact desired strip length is cut with utmost accuracy. Stacker trolley system with unique design of multiple stackers can be provided for maximum productivity with utmost efficiency by saving on the change over time of the stacks.

Cut to length lines can be designed according to customer's requirement.

Please contact us to know more information to suit your exact need.

Part of the models of cut to length lines designed by FOT.
